Xilinx XC9572XL CPLD Development Board
Xilinx XC9572XL CPLD Development Board
Regular price
$17.00 USD
Regular price
Sale price
$17.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

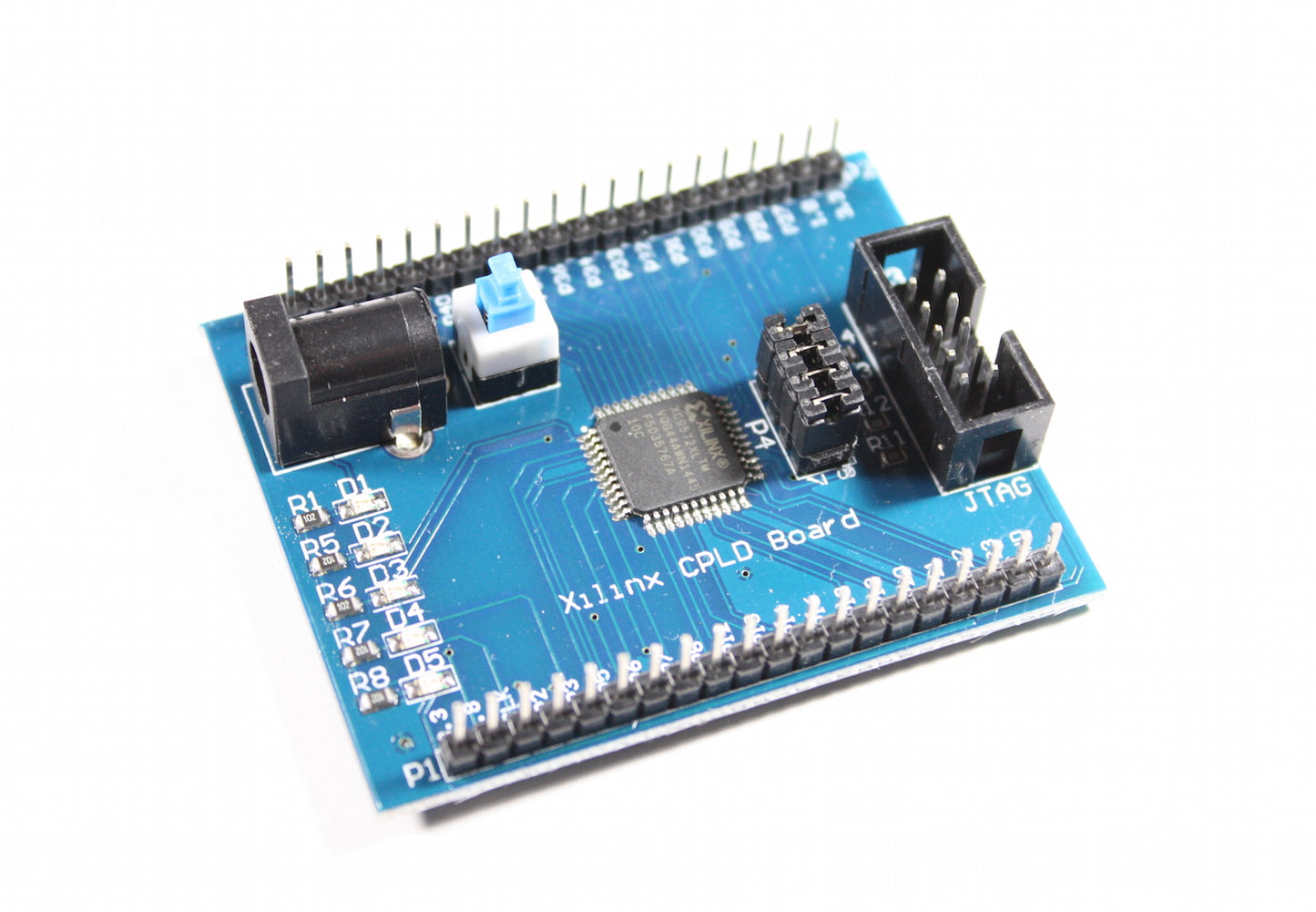

This Xilinx development board is equipped with a XC9572XL CPLD chipset and combines everything for you to get started with your project. The affordable price makes it perfect for starting out your CPLD development journey.
The PCB combines the Xilinx chip with a 50MHz oscillator, a linear 3.3V regulator, a JTAG connector and programmable LEDs. All GPIOs are broken out to the headers.
Specifications:
| Chipset: | Xilinx XC9572XL CPLD Chip |
| Input Voltage: | 5 V |
| Clock: | 50 MHz |
| LEDs: | 5 |
| Connection: | JTAG |
| Dimensions: | 61 mm x 48 mm |
