Uno R3 with ATmega328P and USB Cable, 5V, 16MHz, Arduino Uno compatible
Uno R3 with ATmega328P and USB Cable, 5V, 16MHz, Arduino Uno compatible
Regular price
$10.00 USD
Regular price
Sale price
$10.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

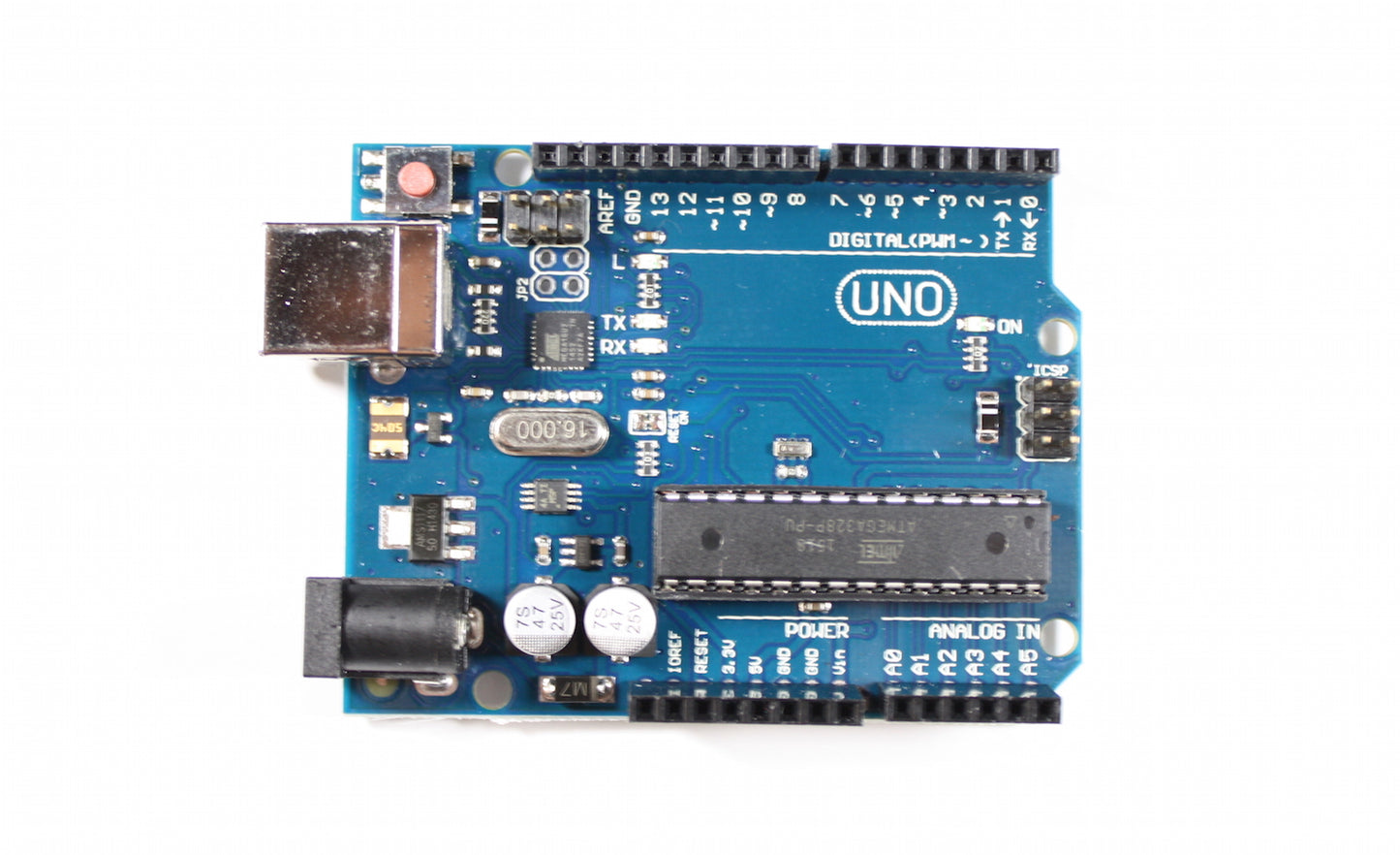

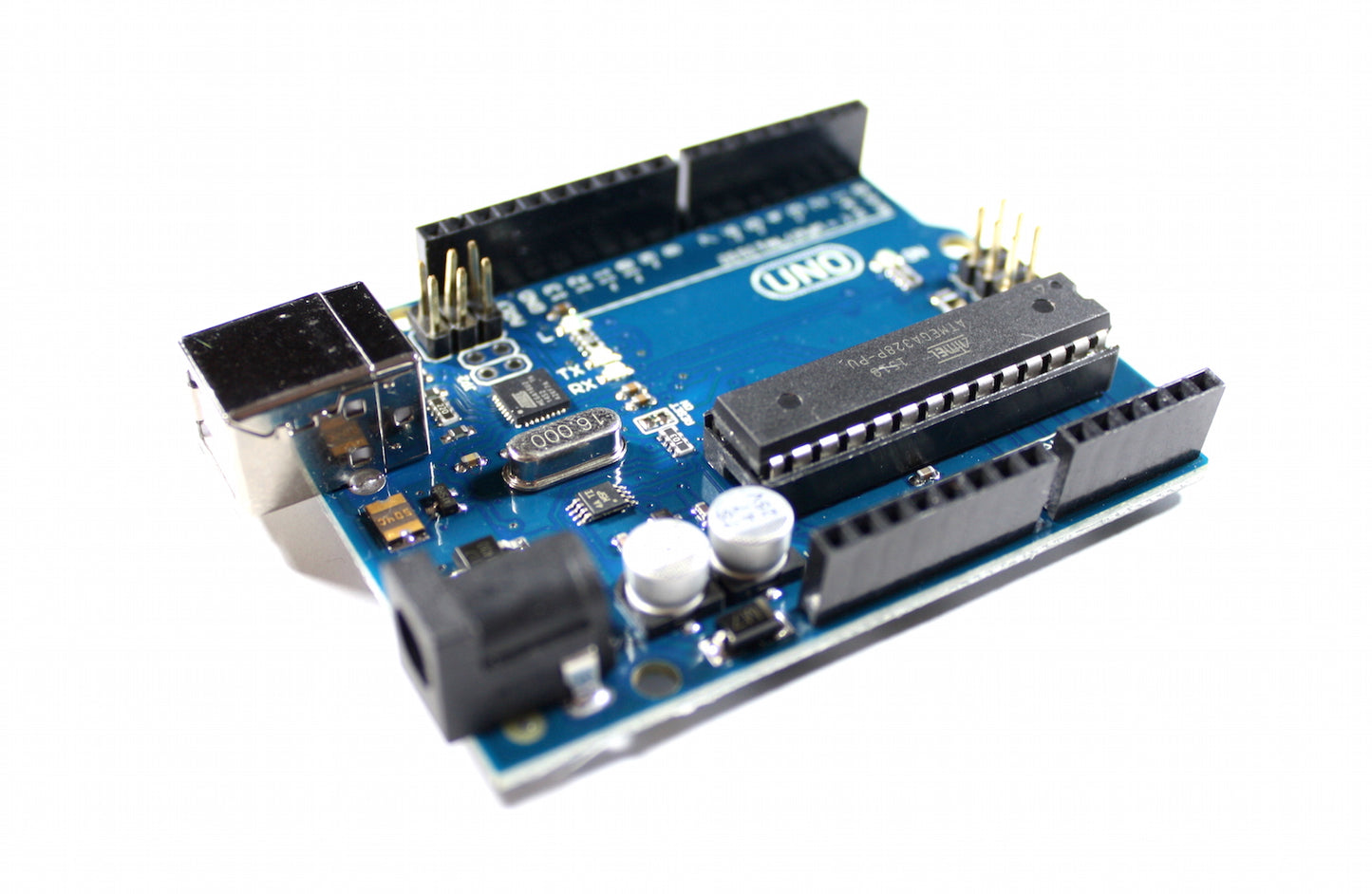

The Uno R3 module is fully compatible to the Arduino Uno R3. It is equipped with a replaceable Atmel AVR ATmega328P microcontroller in DIP package and it uses the Atmel ATmega16U2 controller as USB chipset. There is no need for driver installations. Just connect the board with the included USB cable to your computer and start right away programming and flashing your Uno R3 board.
Specification:
| Microcontroller: | ATmega328 |
| Operating Voltage: | 5 V |
| Input Voltage: | 5 - 12 V |
| Digital I/O Pins: | 14 (of which 6 provide PWM output) |
| Analog Input Pins: | 6 |
| DC Current per I/O Pin: | 40 mA |
| Flash Memory: | 32 KB (of which 0.5 KB used by bootloader) |
| SRAM | 2 KB |
| EEPROM: | 1 KB |
| Clock Speed: | 16 MHz |
