Uno SMD R3 Module with ATmega328P, 5V, 16MHz, Arduino Uno compatible

Uno SMD R3 Module with ATmega328P, 5V, 16MHz, Arduino Uno compatible

Regular price $9.00 USD
Regular price Sale price $9.00 USD
Sale Sold out
Shipping calculated at checkout.

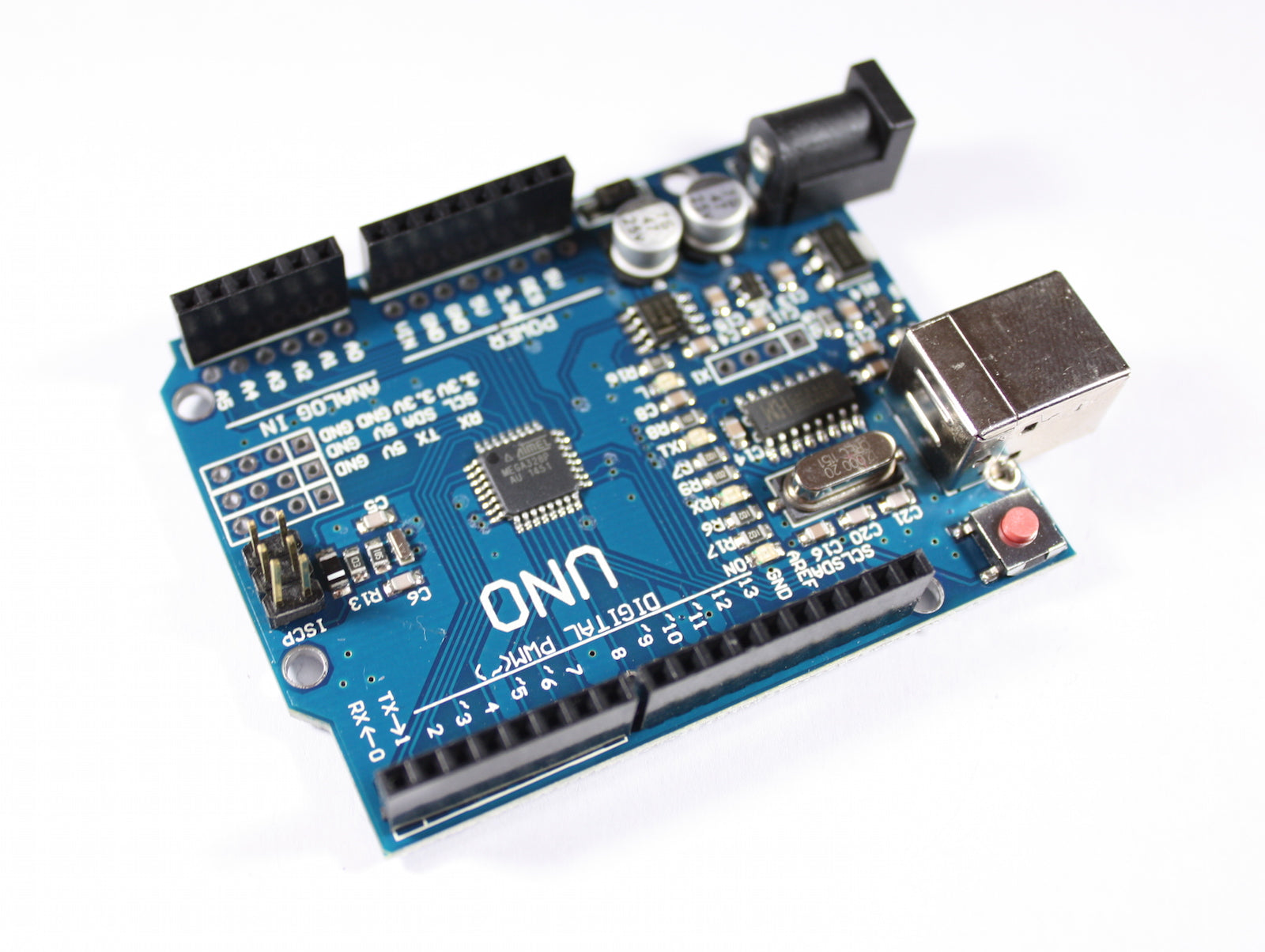

The Uno R3 module is a cheap alternative to the Arduino Uno Boards. It is equipped with an ATMEL AVR ATmega328P microcontroller and a updated USB-controller for cost reduction. The specifications are equal to Arduino Uno R3.
The board is shipped with the shown pin headers.

Please note that the boards have a CH340G USB-Controller. They are recognized on Linux without any additional drivers. Mac OS and Windows users may need to install an additional driver.

Specification:

Microcontroller:ATmega328
Operating Voltage:5 V
Input Voltage:5 - 12 V
Digital I/O Pins:14 (of which 6 provide PWM output)
Analog Input Pins:6
DC Current per I/O Pin:40 mA
Flash Memory:32 KB (of which 0.5 KB used by bootloader)
SRAM2 KB
EEPROM:1 KB
Clock Speed:16 MHz
