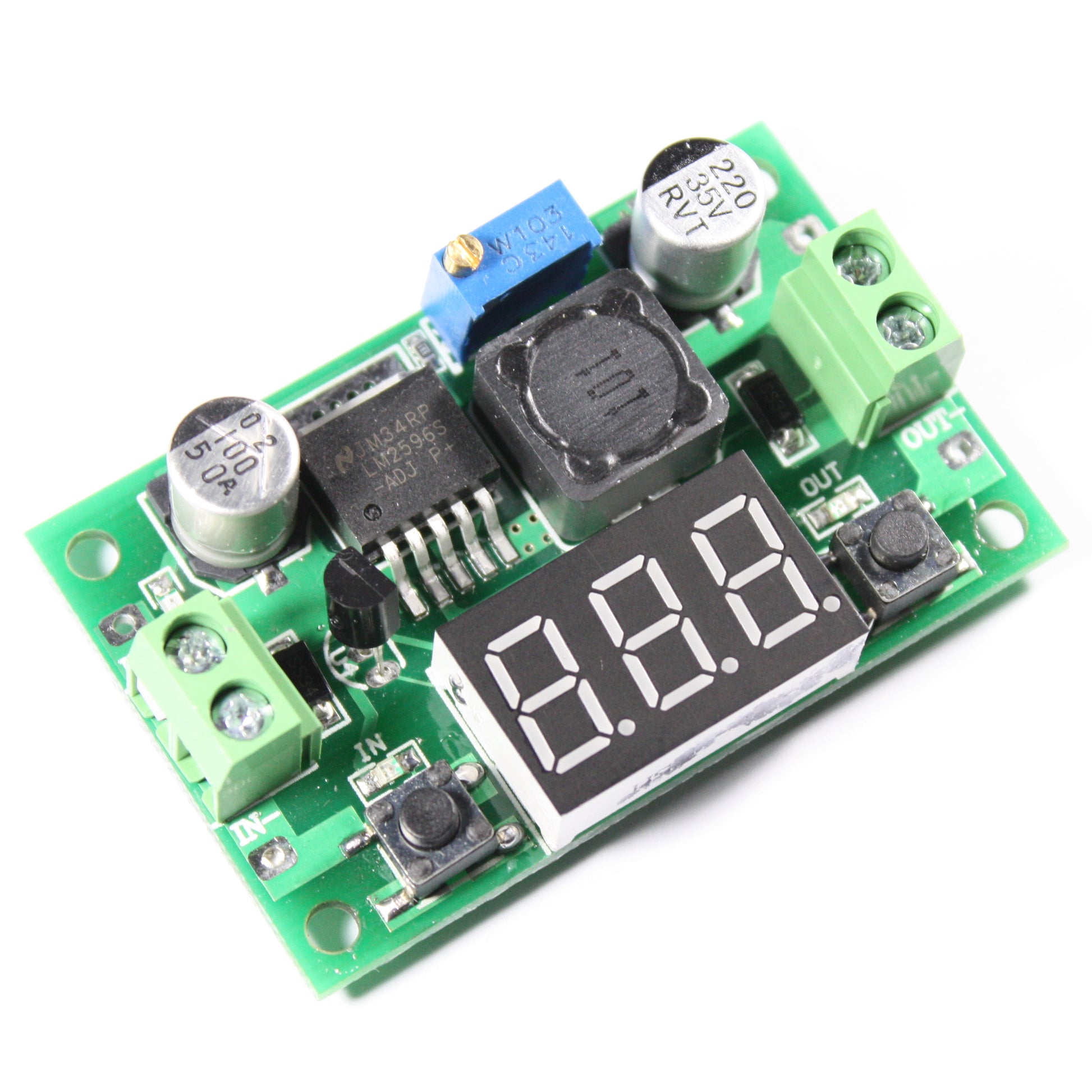

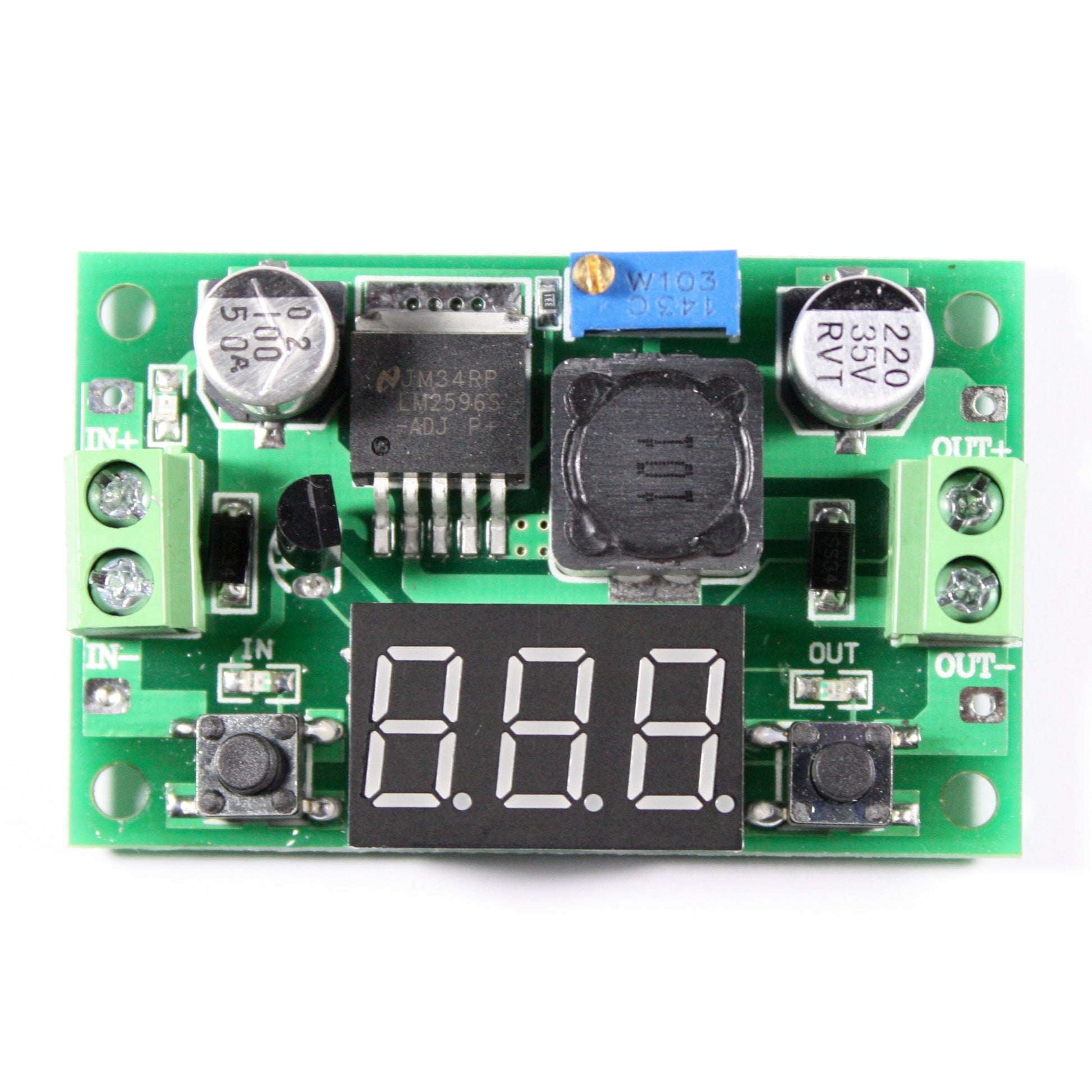

LM2596 Step-Down Voltage Regulator Module: Precise Control from 4-40V to 1.3V-37V with 7-Segment LED Display Voltmeter

LM2596 Step-Down Voltage Regulator Module: Precise Control from 4-40V to 1.3V-37V with 7-Segment LED Display Voltmeter

Regular price $8.00 USD
Regular price Sale price $8.00 USD
Sale Sold out
Shipping calculated at checkout.

Introducing our Digital Voltmeter Module with Integrated Voltage Regulation, a versatile tool designed to meet all your voltage conversion needs. This module allows you to reduce input voltages ranging from 4V to 40V down to output voltages of 1.3V to 37V. The 7-segment display lets you effortlessly monitor both input and output voltages.

Key Features:

  1. Adjustable Output Voltage: This module features a potentiometer that allows you to adjust the output voltage from 1.3V to 37V. Note that the input voltage should be at least 1.5V higher than the output voltage.

  2. Easy Control: The left button enables you to turn the display on and off, while the right button lets you switch the display between input and output voltage.

  3. High Resolution: With a resolution of 0.1V, this voltmeter module ensures precise voltage readings.

  4. Current: The module supports a maximum current of 2.0A, providing adequate power for most electronic devices.

  5. Compact Design: Measuring approximately 56mm x 35mm, this compact module easily fits into various setups.

Specifications:

  • Input Voltage: 4V - 40V
  • Adjustable Output Voltage: 1.3V - 37V
  • Resolution: 0.1V
  • Current: 2.0A max.
  • Dimensions: 56mm x 35mm
