SHT30 Shield, Temperature and Humidity Sensor for WeMos D1 mini

The SHT30 Shield for your WeMos D1 mini has an high-accuracy sensor on-board that measures humidity and temperature. The typical accuracy is ± 3 % relative humidity and ± 0.3°C.

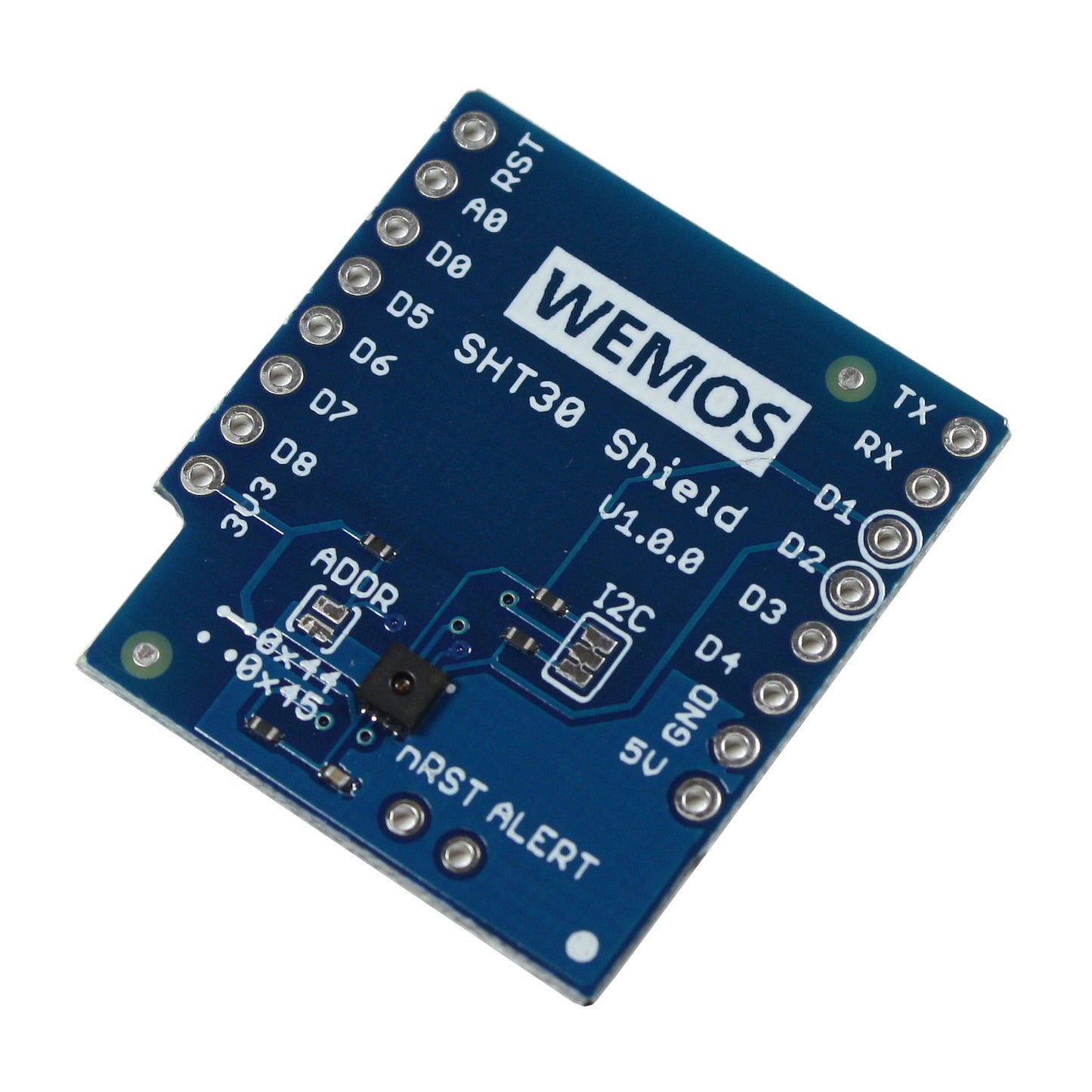

This shield just needs the two I2C pins (SCL, SDA) of your WeMos D1 mini. The I2C address of this shield can be adjusted by shorting the ADDR jumper on top of the PCB. When the jumper is shorted you can access the sensor with address 0x44, when open its address is 0x45.

We recommend you to use the SHT3x Library for Arduino in combination with your WeMos D1 mini.

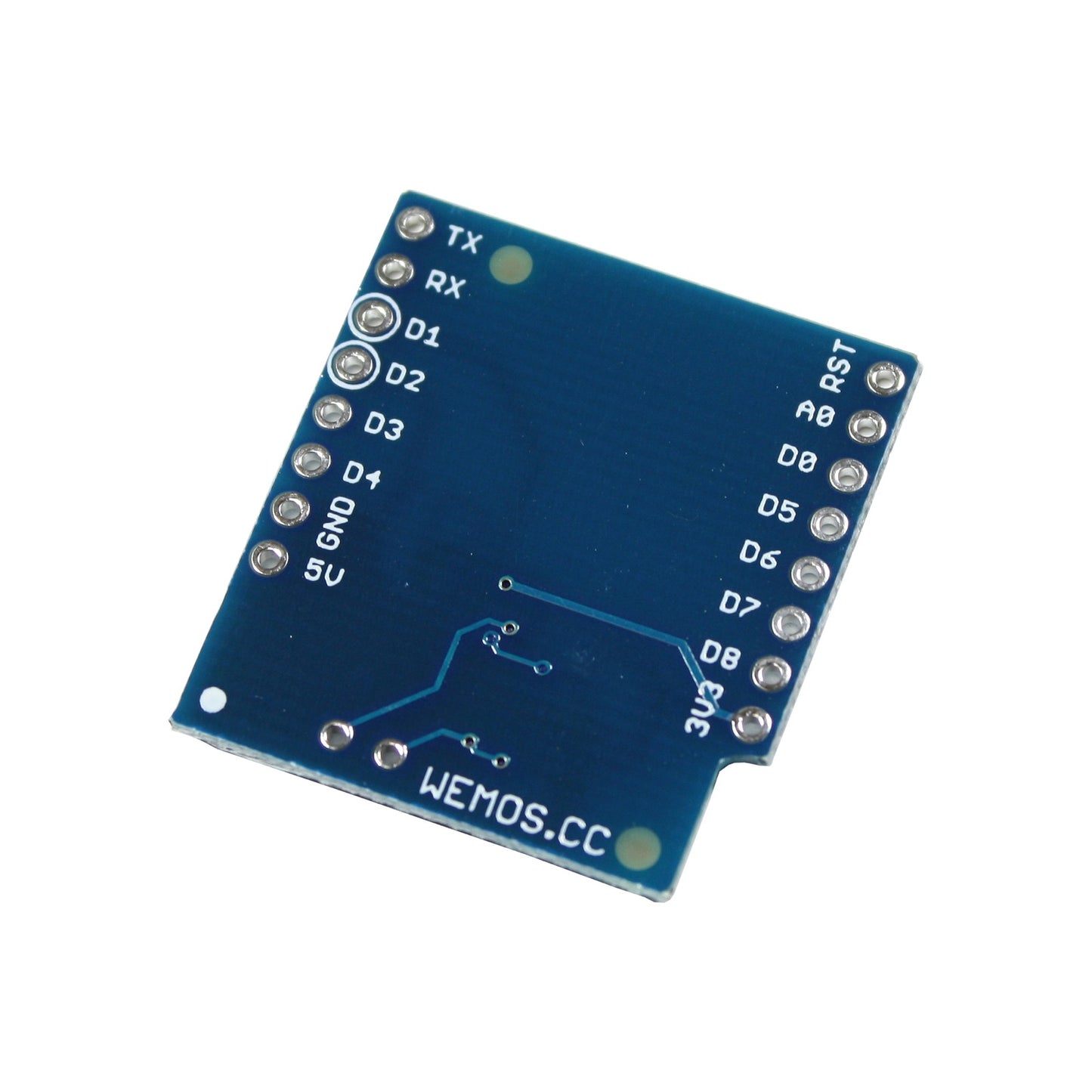

The delivery includes headers so you can solder it and plug the board on the WeMos D1 mini.
