Seeed Studio XIAO RP2040, Supports Arduino, MicroPython and CircuitPython

Seeed Studio XIAO RP2040, Supports Arduino, MicroPython and CircuitPython

Regular price $10.00 USD
Regular price Sale price $10.00 USD
Sale Sold out
Shipping calculated at checkout.

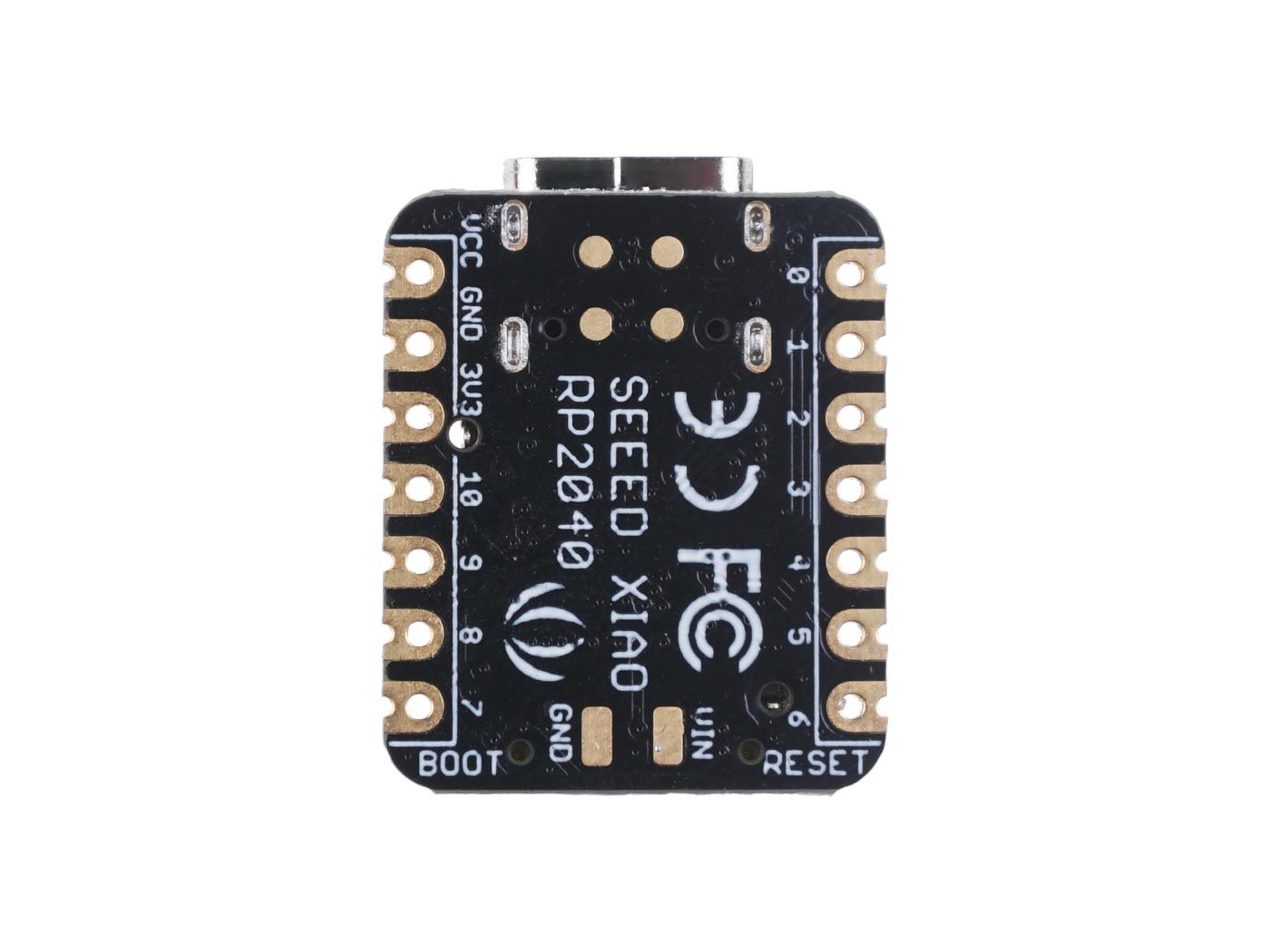

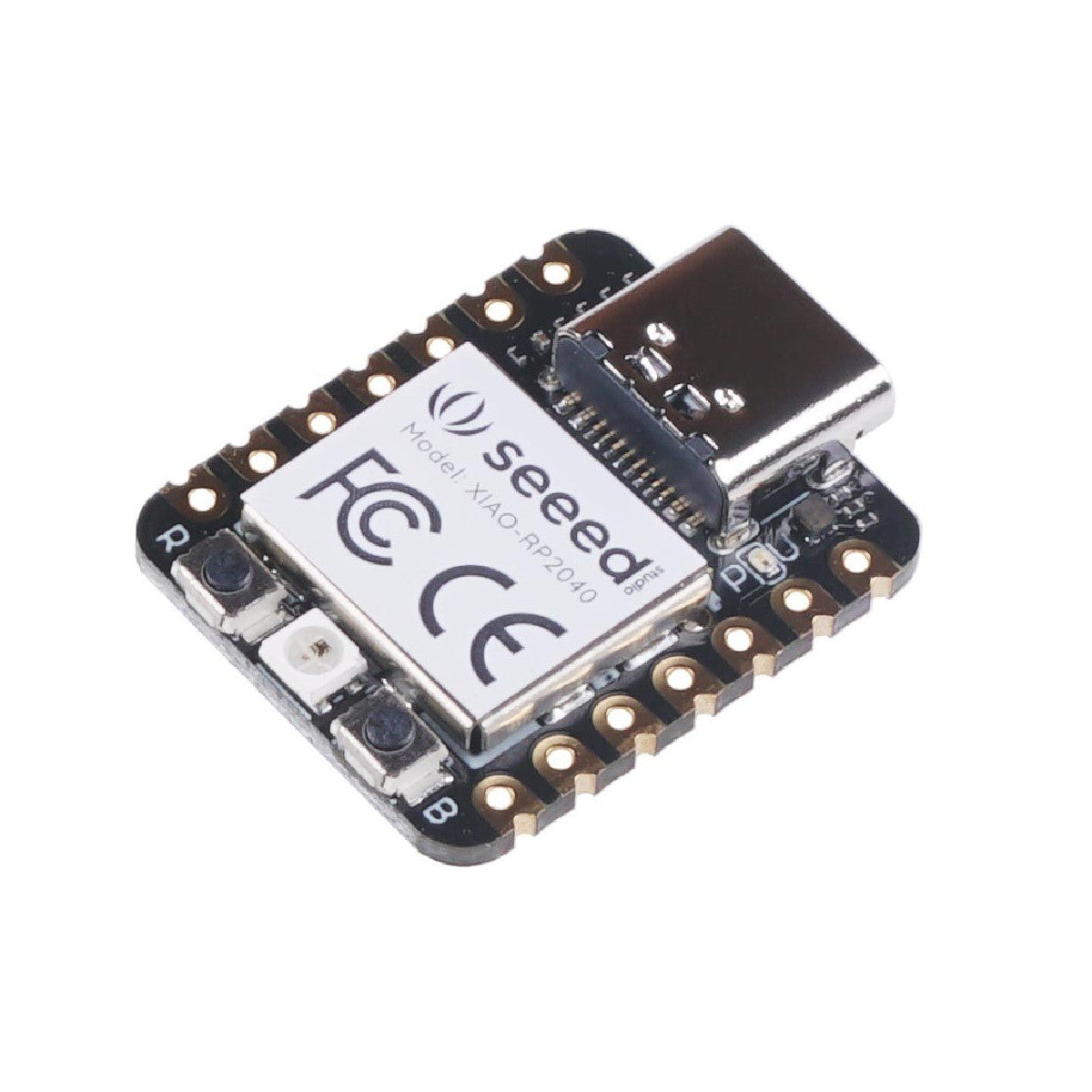

XIAO RP2040 is a powerful low-power microcontroller. Similar to the Arduino Nano RP2040 and Raspberry Pi Pico, the XIAO RP2040 is equipped with the same chip microcontroller RP2040, the first in-house designed chip released by the Raspberry Pi. It features a dual-core Arm Cortex-M0+ processor clocked at up to 133MHz. It has 264K SRAM, 2MB of onboard storage. With dual fast cores, plenty of on-chip RAM, plenty of on-chip RAM, the RP2040 is a great platform for machine learning applications, and it has a port for Google's TensorFlow Lite framework.

XIAO RP2040 is the development board of Seeeduino XIAO series. Like the Seeeduino XIAO, it is a compact board with multiple interfaces. The XIAO RP2040 is small in size, only the size of a thumb. It has rich onboard interfaces enough to develop multiple applications. When you don't need the size and power of a full Raspberry Pi, but don't want to develop on the Arduino platform, the XIAO RP2040 is an excellent choice for running less complex projects. And it can be programmed in C/C++ and the beginner-friendly MicroPython.

Technical Details:

CPUDual-core ARM Cortex M0+ processor, flexible clock running up to 133 MHz
Storage264KB of SRAM, and 2MB of onboard Flash memory
I/O PINs11 digital pins, 4 analog pins, 11 PWM Pins
Interface1 I2C interface, 1 UART interface, 1 SPI interface, 1 SWD Bonding pad interface
Power supply & Downloading interfaceUSB Type-C interface
LEDs:1 user LED, 1 power LED, two LEDs for serial port downloading, 1 RGB LED
Button1 RESET button, 1 BOOT button
Power PadsFor the battery power supply
Software compatibilitySupport Micropython / Arduino / CircuitPython
CoverProjection cover for protecting the circuit
Dimensions20x17.5x3.5 mm
