Seeed Studio Round Display for XIAO, 1.28" round touch screen incl. RTC, Charging Circuit, microSD slot
Seeed Studio Round Display for XIAO, 1.28" round touch screen incl. RTC, Charging Circuit, microSD slot

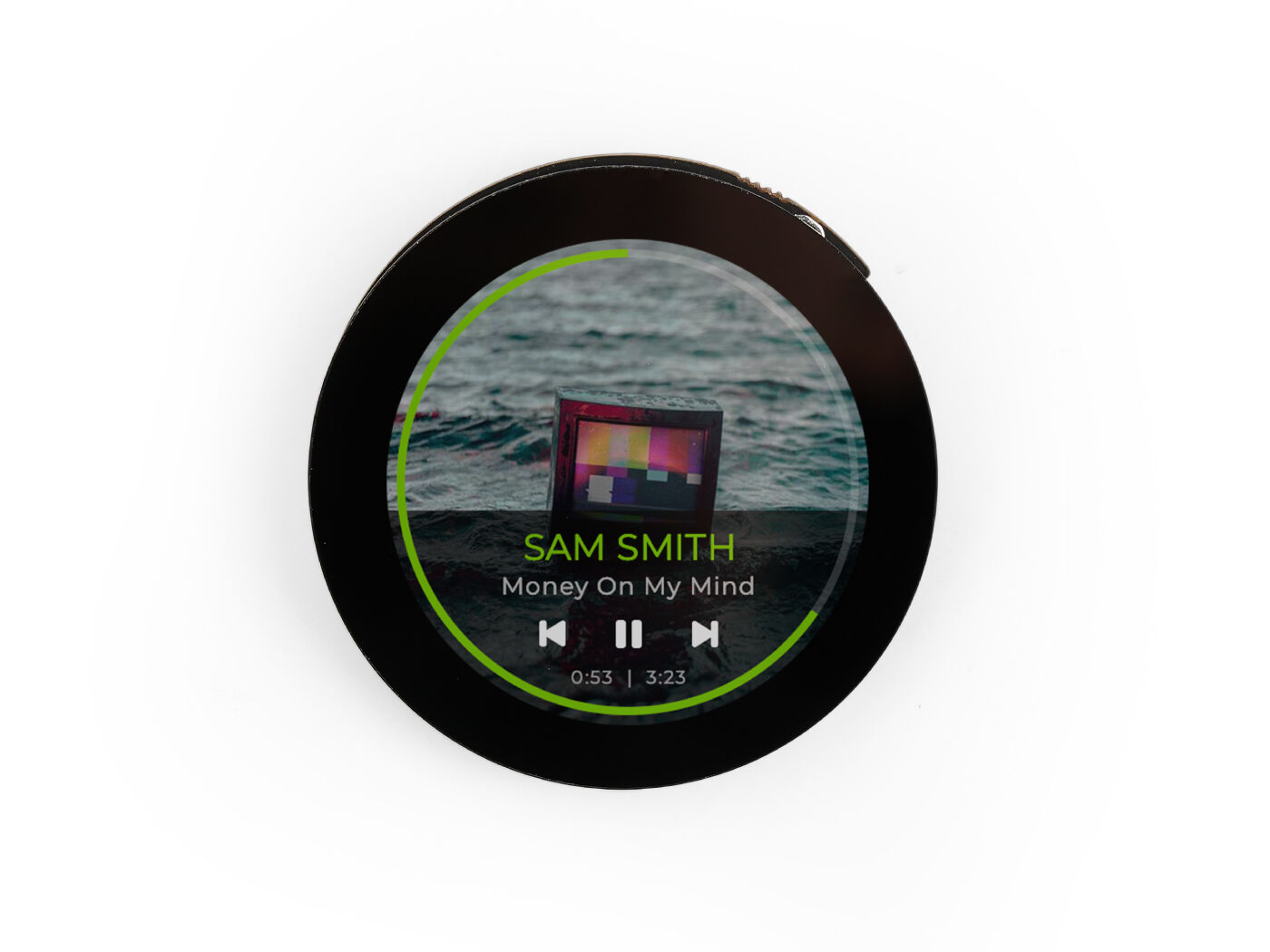

- Capacitive Touch Screen Expansion Board: Display with 1.28-inch round, 240×240 resolution, 65K colors, providing clear and colorful images exhibition

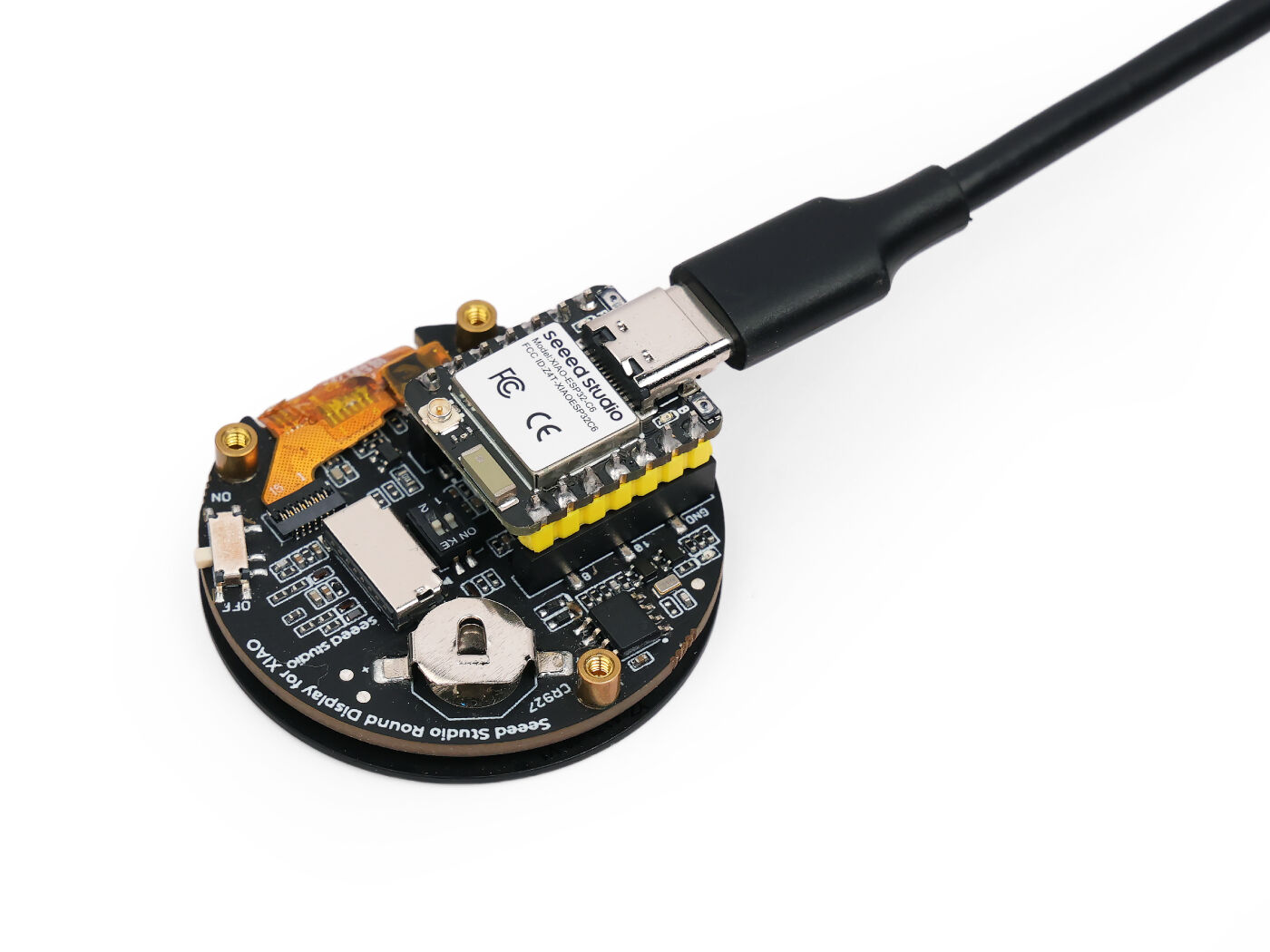

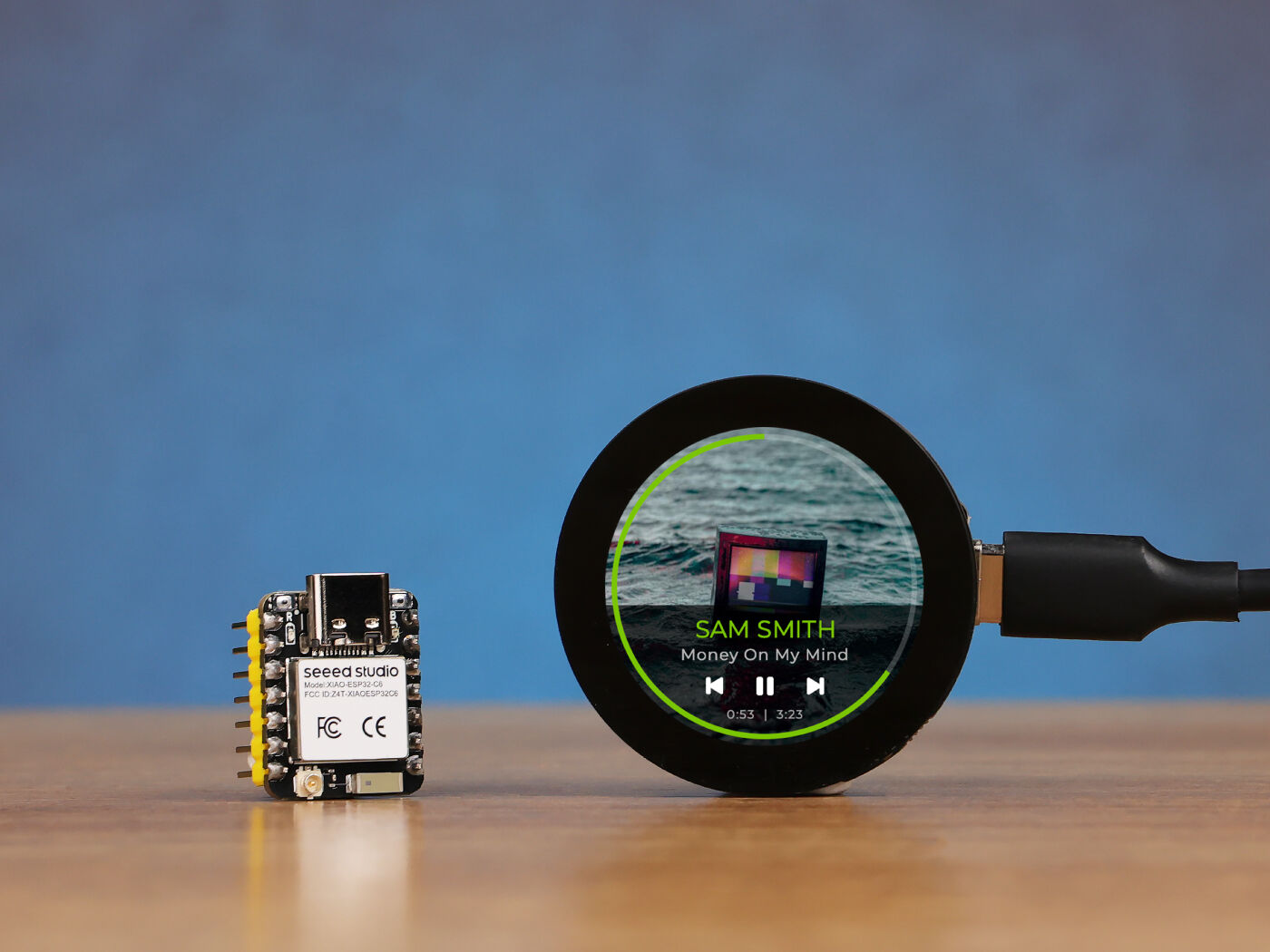

- High Compatibility: Highly compatible with all XIAO series products, easily integrated intoyour current projects

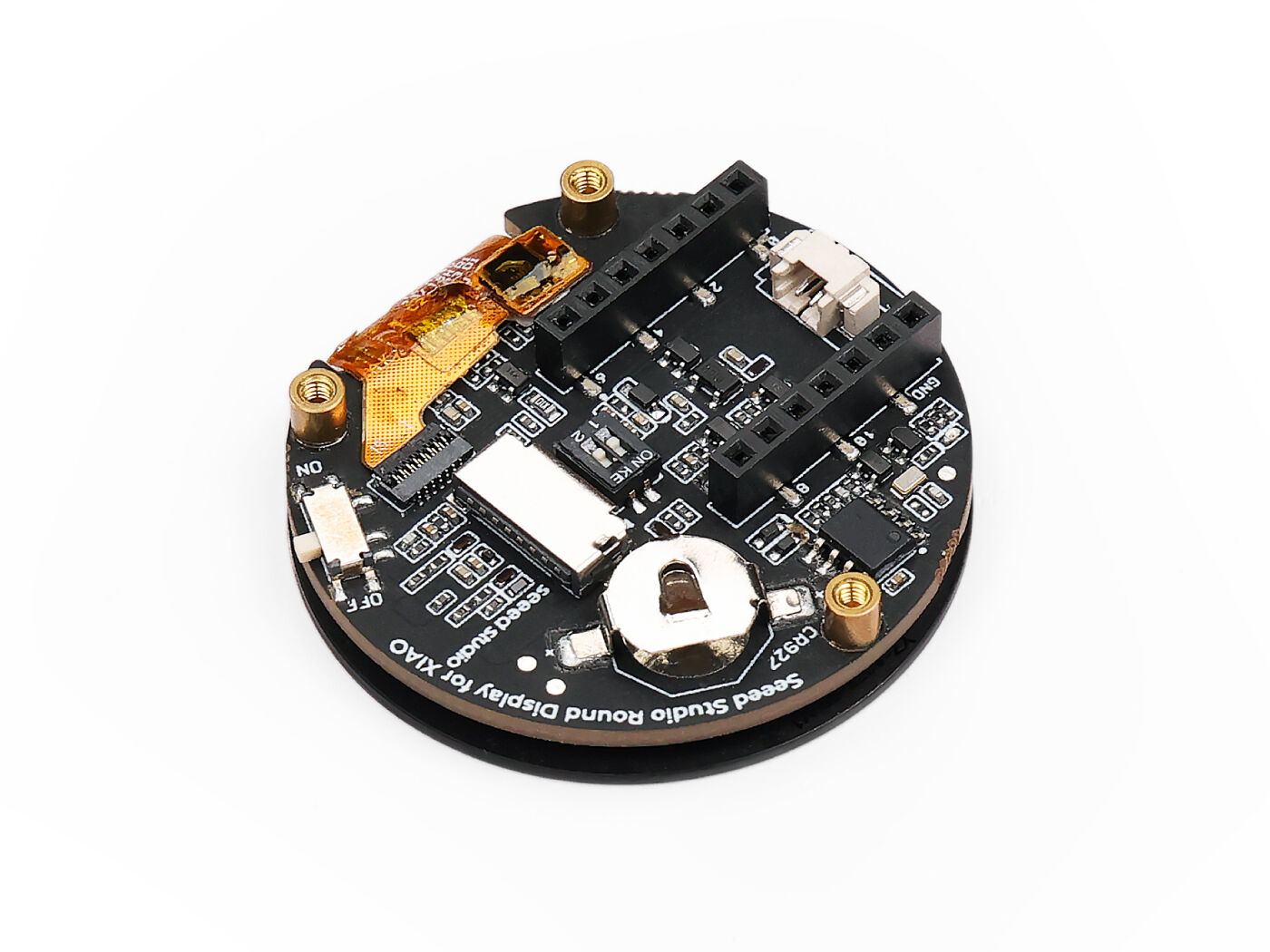

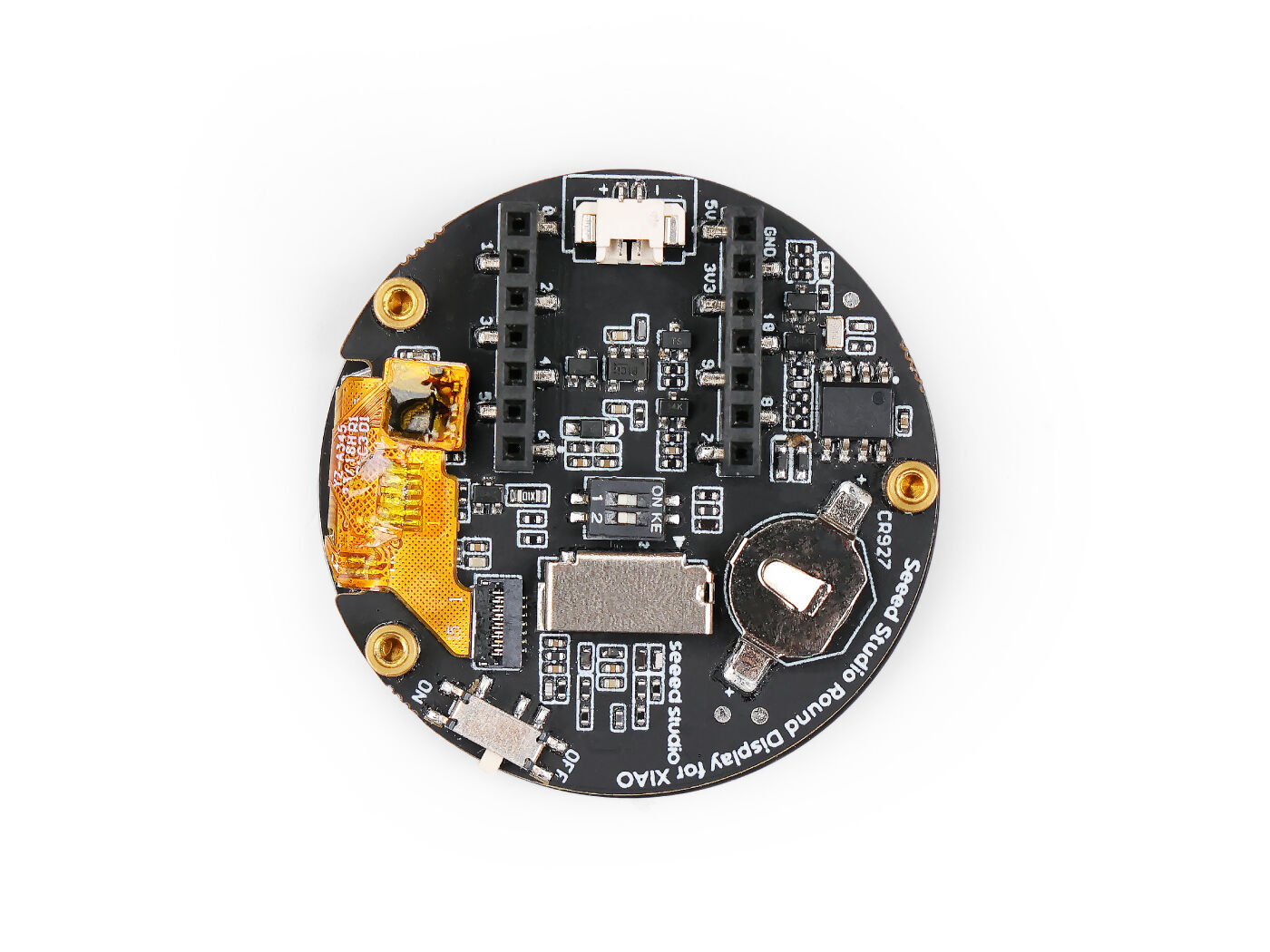

- Rich Peripheral: Feature onboard RTC, battery charge chip, TF card slot, JST 1.25 connector, all within its compact size

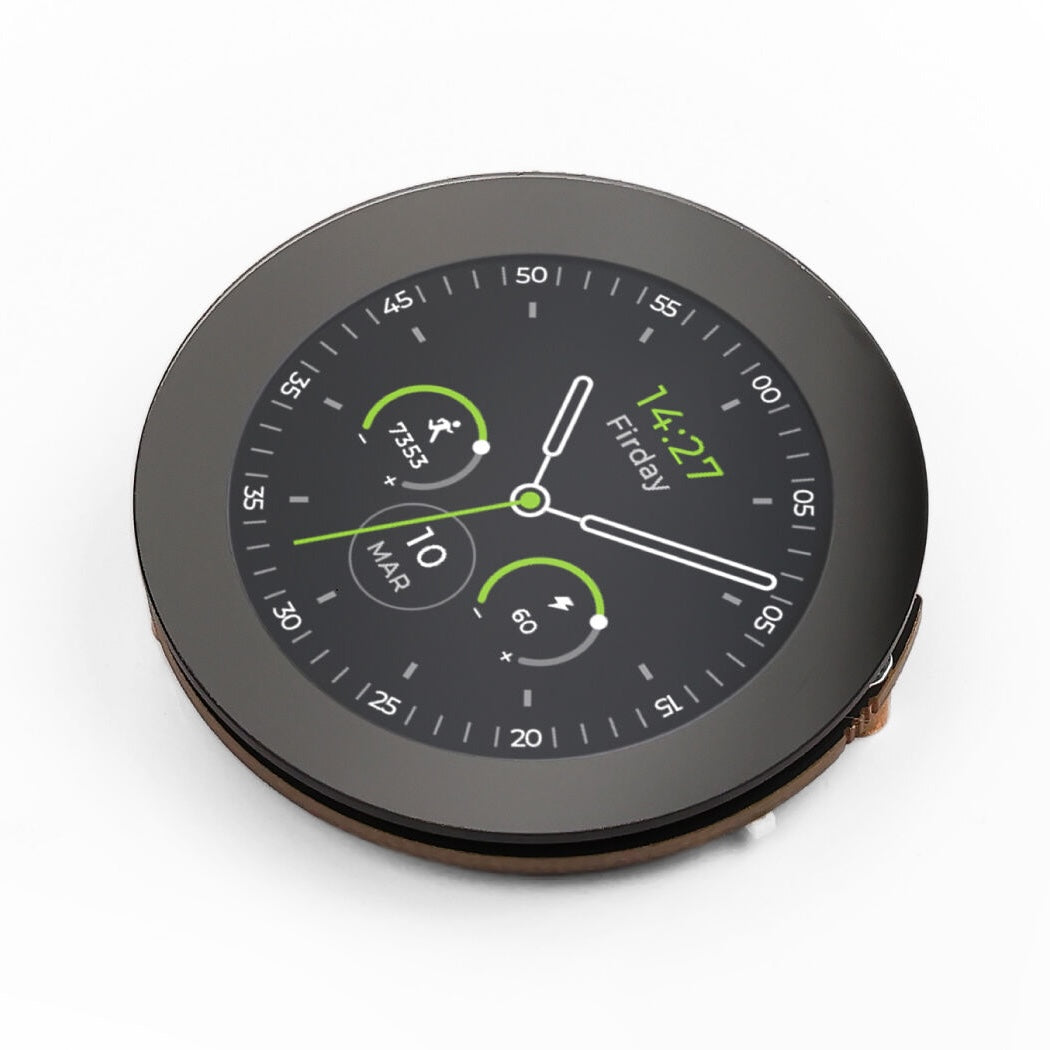

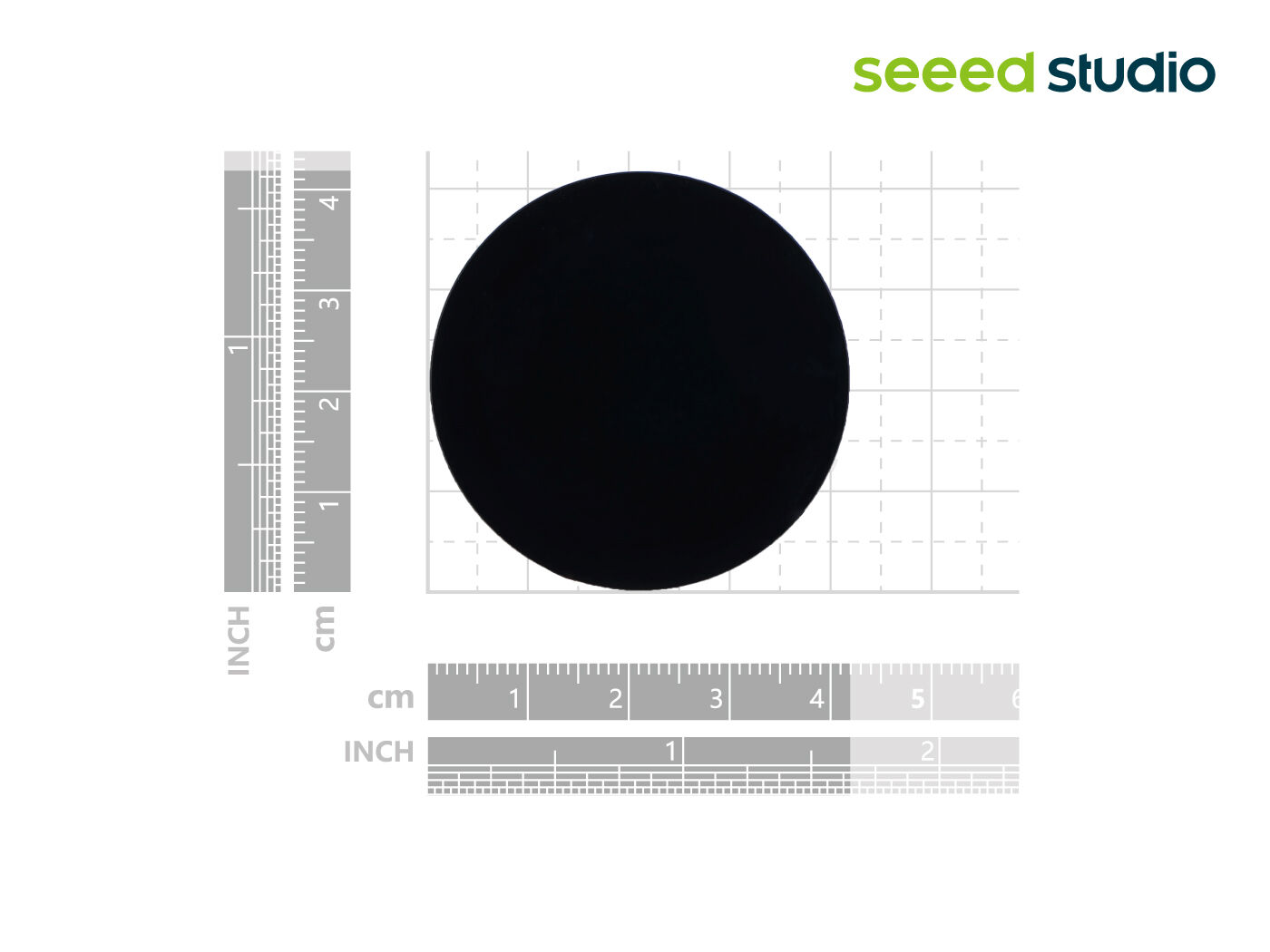

- Watch-sized Design: Come with 39 mm circular design, suitable for wearable and space-limited projects
- Plug and Play: All pins are led out, no soldering is needed
That is, you can have a reliable timekeeping, a way to extend memory up to 32GB FAT, a charging method by the lithium battery. With its mini size, the XIAO extension board is ideal for wearable and small-volume projects. It is a versatile and powerful extension board that can be used for a wide range of projects, from displaying sensor data to creating interactive interfaces.
Item |
Detail |
Power Supply |
USB Type-C: 5V @35 mA Battery Charge: 3.7V @37mA |
Battery Connector |
3.7V Li-ion Battery JST 1.25 connector |
Charge current |
~ 485 mA |
RTC Battery Holder |
CR927 |
RTC Chip |
PCF8563 |
Expandable memory |
TF Card Slot for up to 32GB FAT |
Screen |
1.28-inch touch screen 240×240 resolution 65K colors |
Sample Rate |
100Hz |
Dimension |
43mm x 43mm |
