Seeed Studio ReSpeaker 2-Mics Pi HAT

Seeed Studio ReSpeaker 2-Mics Pi HAT

Regular price $16.00 USD
Regular price Sale price $16.00 USD
Sale Sold out
Shipping calculated at checkout.

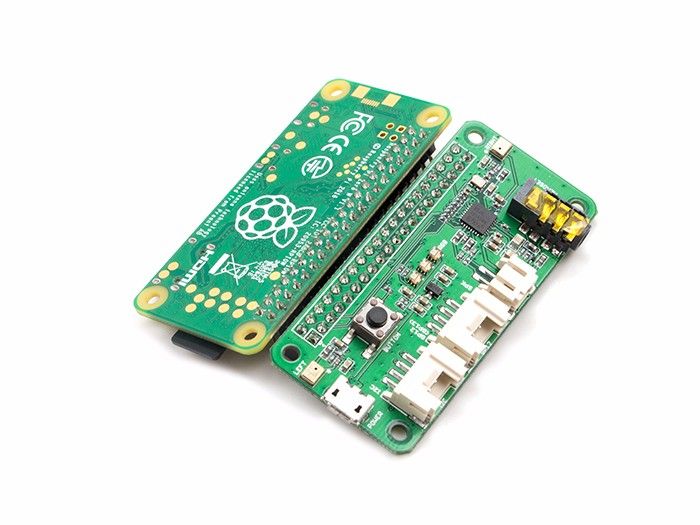

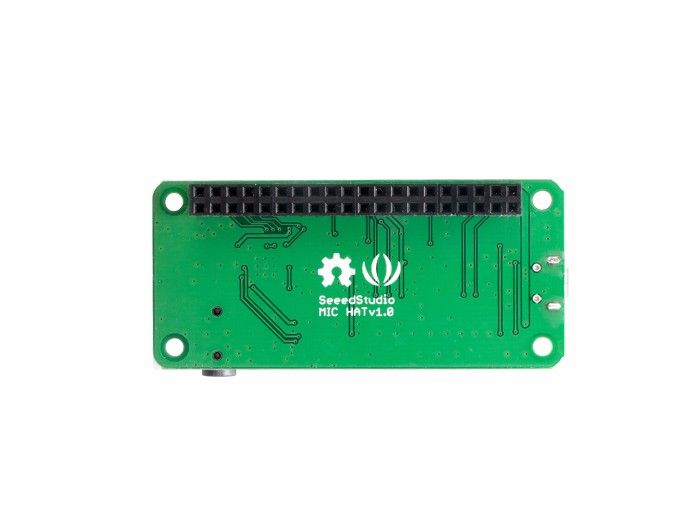

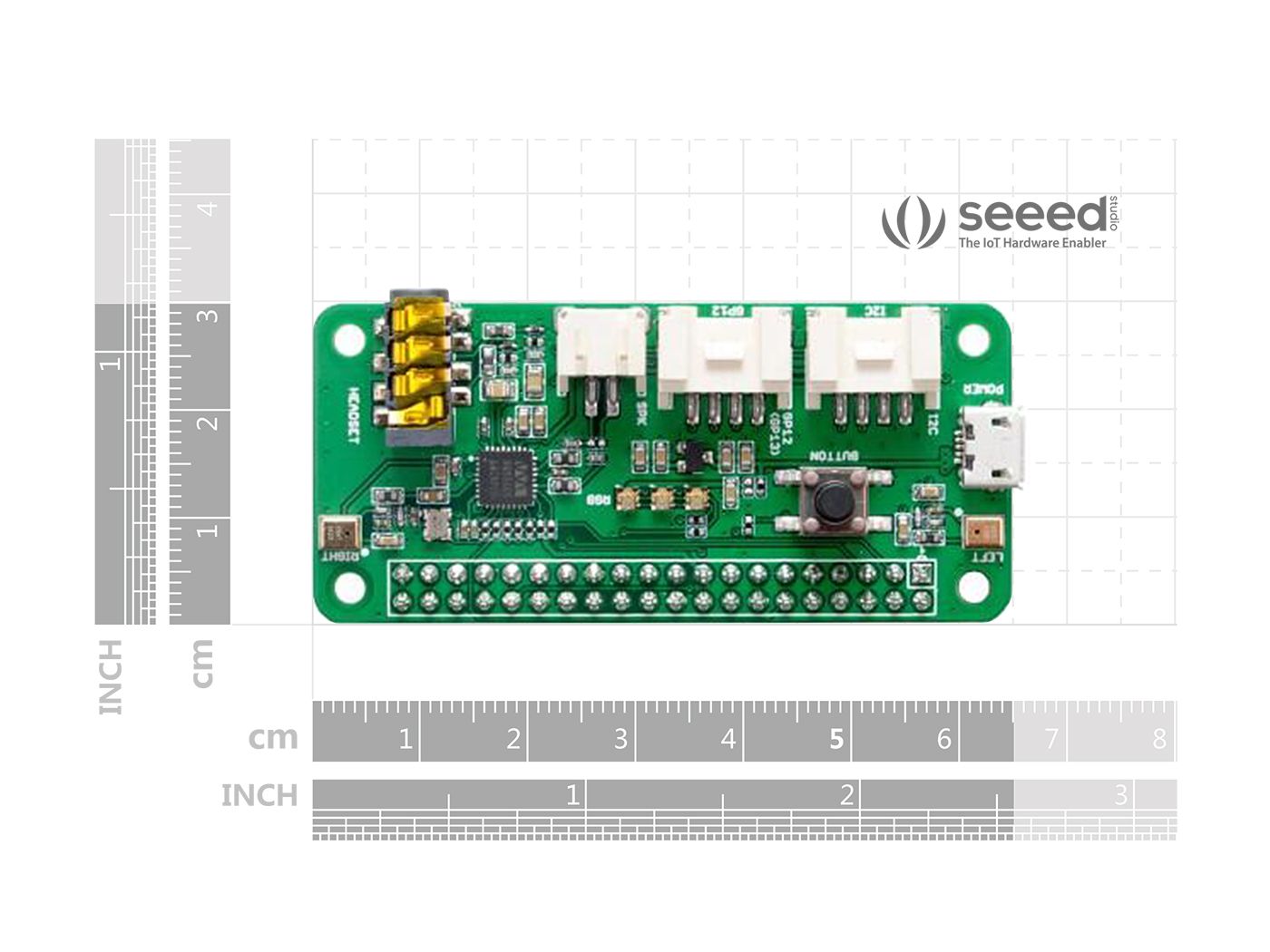

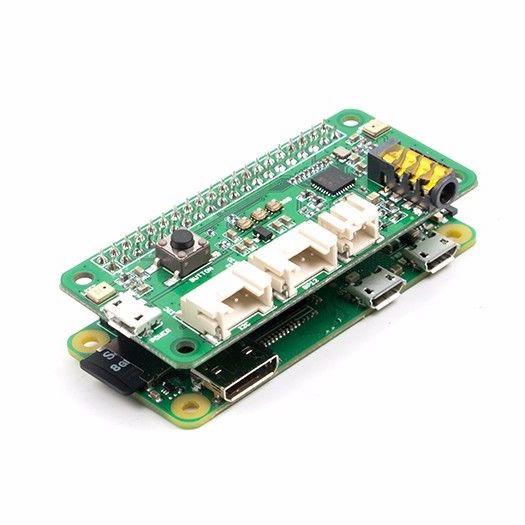

ReSpeaker 2-Mics Pi HAT is a dual-microphone expansion board for Raspberry Pi designed for AI and voice applications. This means that you can build a more powerful and flexible voice product that integrates Amazon Alexa Voice Service, Google Assistant, and so on.

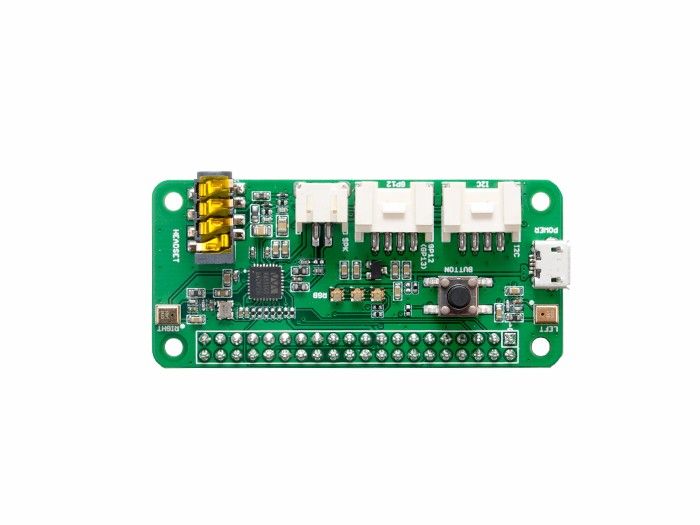

The board is developed based on WM8960, a low power stereo codec. There are 2 microphones on both sides of the board for collecting sounds and it also provides 3 APA102 RGB LEDs, 1 User Button and 2 on-board Grove interfaces for expanding your applications. What is more, 3.5mm Audio Jack or JST 2.0 Speaker Out are both available for audio output.

Note:

  • This product does not include the Pi Zero board
  • If you have any technical issue regarding software, please visit the github page and submit your query.

Features

  • Raspberry Pi compatible(Support Raspberry Pi Zero, Raspberry Pi 1B+, Raspberry Pi 2B, Raspberry Pi 3B, Raspberry Pi 3B+ and Raspberry Pi 4 )
  • Dual-Microphones
  • 2 Grove Interfaces: support GPIO and I2C
  • Programmable Button and LED: one button and three LEDs
  • Stereo Codec with Class D Speaker Driver
  • Two types audio output socket : 3.5mm Audio Jack(40mW output ), JST2.0 Speaker Out(providing 1W into 8Ω loads)
  • Far field support (up to 3 meters)
