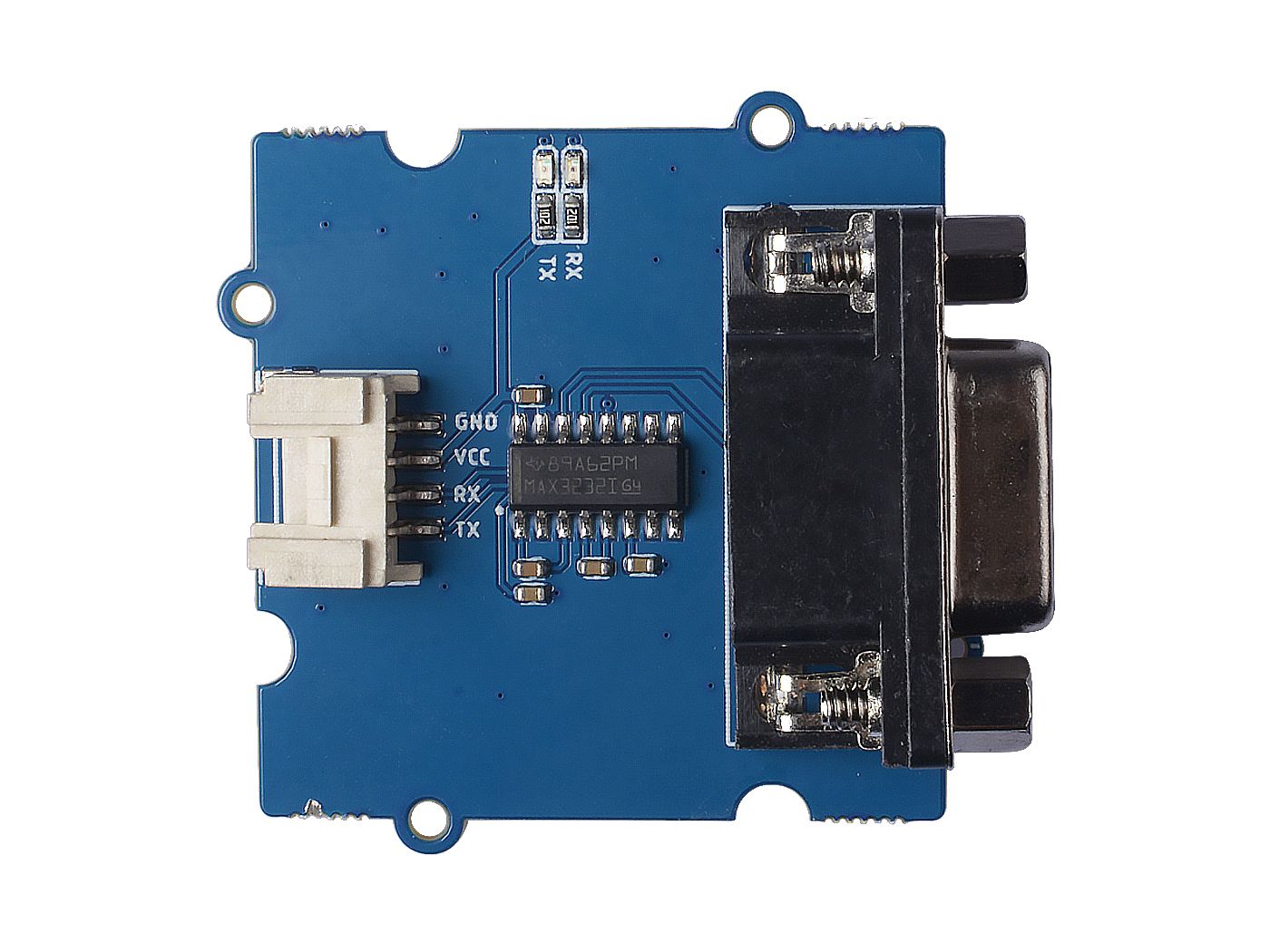

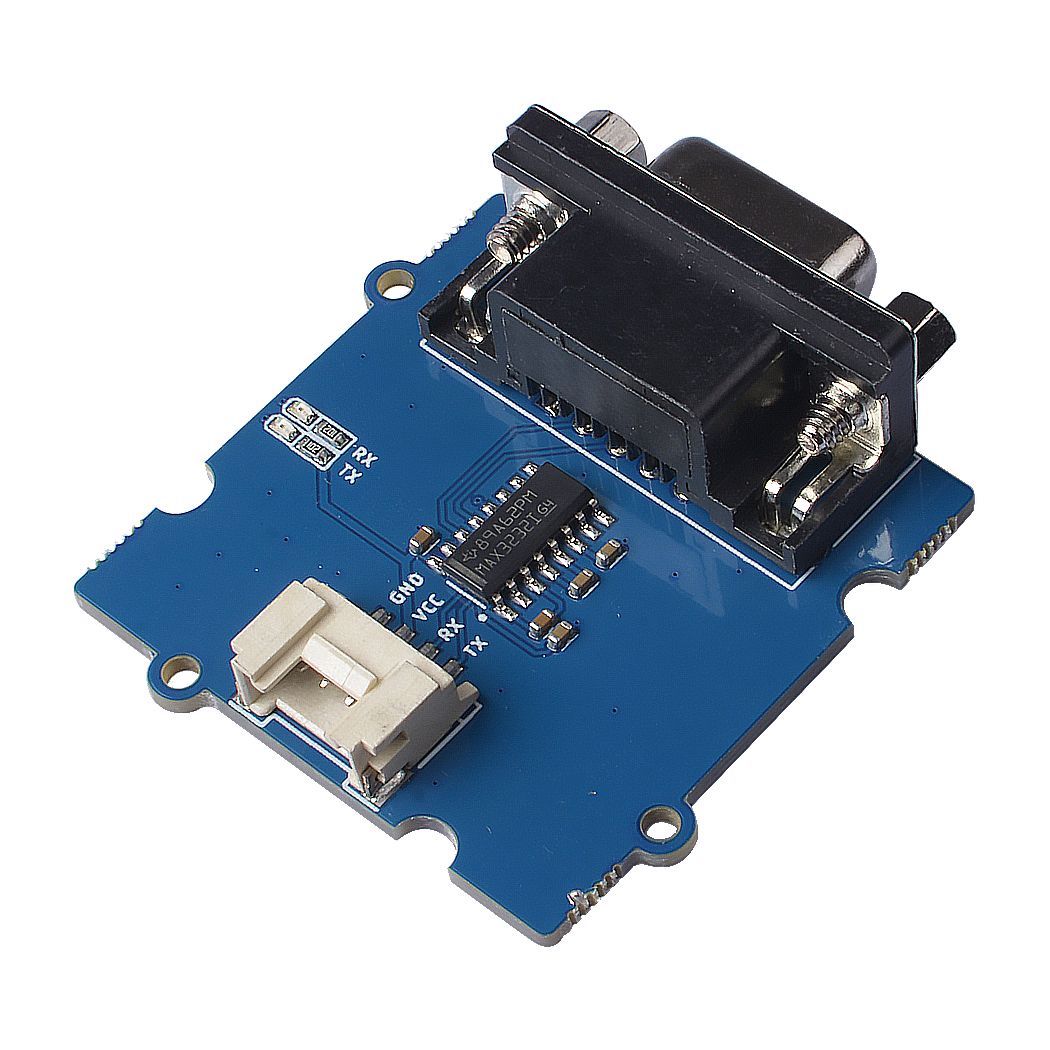

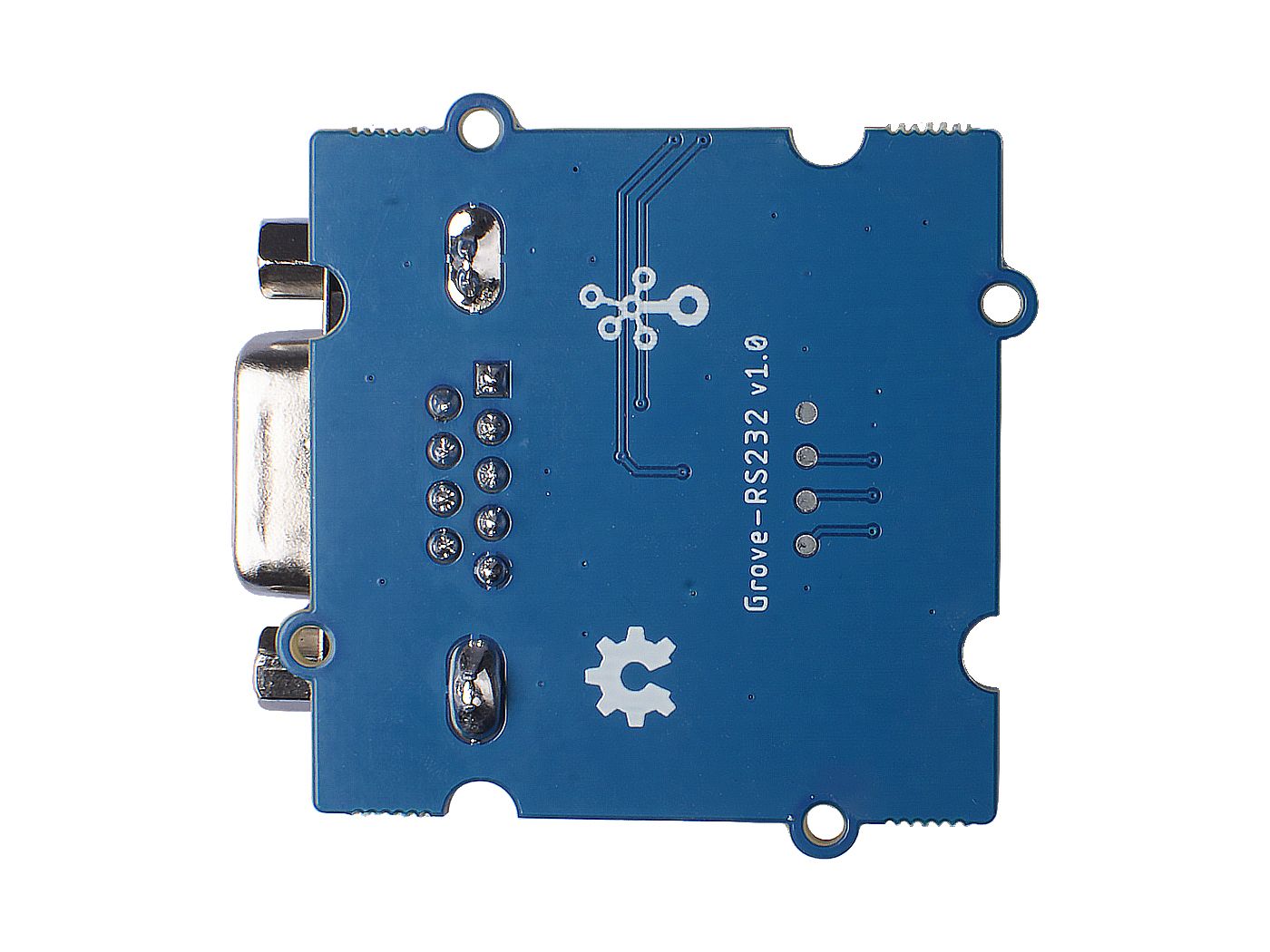

Seeed Studio Grove RS232

Most of the MCUs use TTL levels, and the computer serial port generally uses 232 levels. If we want the computer to communicate with the MCU, we need this Grove - 232. Communication between your Arduino and your computer will be exceptionally convenient with the integrated Grove interface

This module is based on Max3232, it supports multiple baud rate communication and theoretically supports communication up to 230400bps baud.

Feature

• Easy to use
• Stable, high speed
• High cost performance
• ±15-kV ESD Protection
• Low power consumption
• Two Drivers and Two Receivers

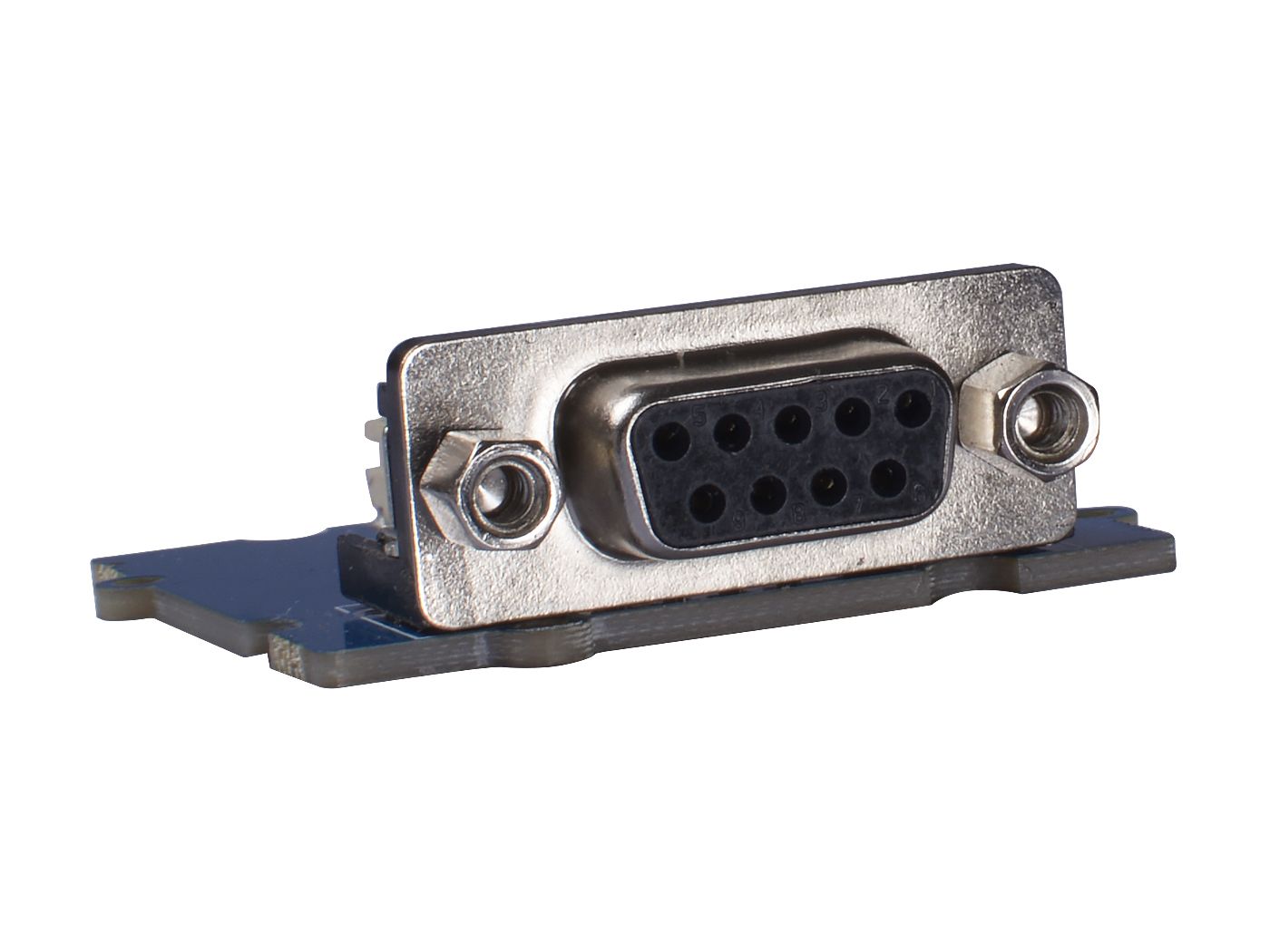

• Female DB9 Header

Typical Applications

• Hand-Held Equipment
• Palmtop PCs

Pin Out
