Seeed Studio Grove Qwiic Hub, Compatible with Grove/Qwiic/STEMMA QT Modules & Controllers

Seeed Studio Grove Qwiic Hub, Compatible with Grove/Qwiic/STEMMA QT Modules & Controllers

Regular price $5.00 USD
Regular price Sale price $5.00 USD
Sale Sold out
Shipping calculated at checkout.

Key Features

  • Interaction connector of Grove interface and Qwiic/STEMMA QT interface

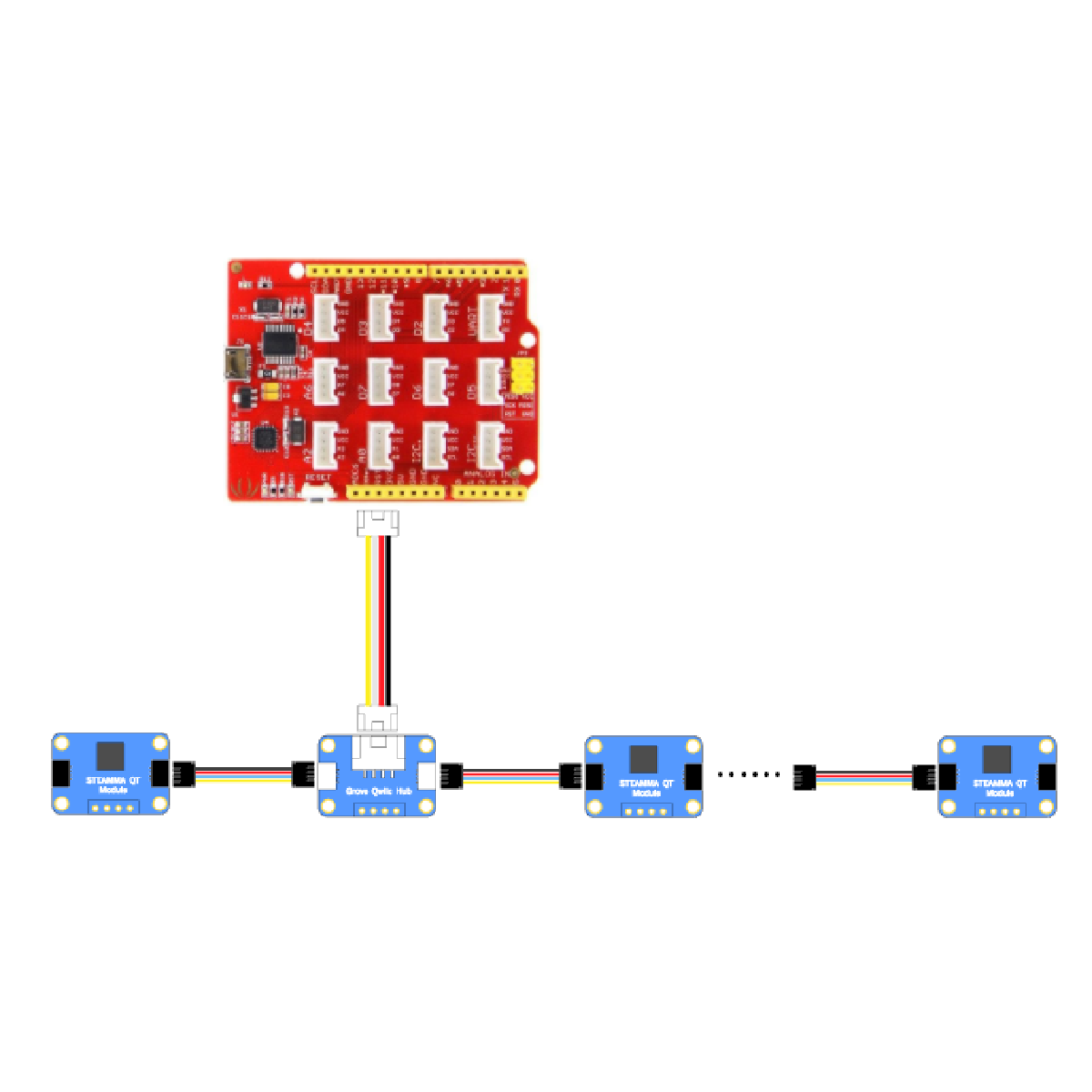

  • Cascade connect more than one Qwiic/STEMMA QT and Grove modules in one I2C bus

  • Compatible with 3.3V/5V supply voltage

Different from our Grove system, Qwiic is an I2C interface system initiated by Sparkfun around 2017, using a 4pin JST SH 1.0mm connector. STEMMA QT initiated by Adafruit is cross-compatible with Qwiic, as they use the same connector/cable. To better support different types of interface systems, we provide Grove - Qwiic Hub, which enables you easily connect the I2C devices with Grove/Qwiic/STEMMA QT interface, get the best use of your devices/controller of different interfaces.

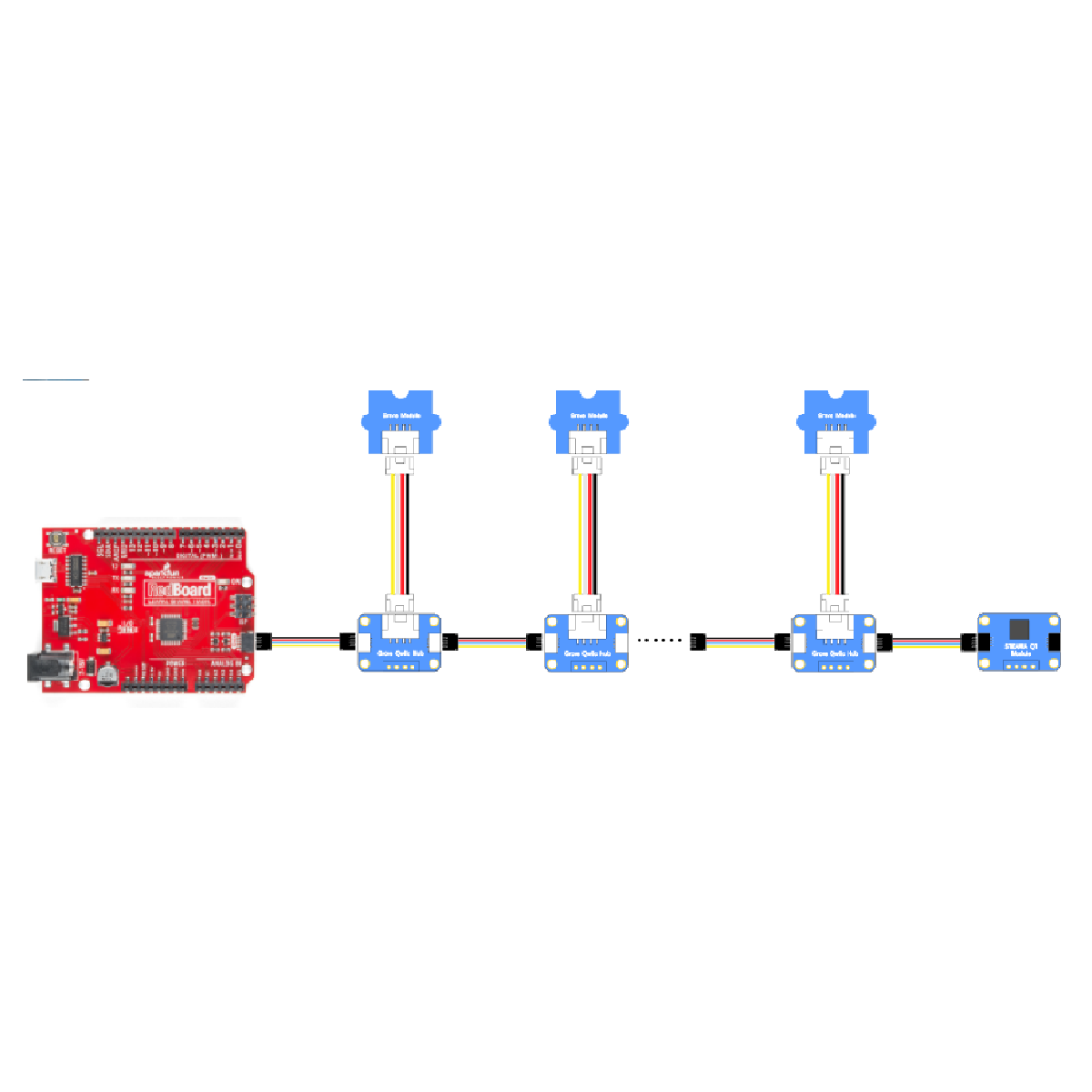

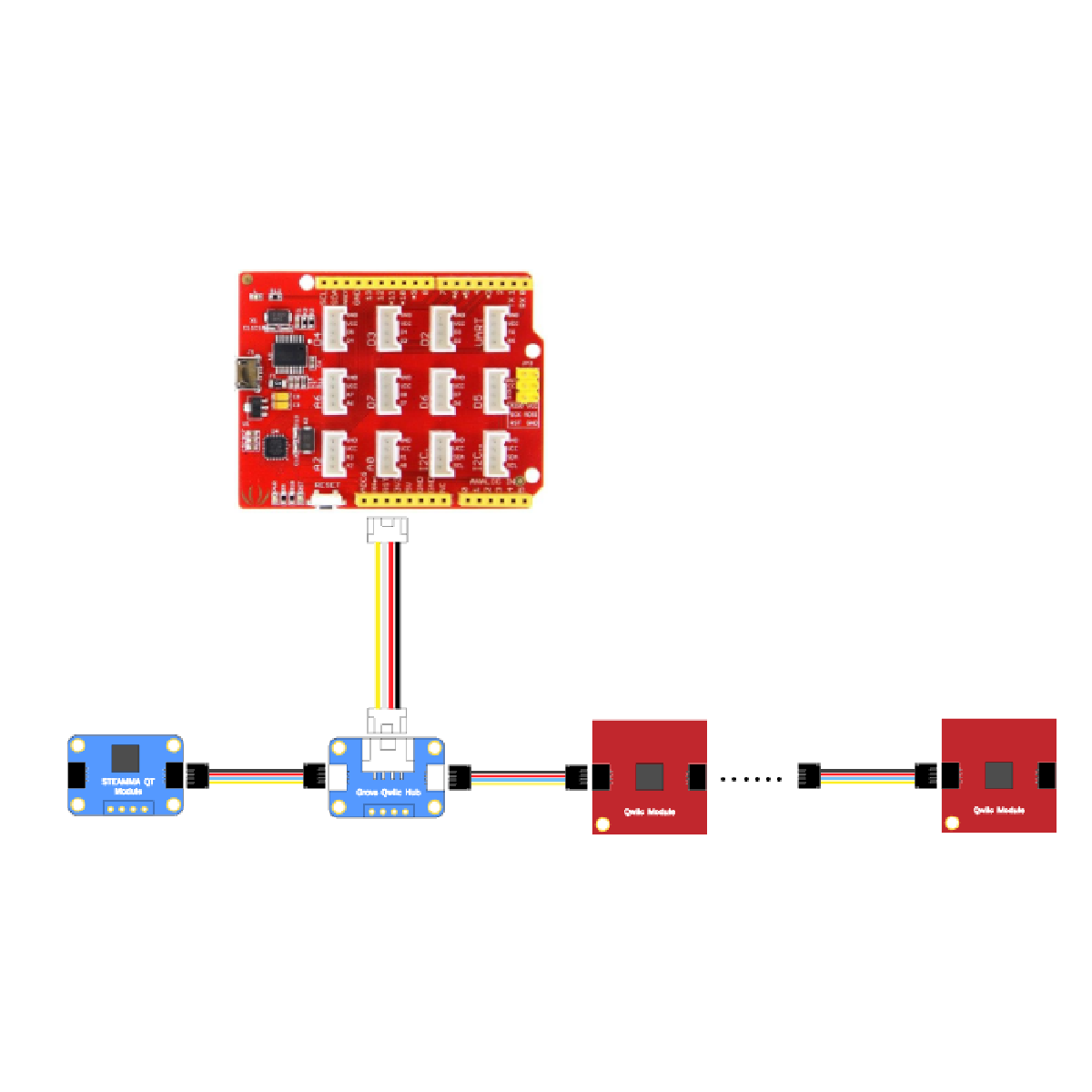

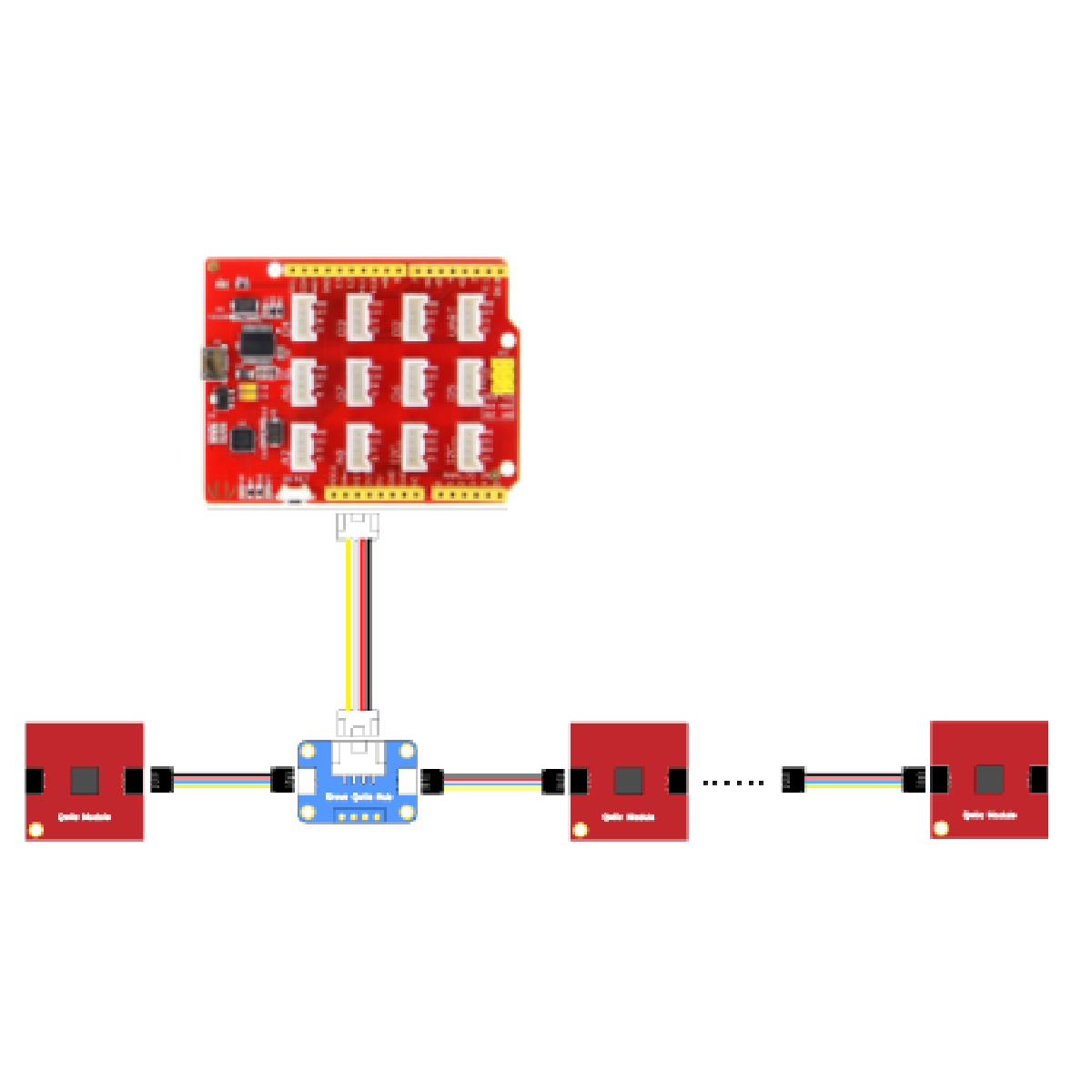

Grove - Qwiic Hub allows you to either use Qwiic/STEMMA QT modules on Grove controller or use Grove modules on Qwiic/STEMMA QT controller. You can cascade connect more than one Qwiic/STEMMA QT and Grove modules in one I2C bus with Grove - Qwiic Hub. It also has a built-in level shifting function that allows 3.3V/5V supply voltage.

Specification

Items

Value

Peripheral Features

  • JST SH I2C interfaces * 2

  • Maximum communication frequency: 3.5MHz

  • Grove interface

Power

  • 3.3V/5V DC

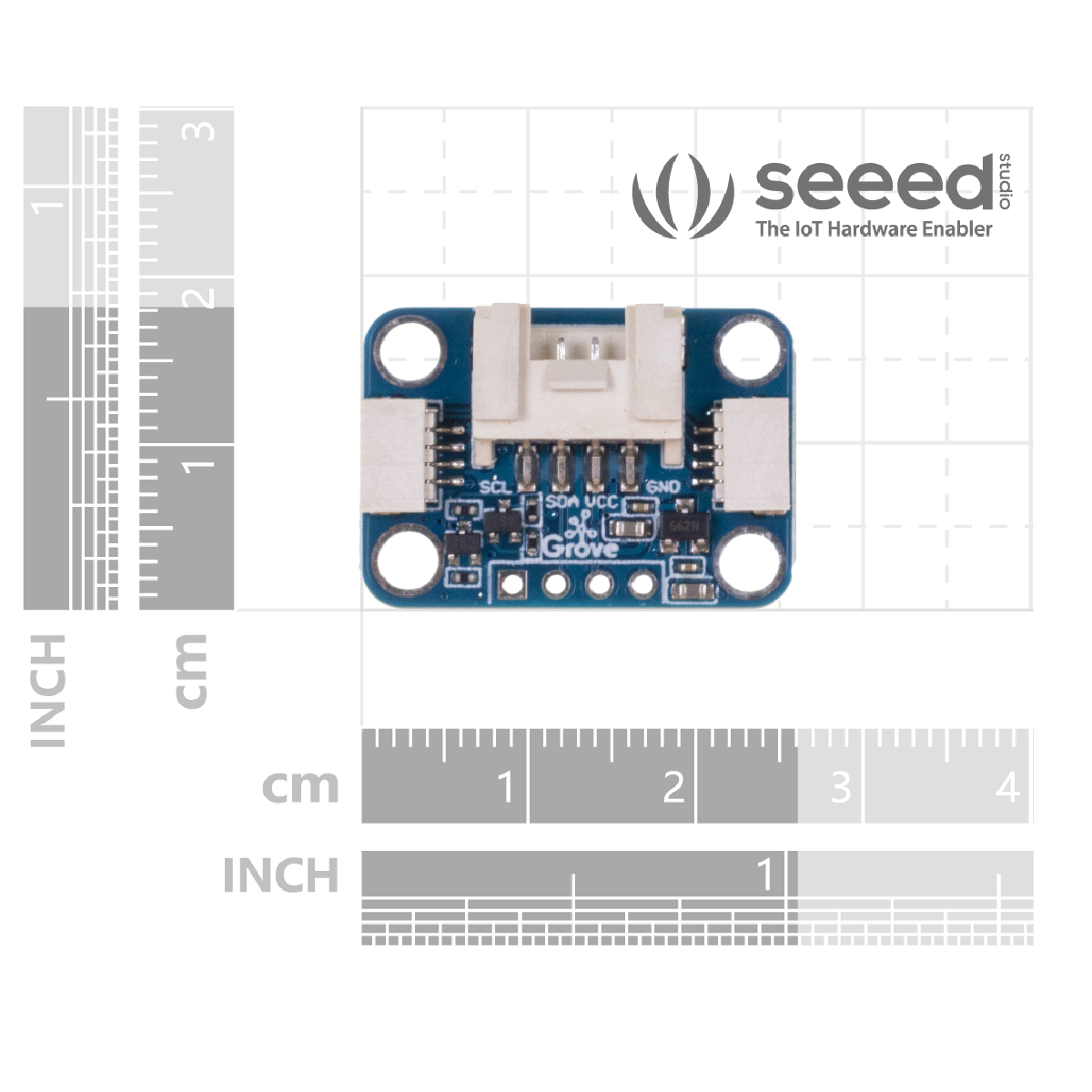

Appearance size

  • 25.4x17.8mm
