Seeed Studio Grove Thumb Joystick

Seeed Studio Grove Thumb Joystick

Regular price $9.00 USD
Regular price Sale price $9.00 USD
Sale Sold out
Shipping calculated at checkout.

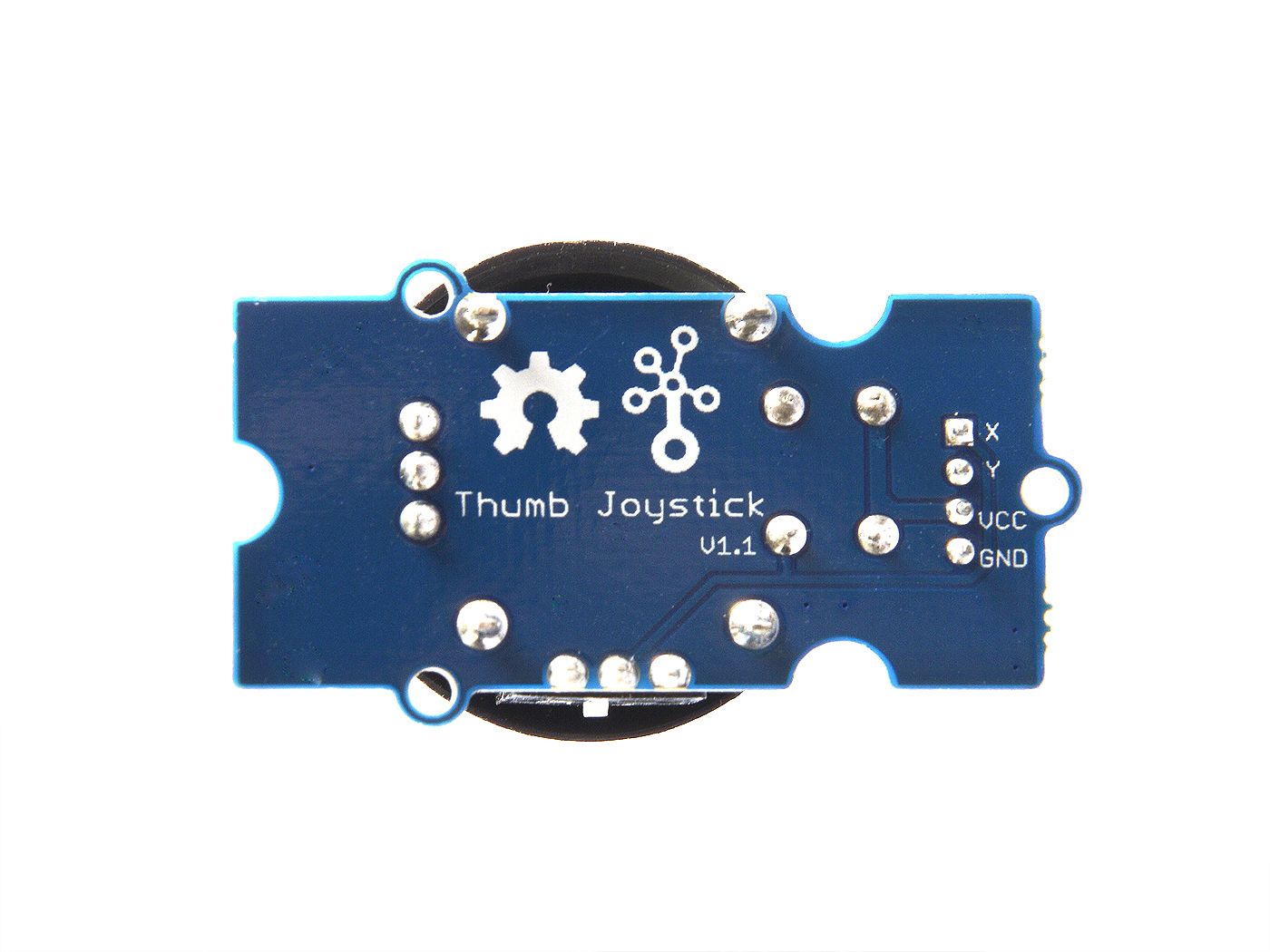

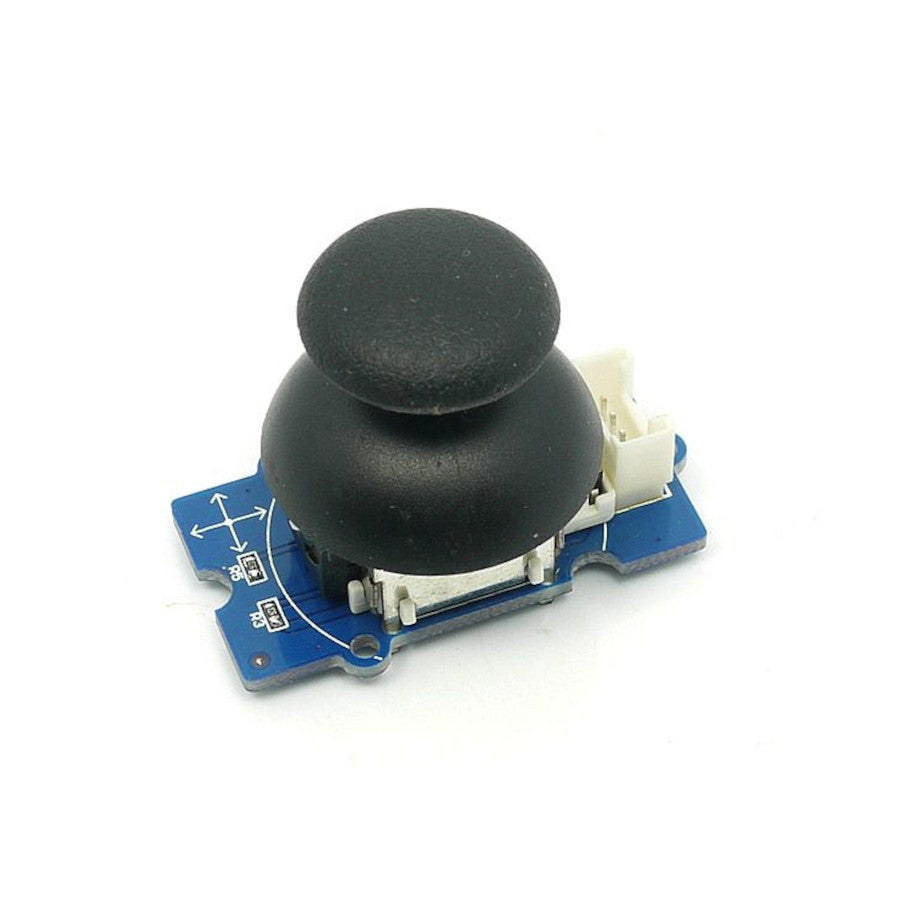

Grove - Thumb Joystick is a Grove compatible module which is very similar to the 'analog' joystick on PS2 controllers. Two direction movements will output different analog signals as they are actually two potentiometers. The resistor is ~10k for each.

The joystick also has a push button that can be used for special applications. When the module is in working mode, it outputs two analog values representing two directions. The value is restricted in a smaller range (e.g 200~700)compared to the normal joystick that is around 1023 when the button is pushed, so that the MCU can detect the action of pressing.
