Seeed Studio Grove I2C Motor Driver, TB6612FNG

The Grove - I2C Motor Driver (TB6612FNG) can drive two DC motors up to 12V/1.2A or drive one stepper motor up to 12V/1.2A. With the on-board MCU, it can work with Arduino easily via the Grove I2C interface.

This diver board is based on TB6612FNG, which is a driver IC for DC motor and stepper motor with output transistor in LD MOS structure with low ON-resistor. Two input signals, IN1 and IN2, can choose one of four modes such as CW, CCW, short brake, and stop mode.

Features

• On board MCU
• CW/CCW/short brake/stop function modes
• Built-in thermal shutdown circuit and low voltage detecting circuit
• Standby (Power save) system

Typical applications

• DC motor control
• Stepper motor control

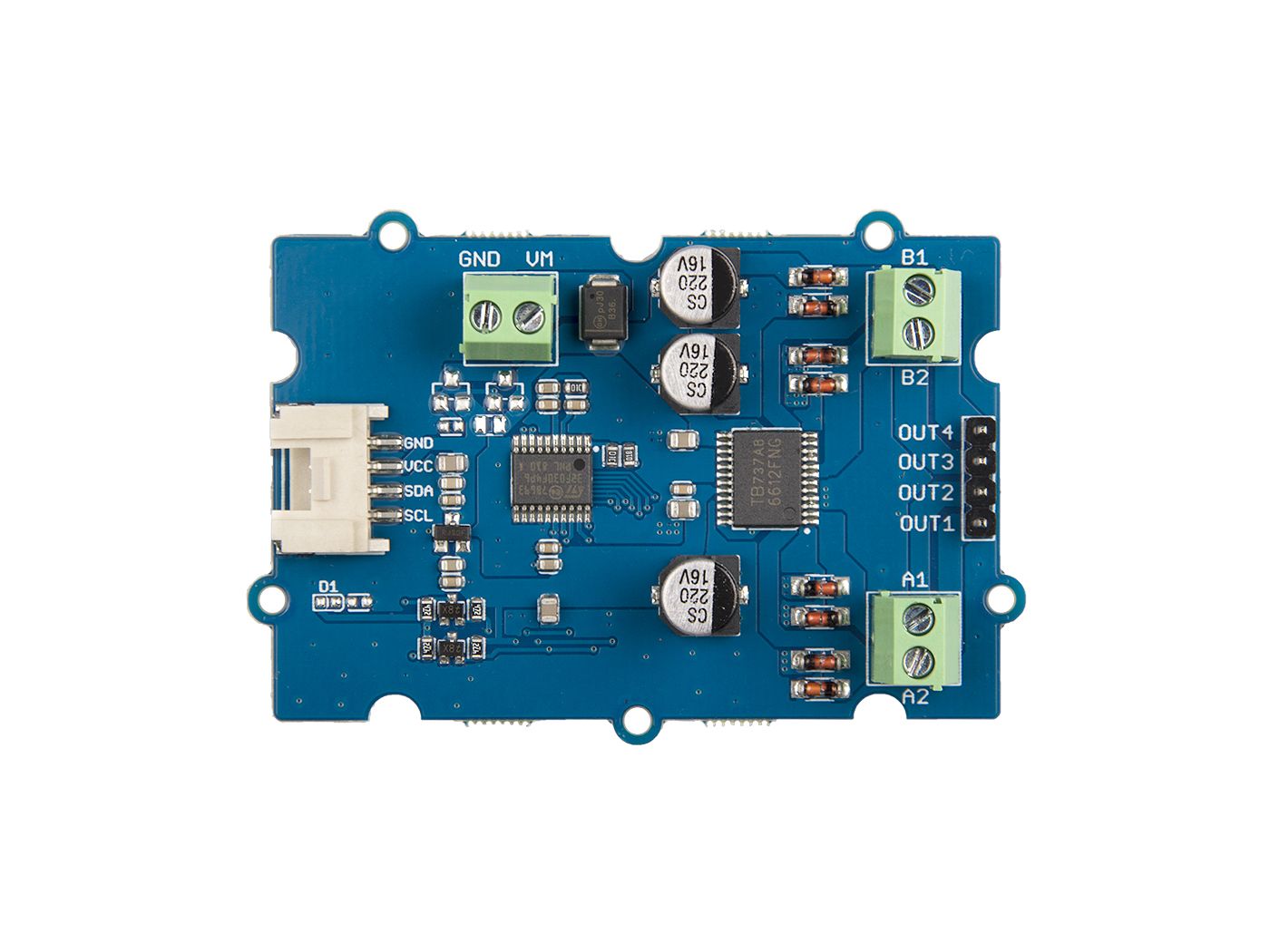

Pin Out
