Seeed Studio Grove Finger-clip Heart Rate Sensor with Shell

Seeed Studio Grove Finger-clip Heart Rate Sensor with Shell

Regular price $30.00 USD
Regular price Sale price $30.00 USD
Sale Sold out
Shipping calculated at checkout.

Grove - Finger-clip Heart Rate Sensor with shell is based on PAH8001EI-2G, a high performance and low power CMOS-process optical sensor with Green LED and DSP integrated serving as a Heart Rate Detection(HRD) sensor. This module is based on optical technology which measures the variation human blood movement in the vessel. Low power consumption and flexible power saving mode make it suitable for wearable device. Cause the heart rate sensor chip need high processing speed for the algorithm of heart rate data, this module integrate a STM32, reserved SWD interface allow users to reprogram the STM32. This module also provide tow bandages and 3D printing shell for finger test and arm test.

Features

  • Ultra-low power consumption power saving mode during time of no touch movement
  • With tow bandages and 3D printing shell
  • I2C standard interface
  • Intergrated chip-on-board LED with wavelength of 525nm

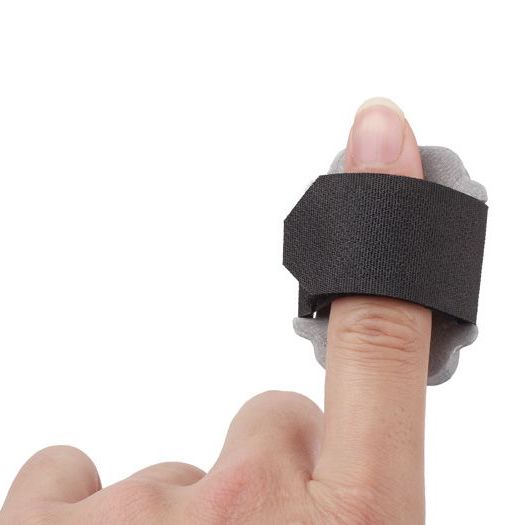

  • Suitable for finger or wrist

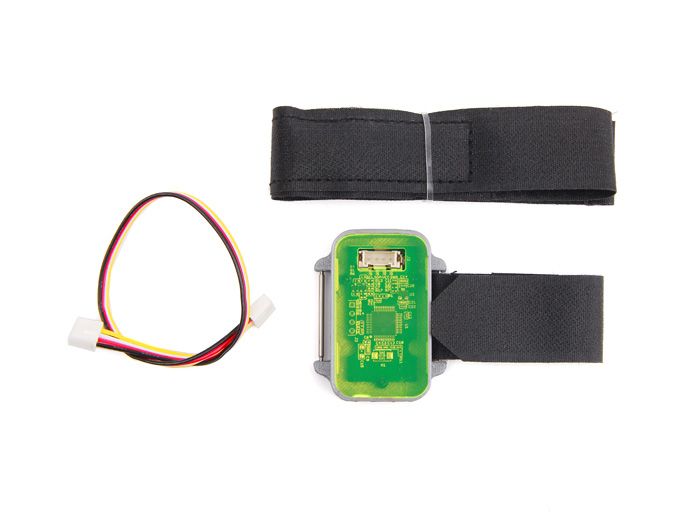

Part list

  • Grove - Finger-clip Heart Rate Sensor
  • Finger-clip Heart Rate Sensor shell
  • Bandage for finger

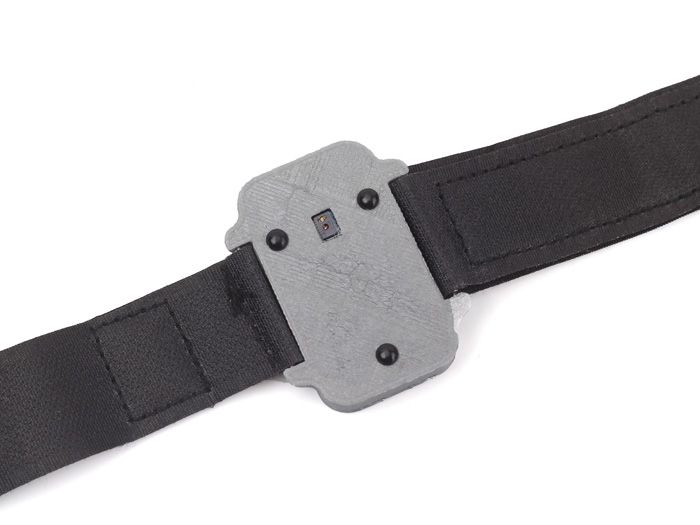

  • Bandage for arm
  • 26AWG Grove Cable

Specification

  • Working Voltage: 5V
  • SWD Interface
  • Low Power
  • Control Mode: IIC
  • Operating Temperature: -20 ~ +60℃
