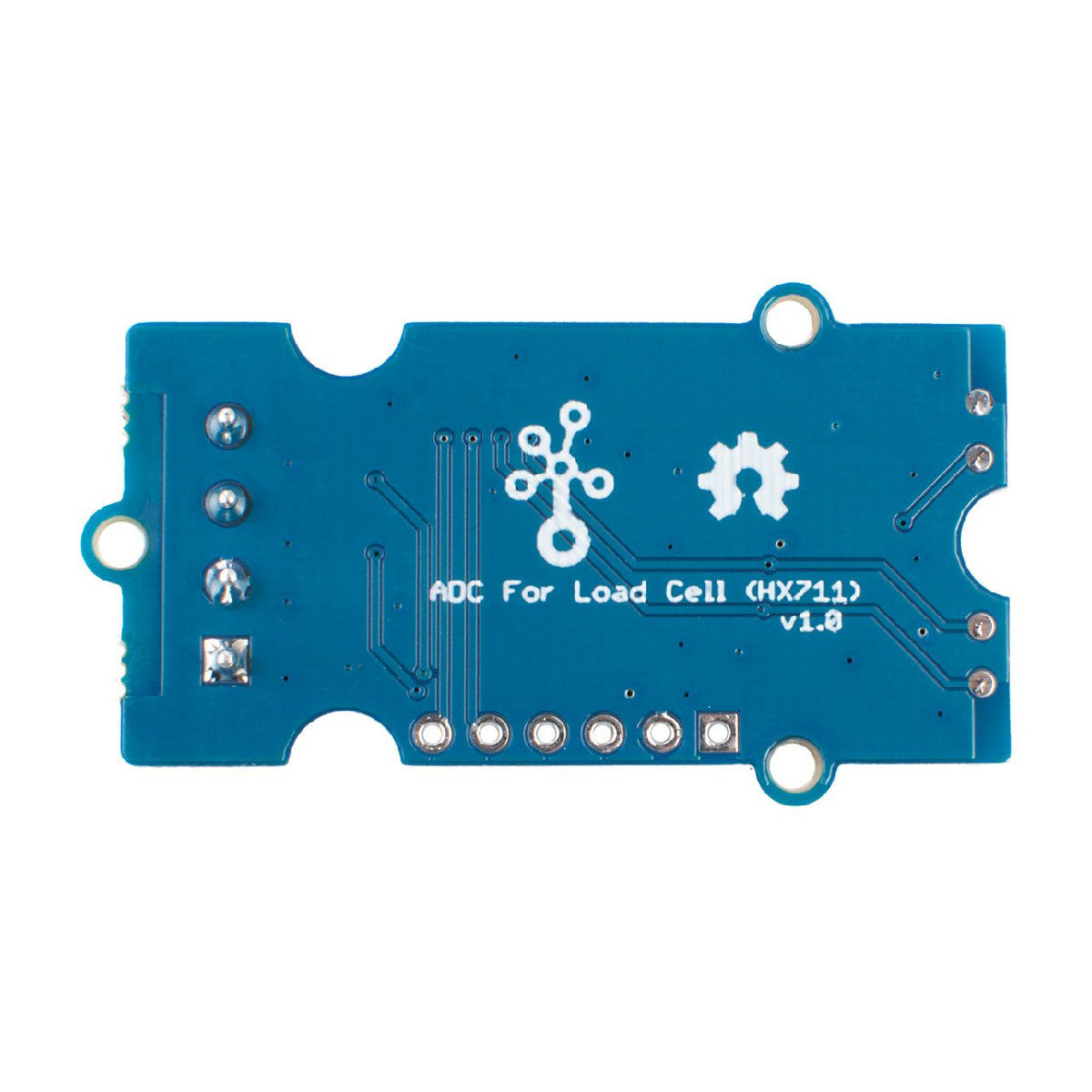

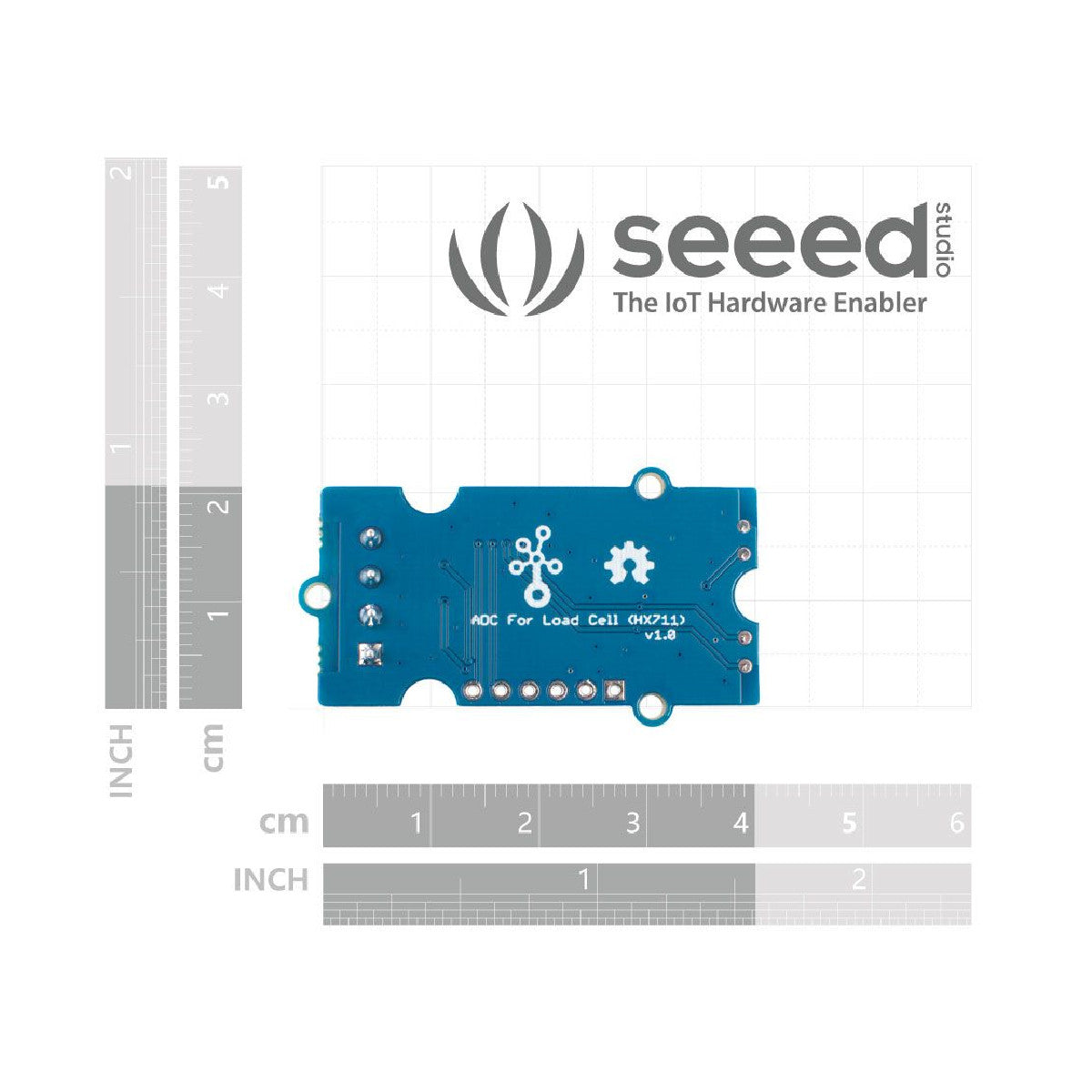

Seeed Studio Grove ADC for Load Cell, HX711

Seeed Studio Grove ADC for Load Cell, HX711

Regular price $10.00 USD
Regular price Sale price $10.00 USD
Sale Sold out
Shipping calculated at checkout.

Well, you can find more than a dozen load cells, however, it is never going to be easy to use these load cells to measure weight. Let's see, you need to find a proper ADC and stable power source, then do some wiring and calibration, at last, you still need to do the coding... Time is long, life is short, Grove - ADC for Load Cell is born to save your time and make it easy to use load cells. How easy? Easy and peasy!

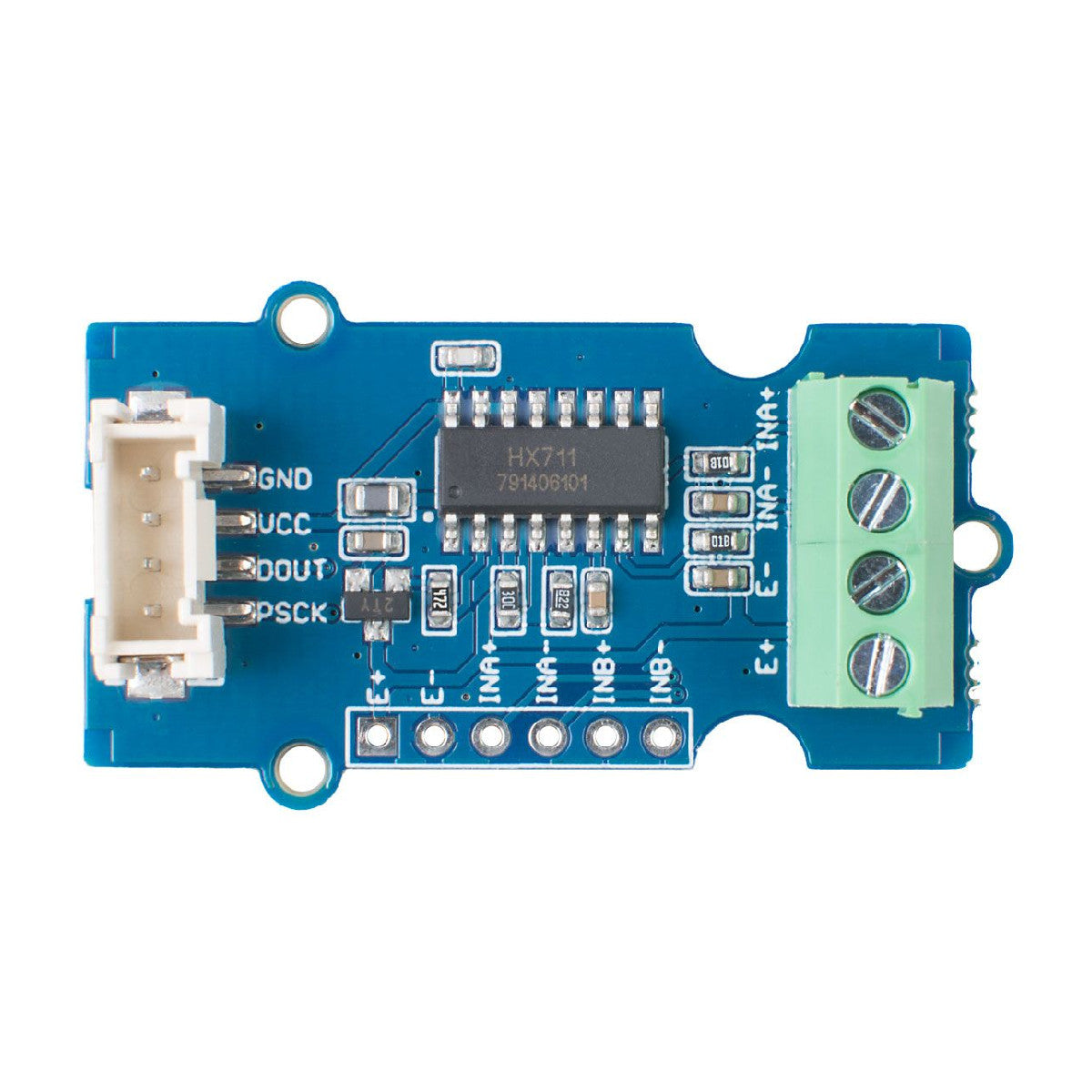

The Grove - ADC for Load Cell (HX711) is a 24-bit A/D converter designed specifically for load cells. It contains an on-chip low noise programmable amplifier with an optional gain of 32, 64 and 128. The HX711 chip integrates a regulated power supply, an on-chip clock oscillator, and other peripheral circuits, which have the advantages of high integration, fast response, and strong anti-interference.

With the Grove connector and 4-pin screw terminal, it becomes quite easy to connect the load cell and microcontroller, no soldering required. You can build your own Arduino weigh sensor system in just a few simple steps.

Features

  • Working voltage: 2.6V--5.5V (Note: The module measurement accuracy is related to the supply voltage. The higher the voltage, the higher the accuracy.)
  • Working current: <1.5mA
  • Detection accuracy: 24 bits
  • Optional 10SPS or 80SPS output data rate
  • Optional gain: 32 for Channel B / 64 and 128 for Channel
