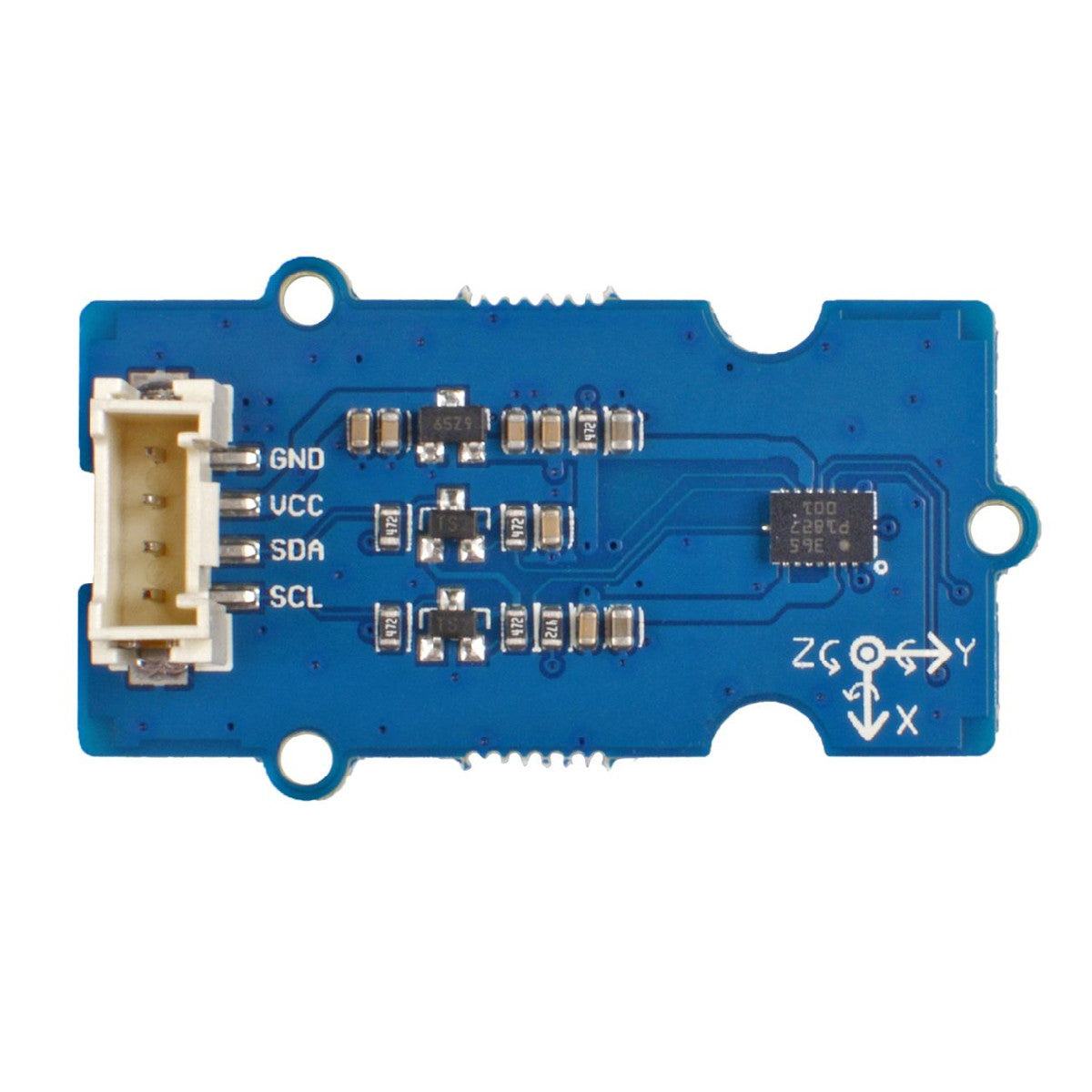

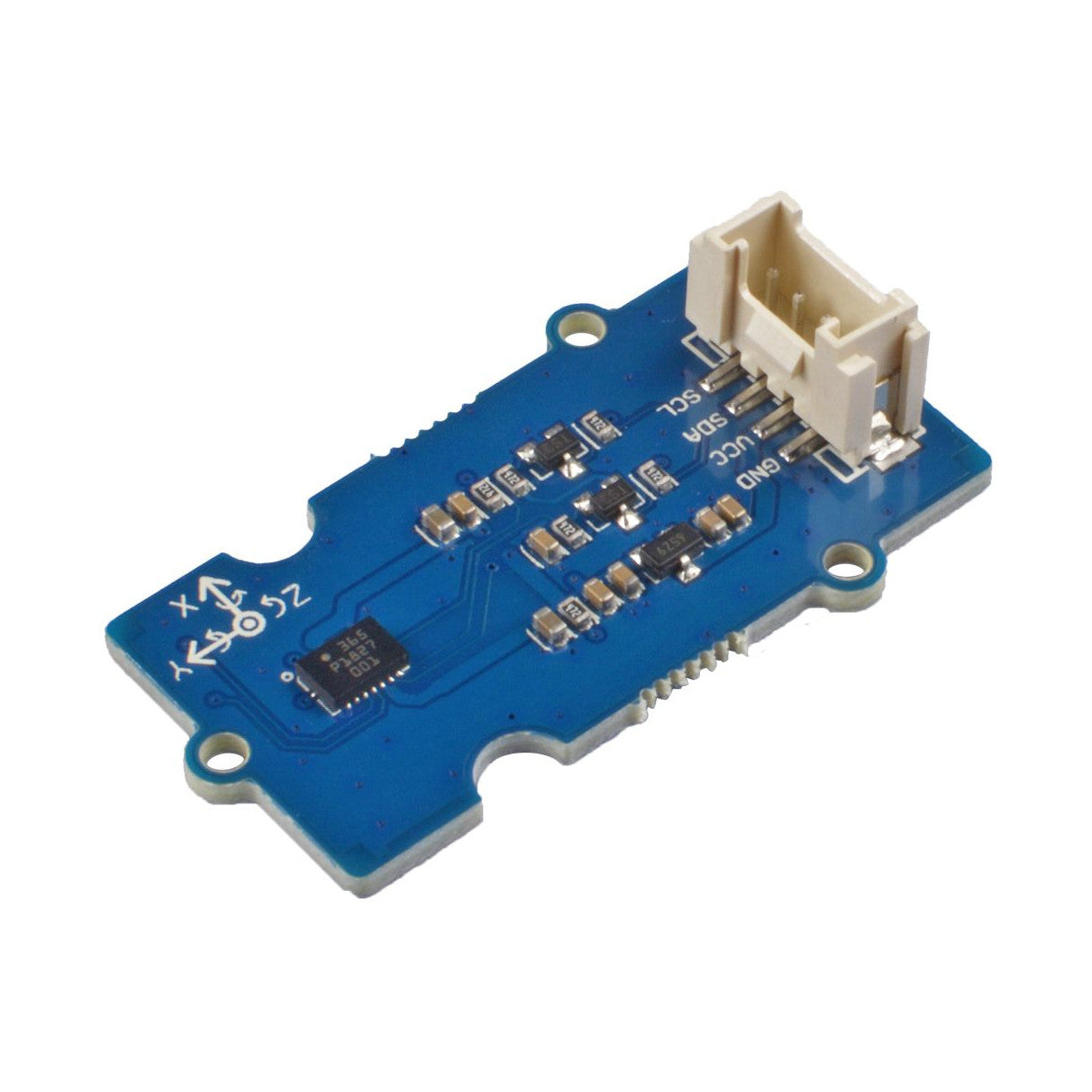

Seeed Studio Grove 6-Axis Accelerometer and Gyroscope, BMI088

Seeed Studio Grove 6-Axis Accelerometer and Gyroscope, BMI088

Regular price $37.00 USD
Regular price Sale price $37.00 USD
Sale Sold out
Shipping calculated at checkout.

The Grove - 6-Axis Accelerometer & Gyroscope (BMI088) is a 6 DoF (degrees of freedom) High-performance Inertial Measurement Unit (IMU) .This sensor is based on BOSCH BMI088, which is a high-performance IMU with high vibration suppression. The 6-axis sensor combines a 16 bit triaxial gyroscope and a 16 bit triaxial accelerometer. Specially, you can use this sensor on the drone and robotics application in demanding environments.

Features

  • The BM1088 is designed for drones, robotics and industry applications with challenging performance requirements.
  • Wide acceleration measurment range(up to 24g)
  • The accelerometer features a low TCO of 0.2 mg/K and low spectral noise of only 230 pg/sqrt(Hz) in the widest measurement range of ± 24 g

Typical Applications

  • Drones and flying toys
  • Industrial robots, hover boards
  • Domestic applications(e.g. vacuum cleaner, social robots,etc.)

Technical details

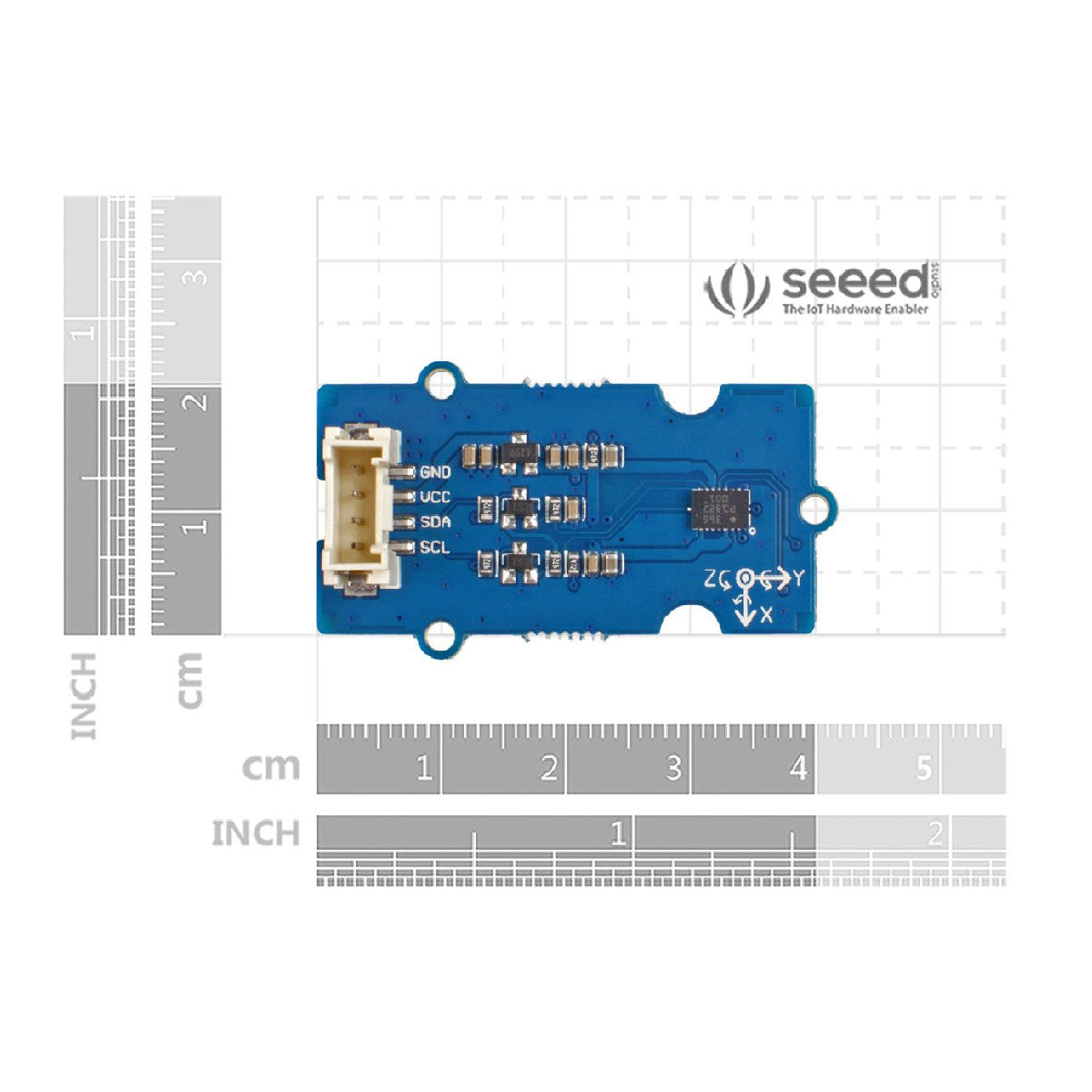

Dimensions40mm x20mm x7mm
WeightG.W 9.4g
BatteryExclude
Operating Voltage3.3V / 5V
Measurement range and sensitivity
Accelerometer±3g @10920 LSB/g
 ±6g @5460 LSB/g
 ±12g @2730 LSB/g
 ±24g @1365 LSB/g
Gyroscope±125°/s @262.1 LSB/°/s
 ±250°/s @131.1 LSB/°/s
 ±500°/s @65.5 LSB/°/s
 ±1000°/s @32.8 LSB/°/s
 ±2000°/s @16.4 LSB/°/s
Operating Temperature Range-40℃ ~ +85℃

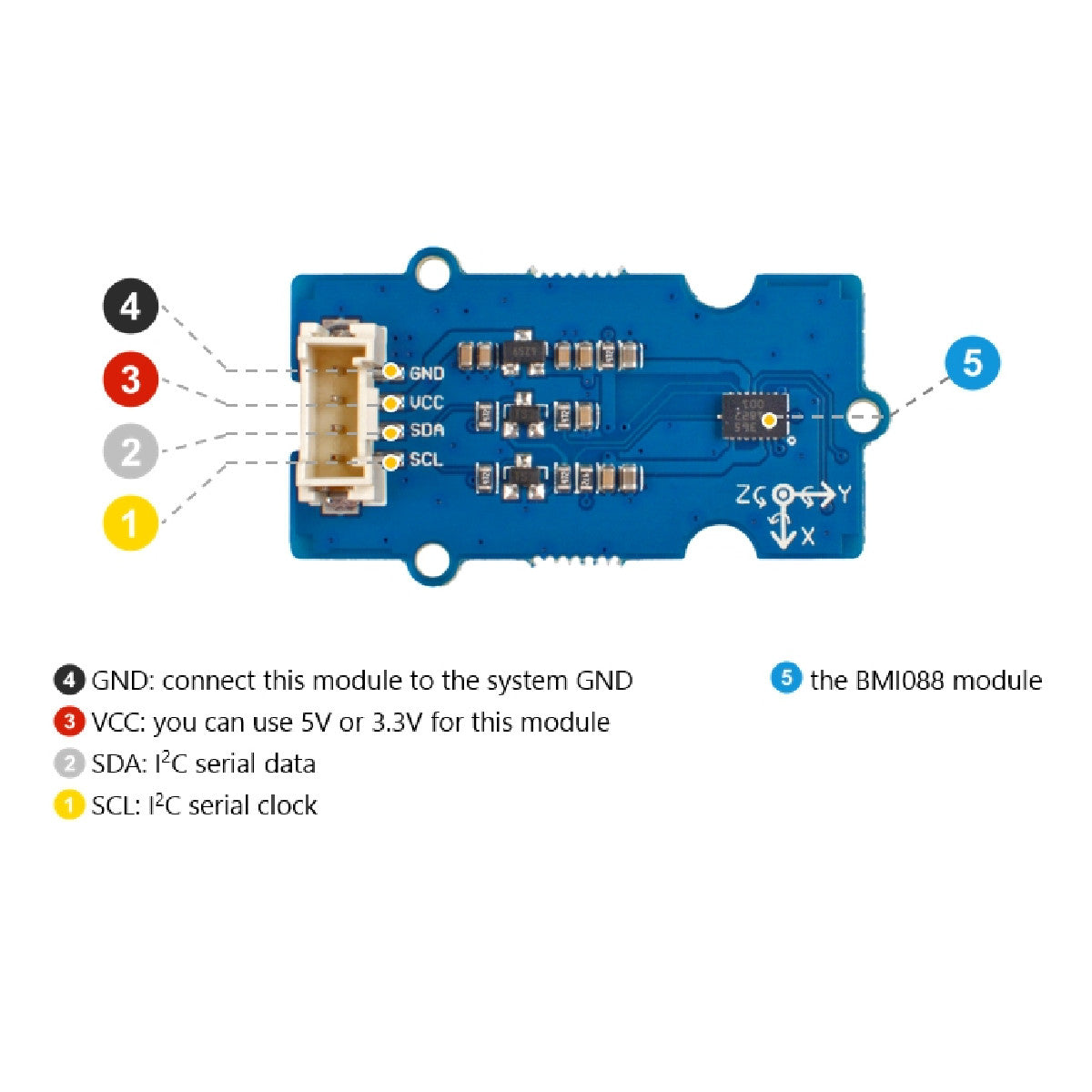

External interfaceI2C

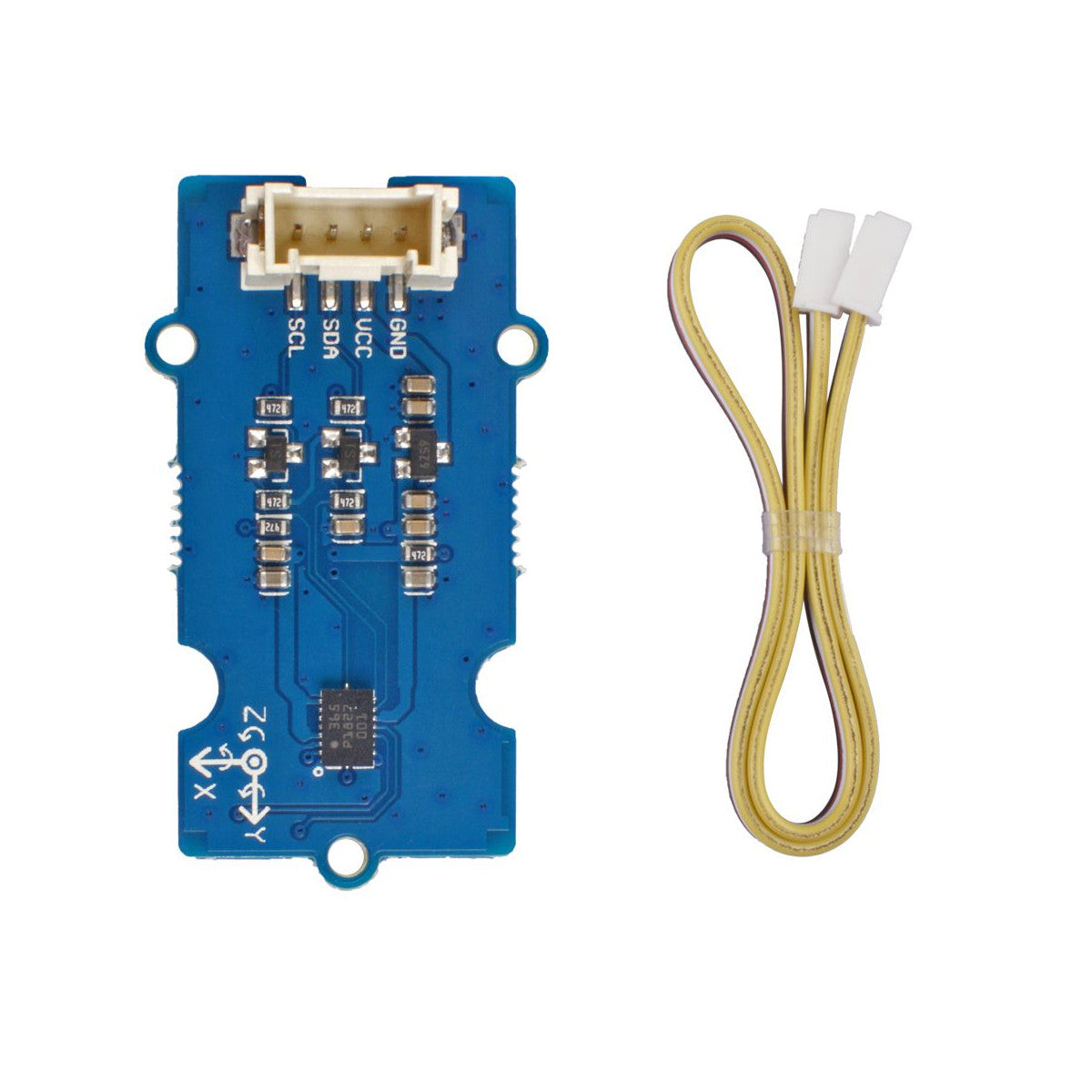

Part List

Grove - 6-Axis Accelerometer&Gyroscope(BMI088)
Grove Cable

ECCN/HTS

HSCODE9031900090
USHSCODE90230000
UPC841454121459
