RFID-Kit RC522 with MIFARE Transponder and Card
RFID-Kit RC522 with MIFARE Transponder and Card
Regular price
$7.00 USD
Regular price
Sale price
$7.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

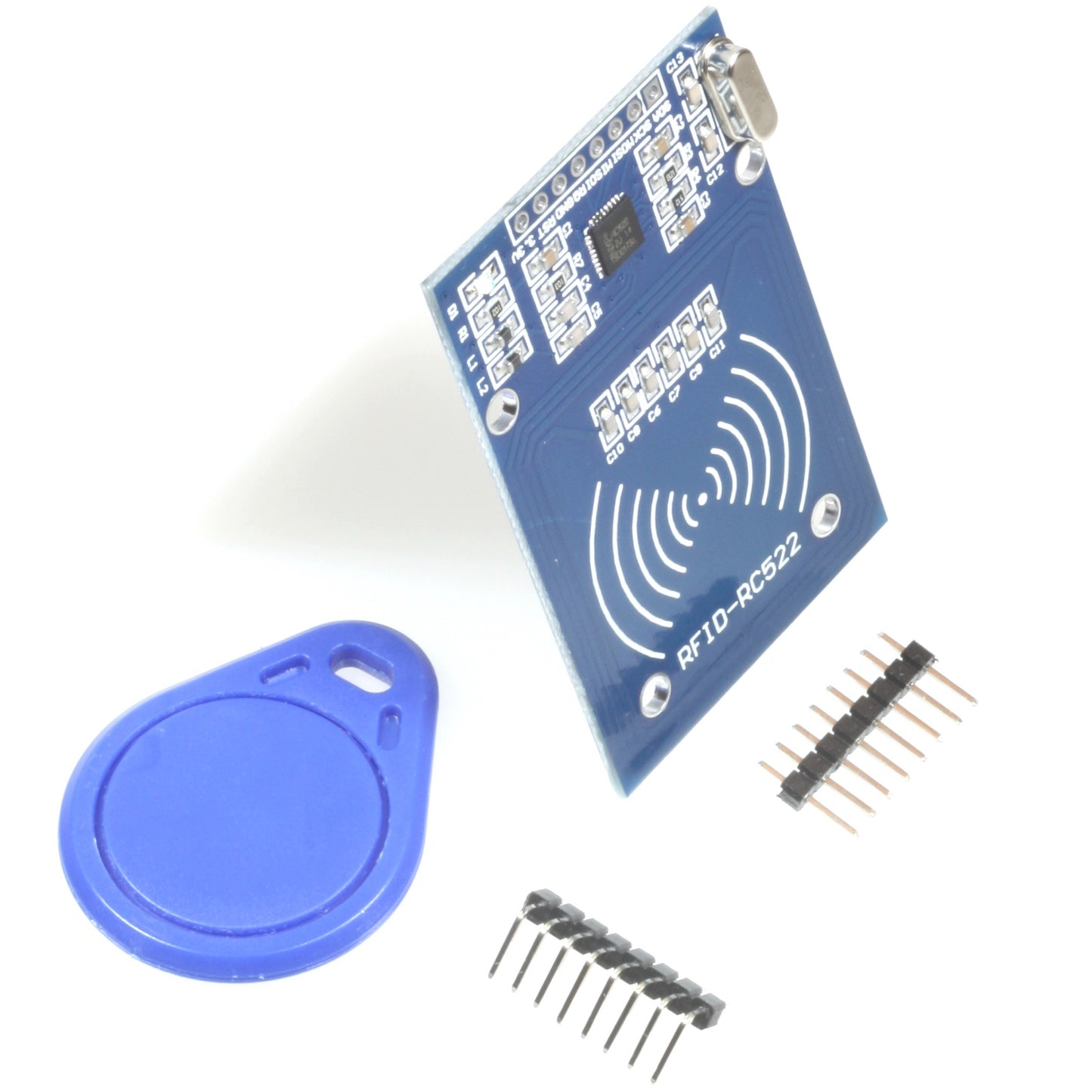

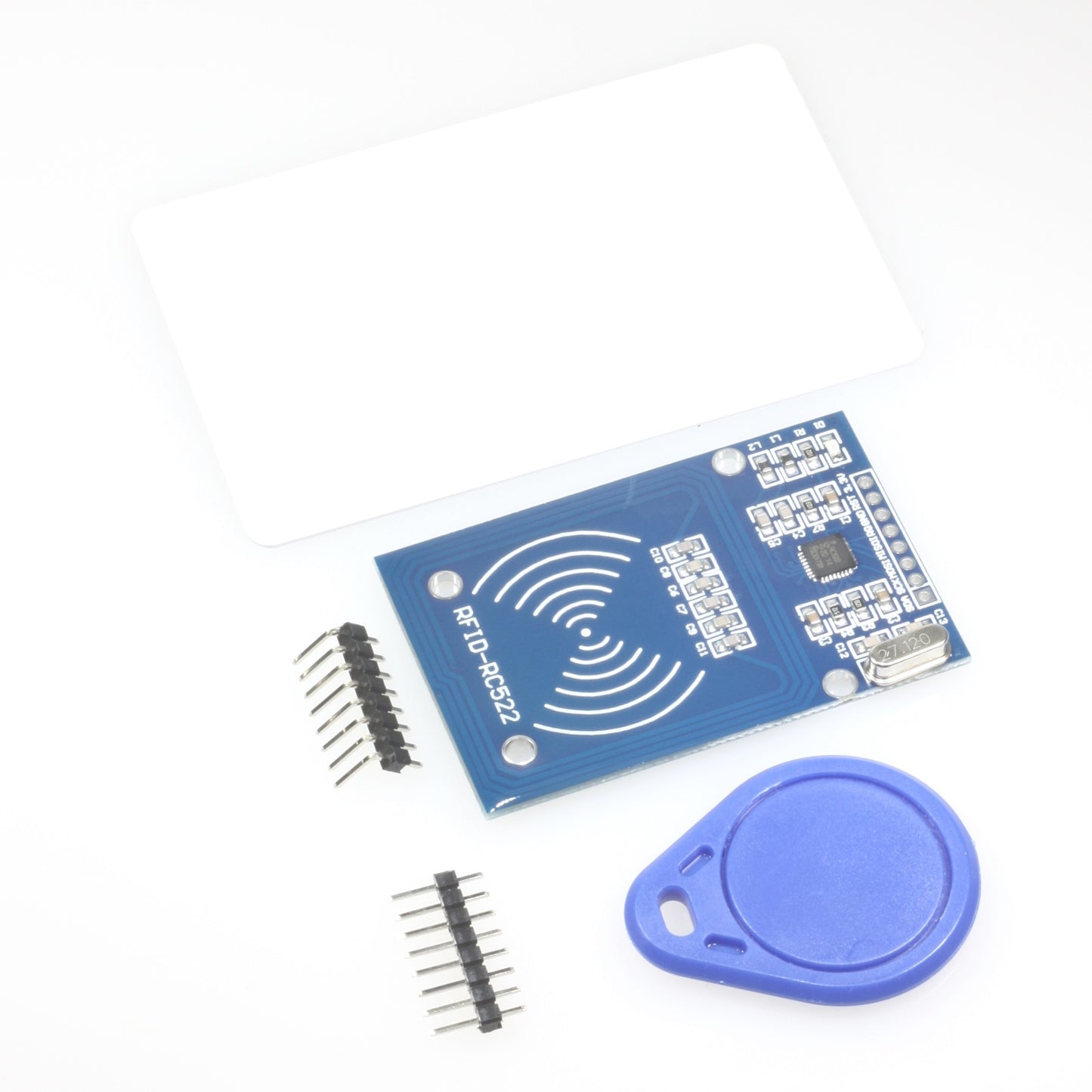

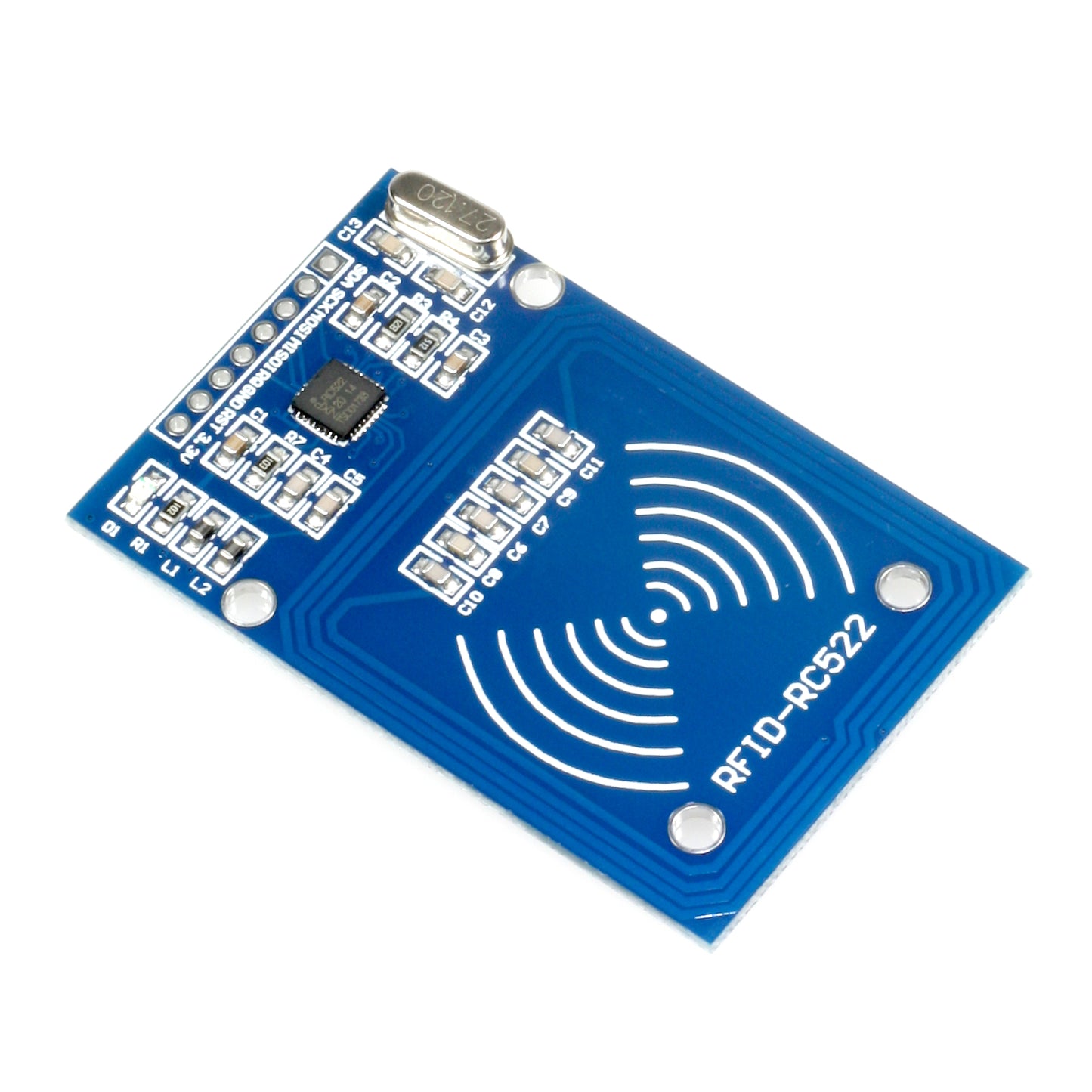

The RFID-RC522 module is based on the Philips MF522-AN board. The displayed board, S50 card, S50 transponders / key chain and two pin headers are included in the delivery.
Specification:
| Current: | 13 - 26 mA at 3.3 V |
| Idle-Current: | 10 - 13 mA at 3.3 V |
| Sleep-Current: | 80 µA |
| Peak Current: | 30 mA |
| Frequence: | 13.56 MHz |
| Supported Formats: | S50, S70 Ultralight, Pro, DESFire |
| Dimension: | 60 mm x 40 mm |
| Interface: | SPI |
| Data Rate: | 10 Mbit/s max. |
