Pro Micro Module with ATmega32U4, 5V, 16MHz, Arduino compatible
Pro Micro Module with ATmega32U4, 5V, 16MHz, Arduino compatible
Regular price
$12.00 USD
Regular price
Sale price
$12.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

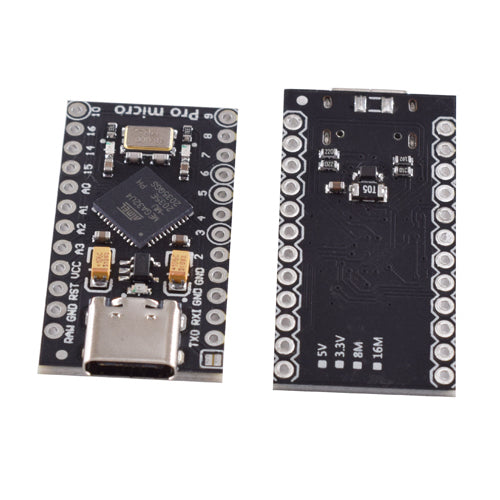

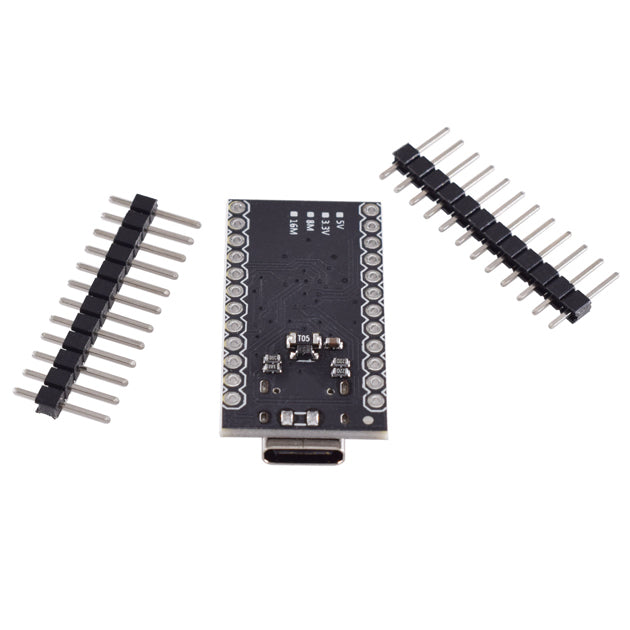

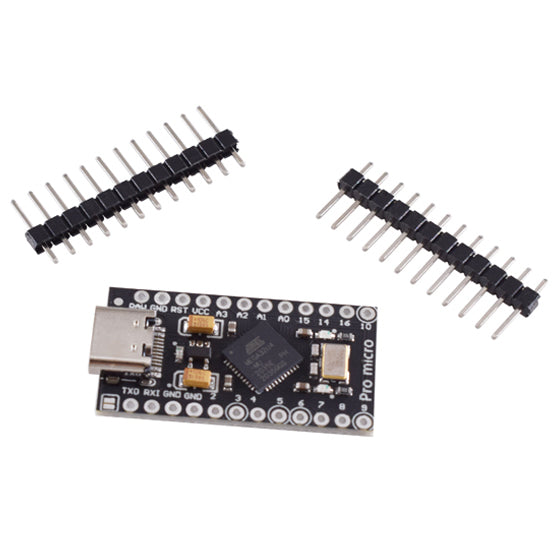

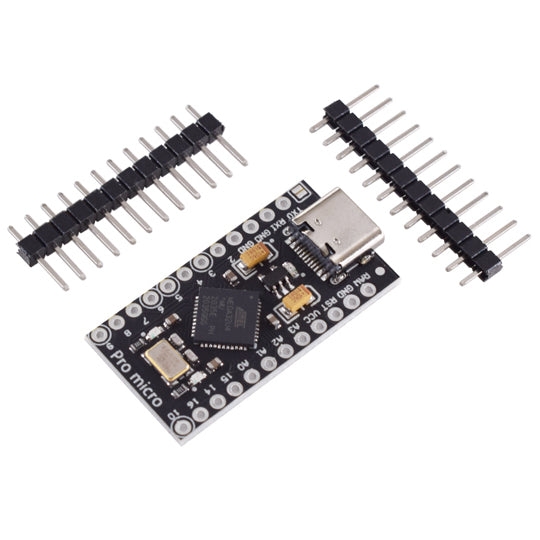

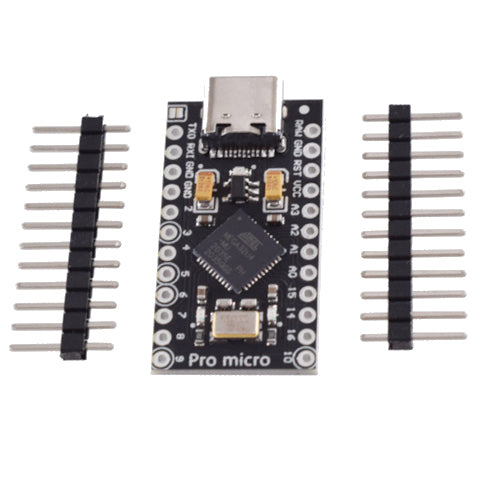

The Pro Micro module is equipped with an Atmel AVR ATmega32U4 microcontroller with an integrated USB controller. The module is compatible with Arduino Leonardo.
Please note that the unregulated input voltages need to be connected to the RAW pin. A regulated 5V voltage can directly be connected to the VCC port.
Specification:
| Microcontroller: | ATmega32U4 |
| Operating Voltage: | 5 V |
| Input Voltage: | 5 - 12 V |
| Digital I/O Pins: | 12 (of which 5 provide PWM output) |
| Analog Input Pins: | 4 |
| DC Current per I/O Pin: | 40 mA |
| Flash Memory: | 32 KB (of which 4 KB used by bootloader) |
| SRAM | 2.5 KB |
| EEPROM: | 1 KB |
| Clock Speed: | 16 MHz |
