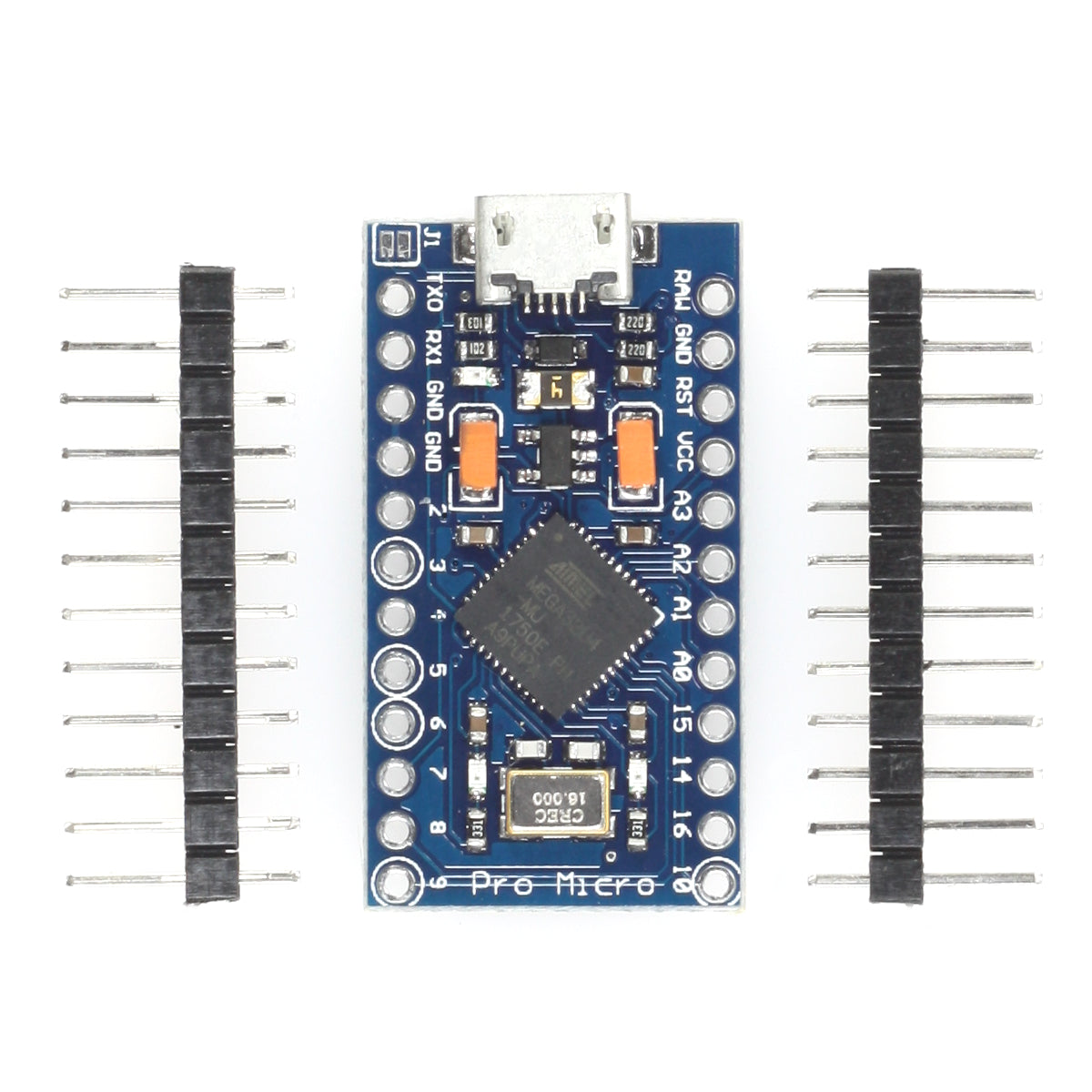

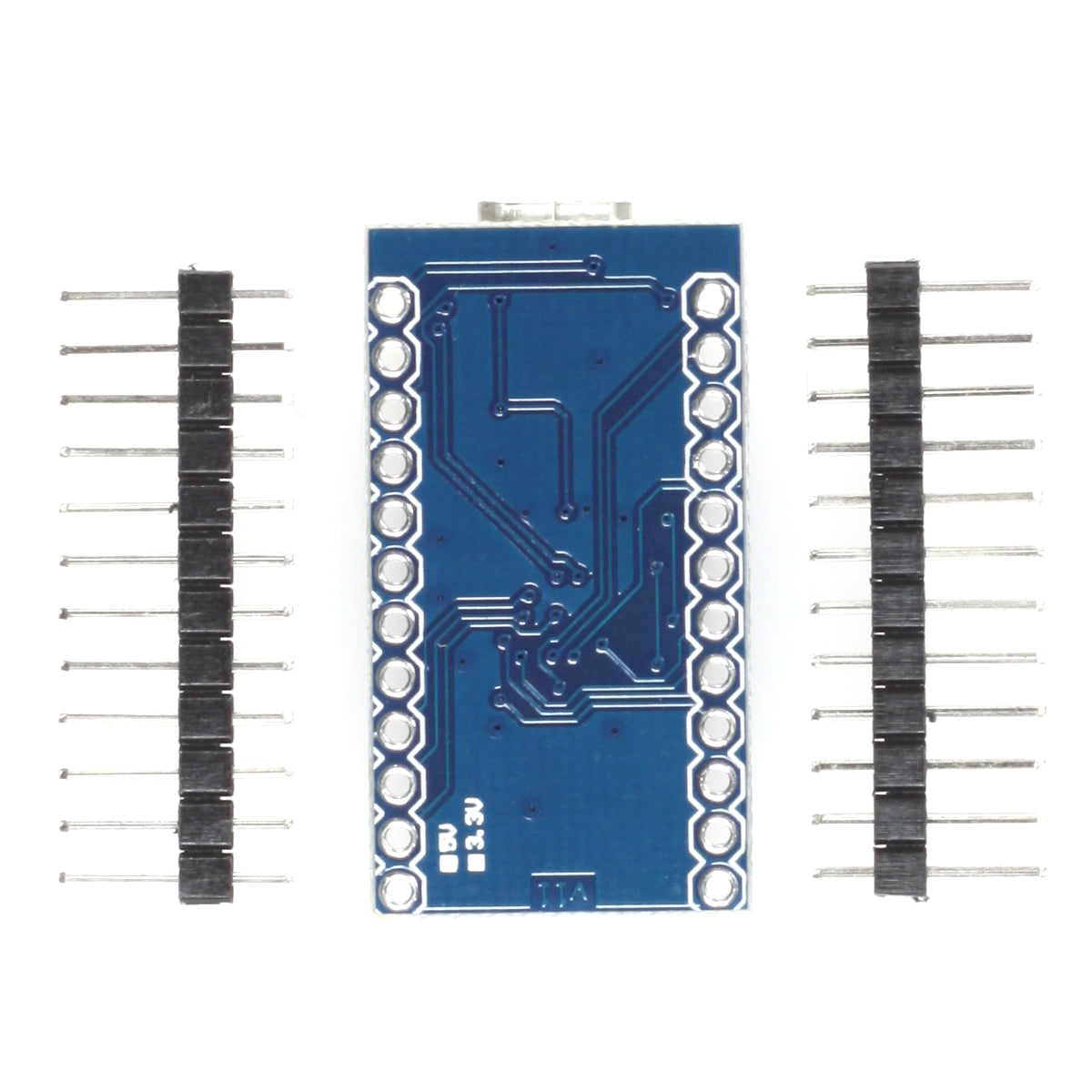

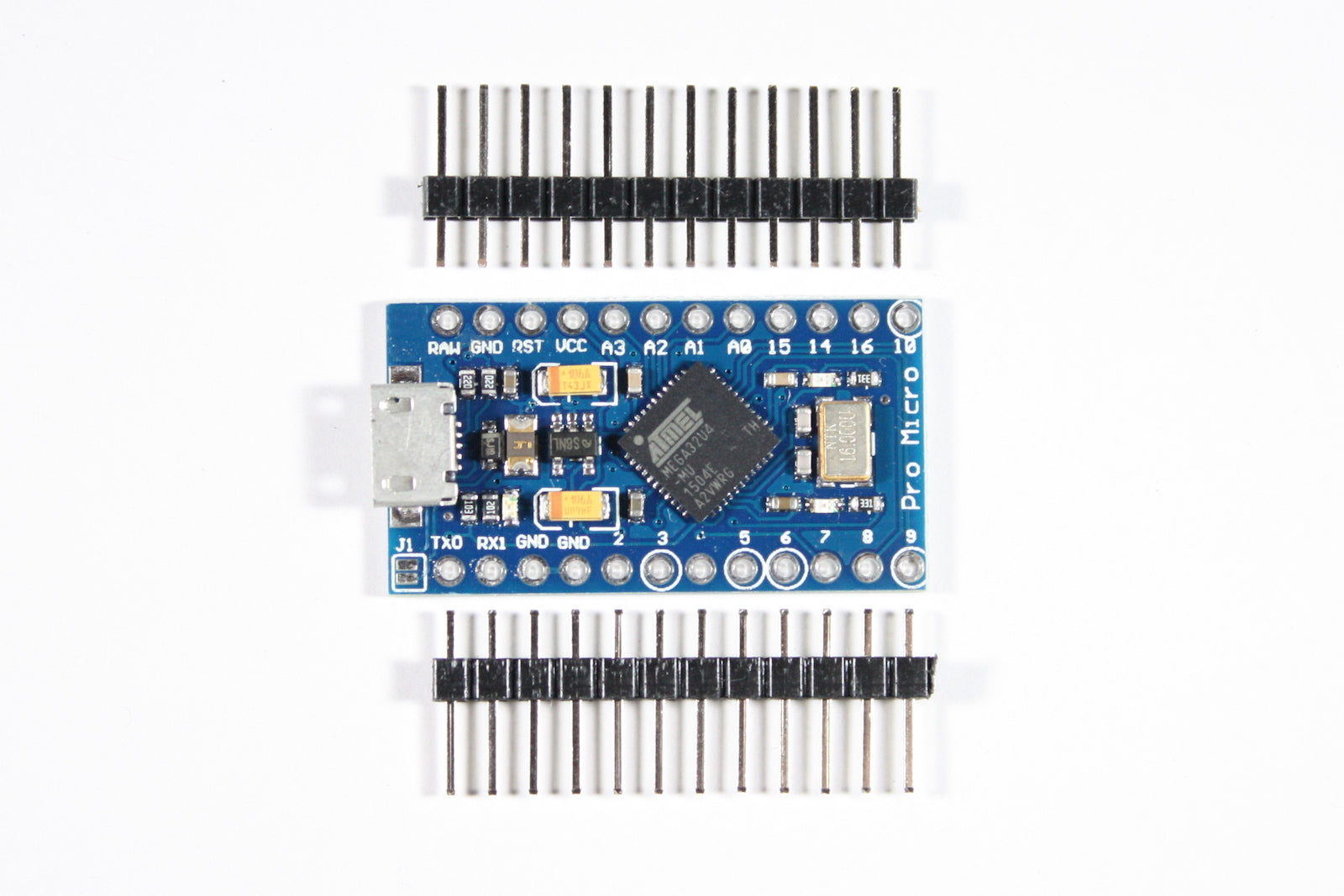

Pro Micro Module with ATmega32U4, 5V, 16MHz, Arduino compatible

Pro Micro Module with ATmega32U4, 5V, 16MHz, Arduino compatible

Regular price $11.00 USD
Regular price Sale price $11.00 USD
Sale Sold out
Shipping calculated at checkout.

The Pro Micro module is equipped with an Atmel AVR ATmega32U4 microcontroller with an integrated USB controller. The module is compatible with Arduino Leonardo.

Please note that the unregulated input voltages need to be connected to the RAW pin. A regulated 5V voltage can directly be connected to the VCC port.

Specification:

Microcontroller:ATmega32U4
Operating Voltage:5 V
Input Voltage:5 - 12 V
Digital I/O Pins:12 (of which 5 provide PWM output)
Analog Input Pins:4
DC Current per I/O Pin:40 mA
Flash Memory:32 KB (of which 4 KB used by bootloader)
SRAM2.5 KB
EEPROM:1 KB
Clock Speed:16 MHz
