Nano V3 Module with USB-C, ATmega328P, 5V, 16MHz, Arduino compatible
Nano V3 Module with USB-C, ATmega328P, 5V, 16MHz, Arduino compatible
Regular price
$10.00 USD
Regular price
Sale price
$10.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

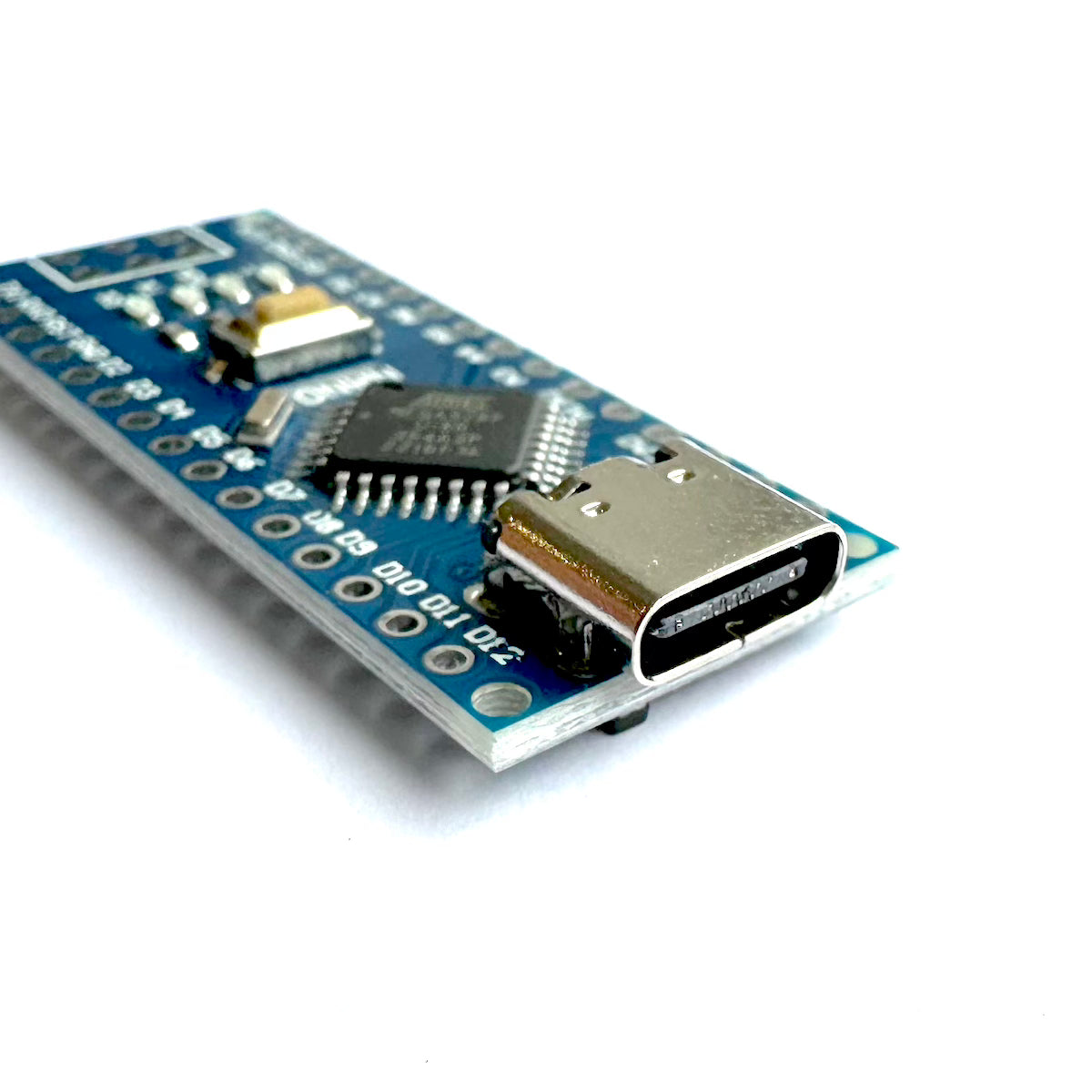

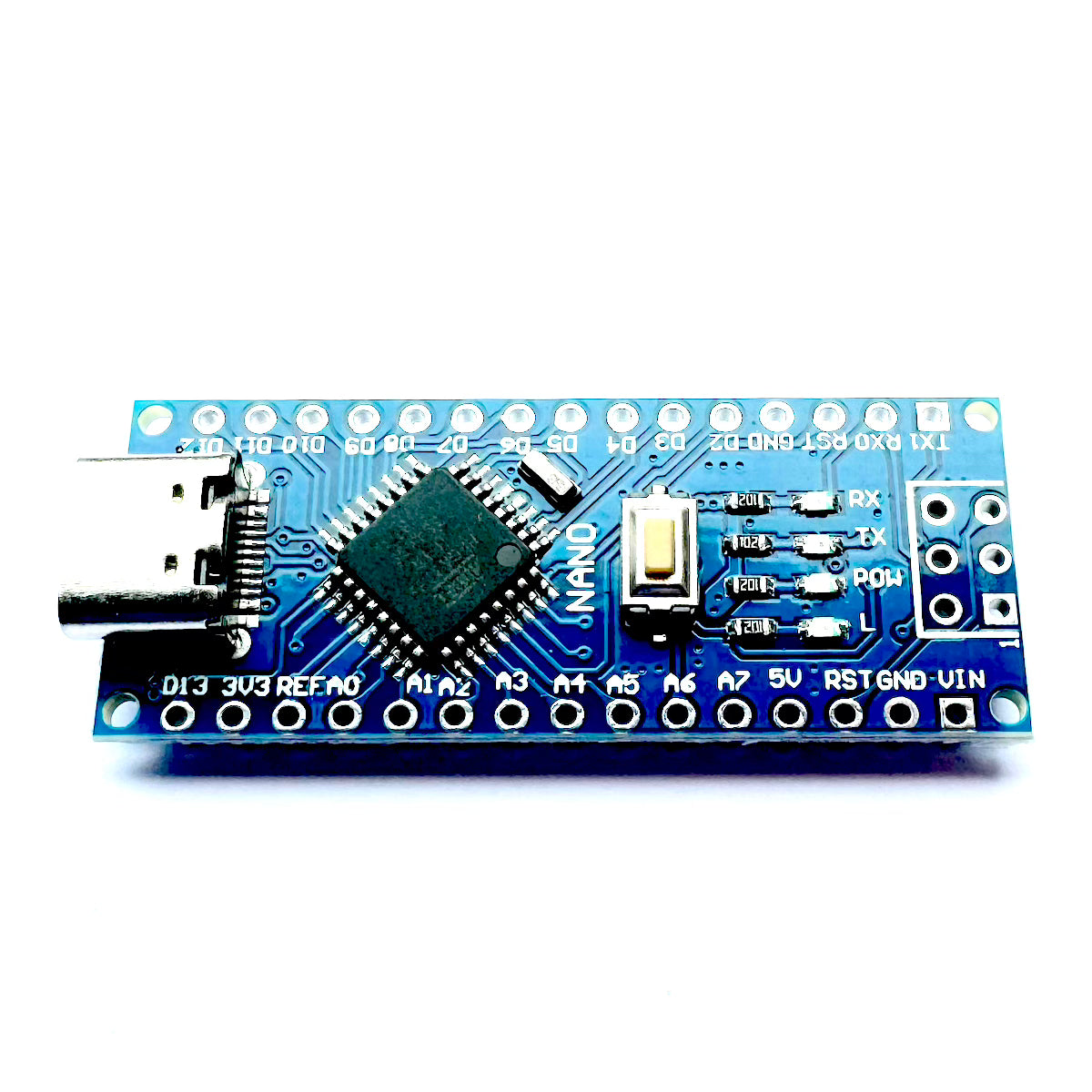

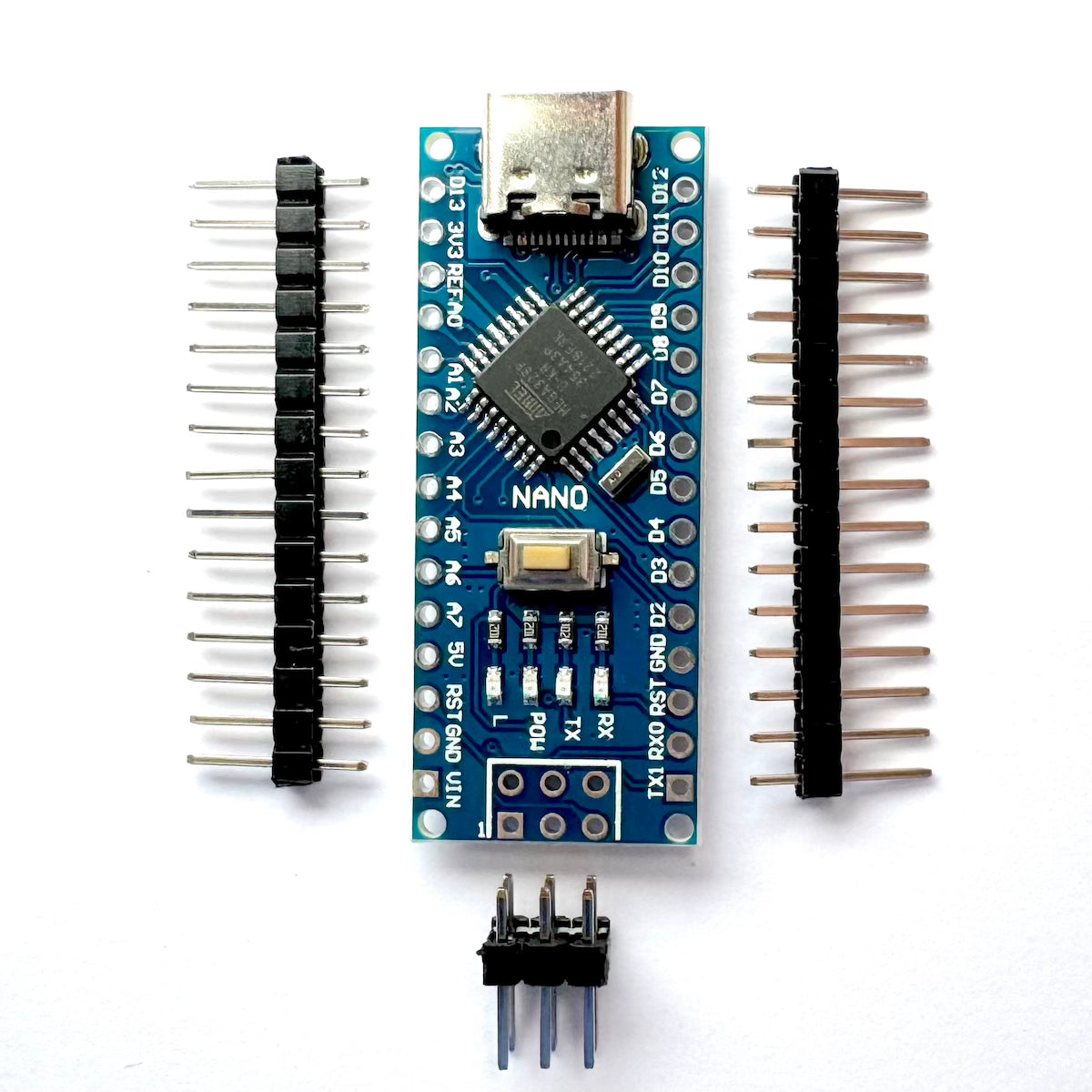

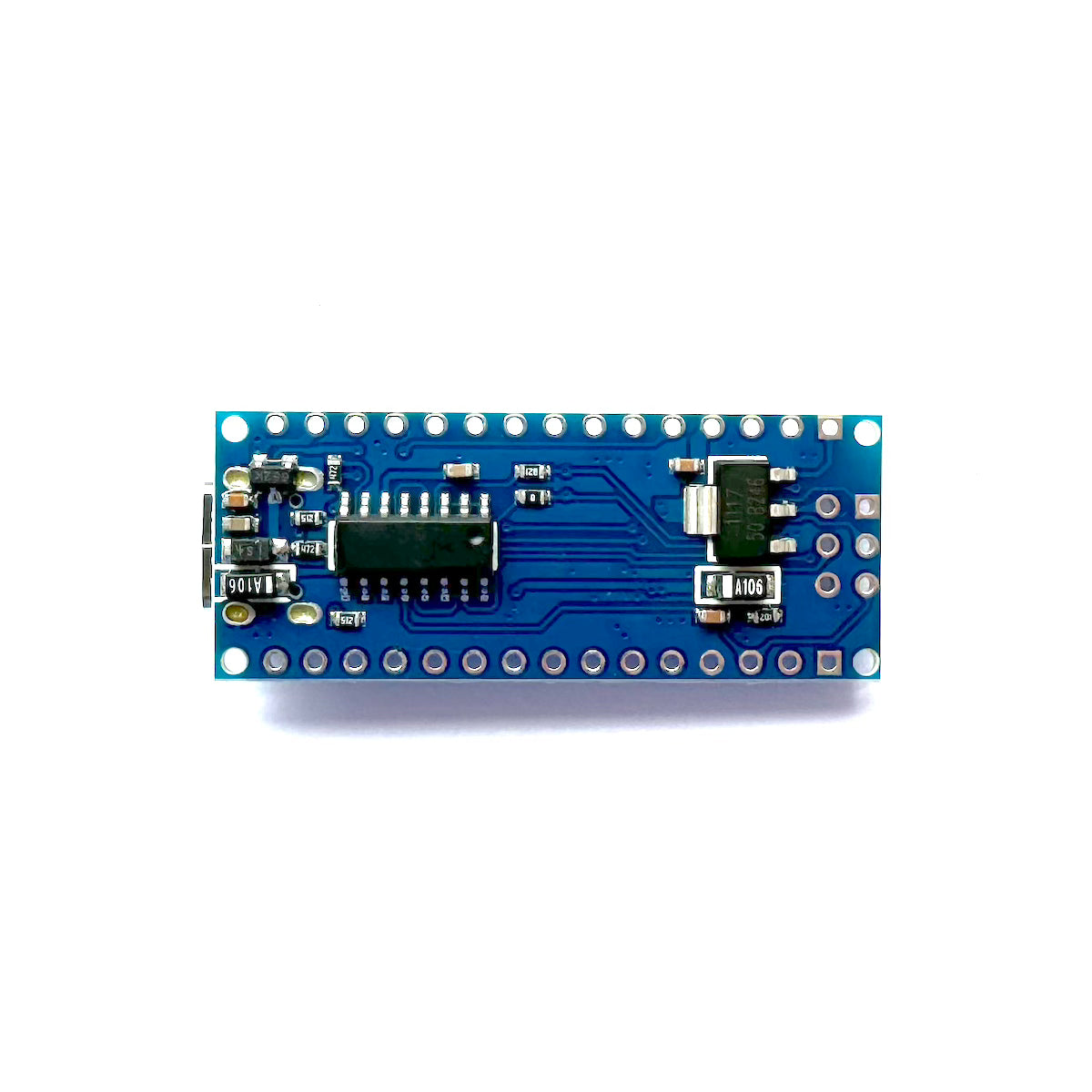

The Nano V3 module is equipped with an Atmel AVR ATmega328P microcontroller and has a USB-C port. The module is fully compatible with Arduino Nano.
Please note that the boards have a CH340G USB-Controller. They are recognized on Linux without any additional drivers. macOS and Windows users may need to install an additional driver available from our driver page.
Specification:
| Microcontroller: | ATmega328 |
| Operating Voltage: | 5 V |
| Input Voltage: | 5 - 12 V |
| Digital I/O Pins: | 22 (of which 6 provide PWM output) |
| Analog Input Pins: | 8 |
| DC Current per I/O Pin: | 40 mA |
| Flash Memory: | 32 KB (of which 2 KB used by bootloader) |
| SRAM | 2 KB |
| EEPROM: | 1 KB |
| Clock Speed: | 16 MHz |
