Nano V3 Module with ATmega328P, 5V, 16MHz, Arduino compatible
Nano V3 Module with ATmega328P, 5V, 16MHz, Arduino compatible
Regular price
$10.00 USD
Regular price
Sale price
$10.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

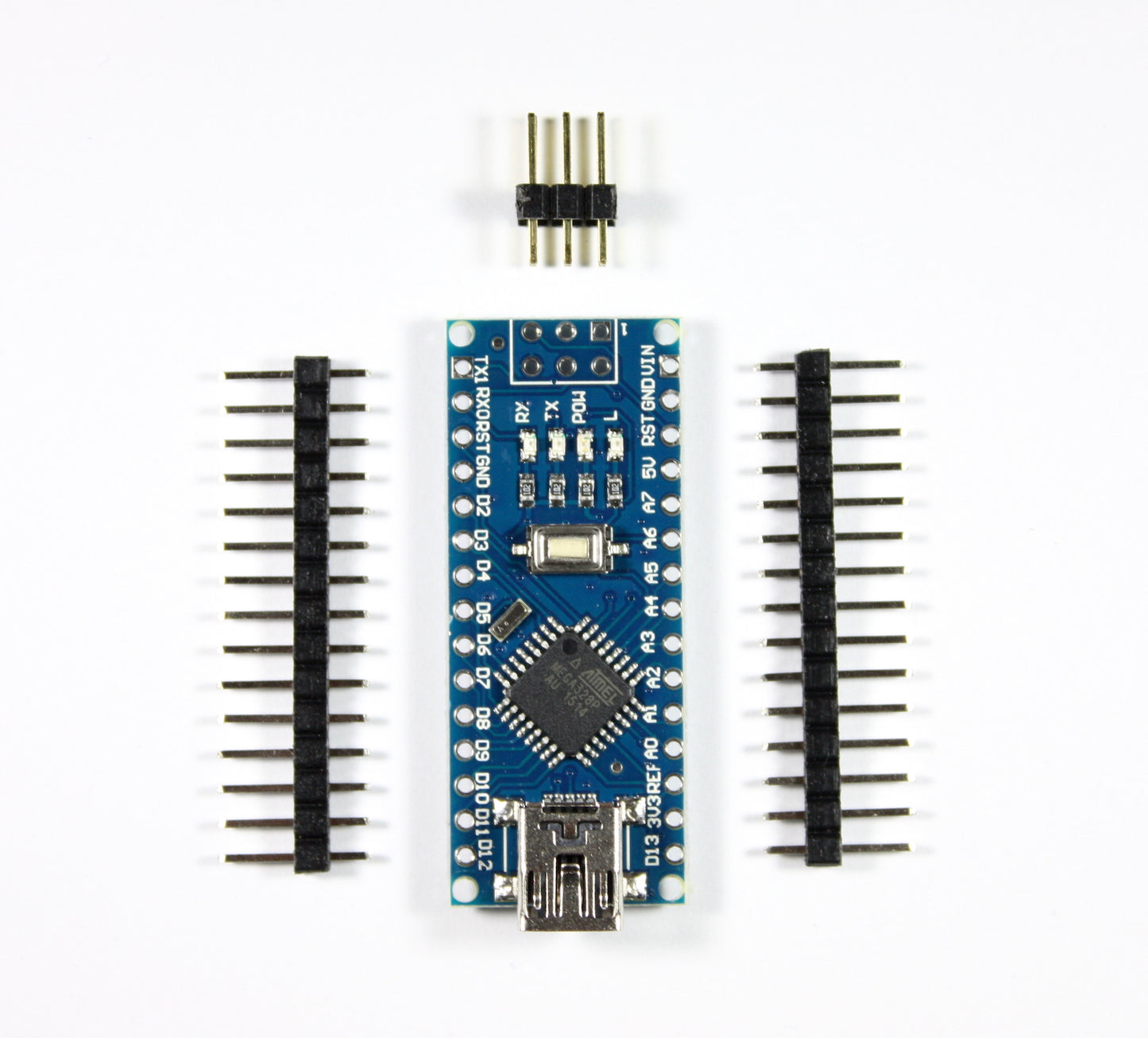

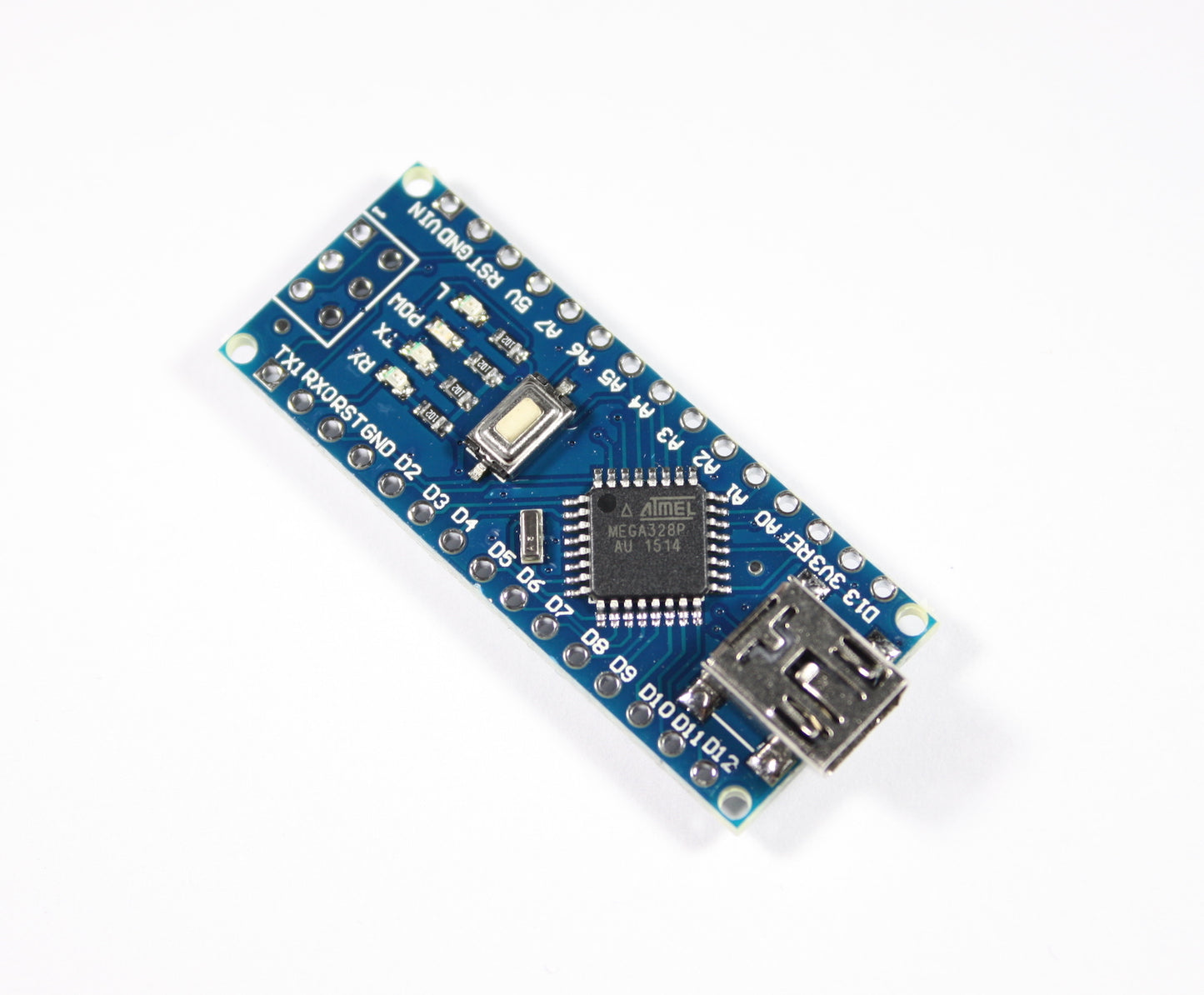

The Nano V3 module is equipped with an Atmel AVR ATmega328P microcontroller. The module is fully compatible with Arduino Nano.
Please note that the boards have a CH340G USB-Controller. They are recognized on Linux without any additional drivers. Mac OS and Windows users may need to install an additional driver.
Specification:
| Microcontroller: | ATmega328 |
| Operating Voltage: | 5 V |
| Input Voltage: | 5 - 12 V |
| Digital I/O Pins: | 22 (of which 6 provide PWM output) |
| Analog Input Pins: | 8 |
| DC Current per I/O Pin: | 40 mA |
| Flash Memory: | 32 KB (of which 2 KB used by bootloader) |
| SRAM | 2 KB |
| EEPROM: | 1 KB |
| Clock Speed: | 16 MHz |
