MMA8451 Module, 3-Axis-Accelerometer, 14-bit, I2C
MMA8451 Module, 3-Axis-Accelerometer, 14-bit, I2C
Regular price
$7.00 USD
Regular price
Sale price
$7.00 USD
Unit price
per

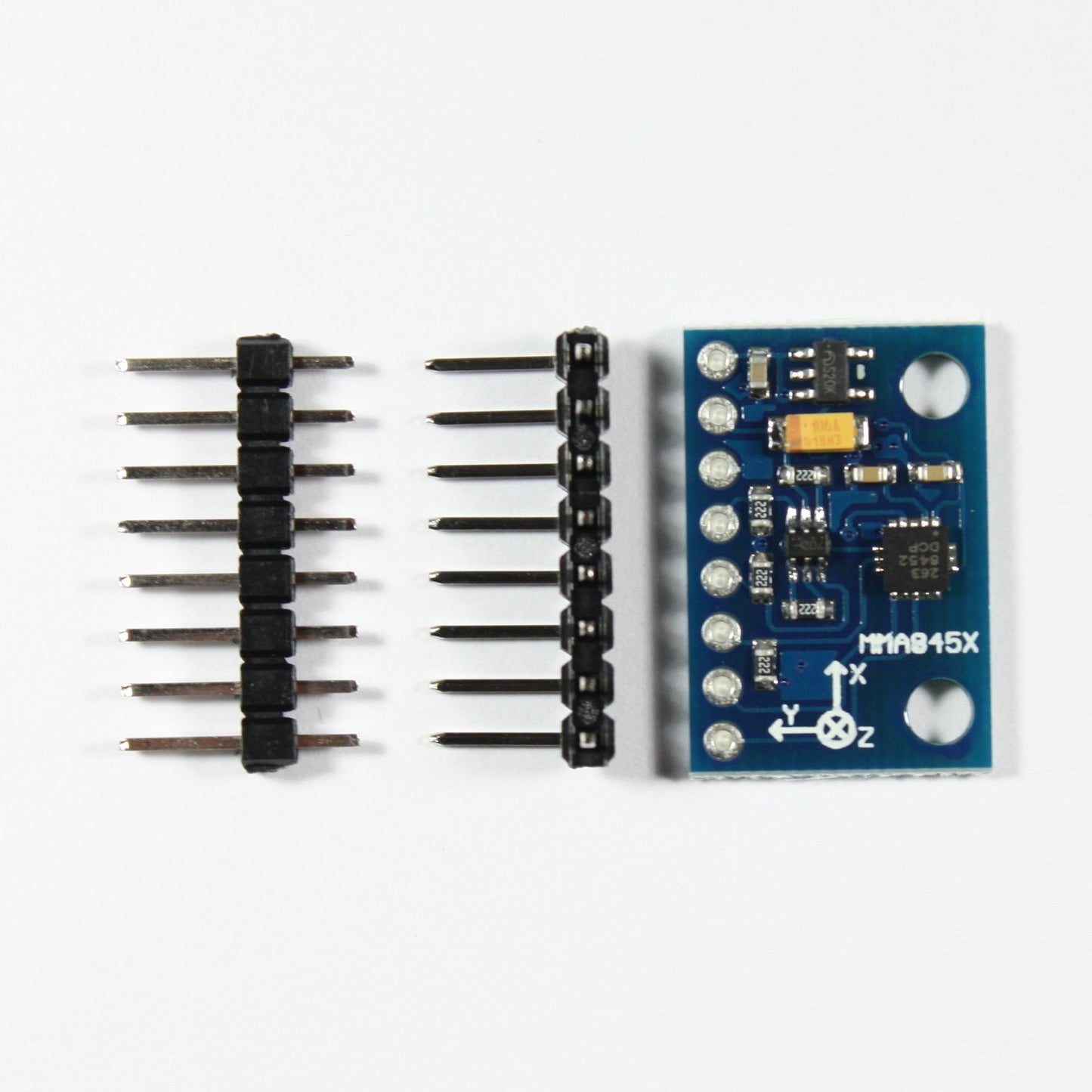

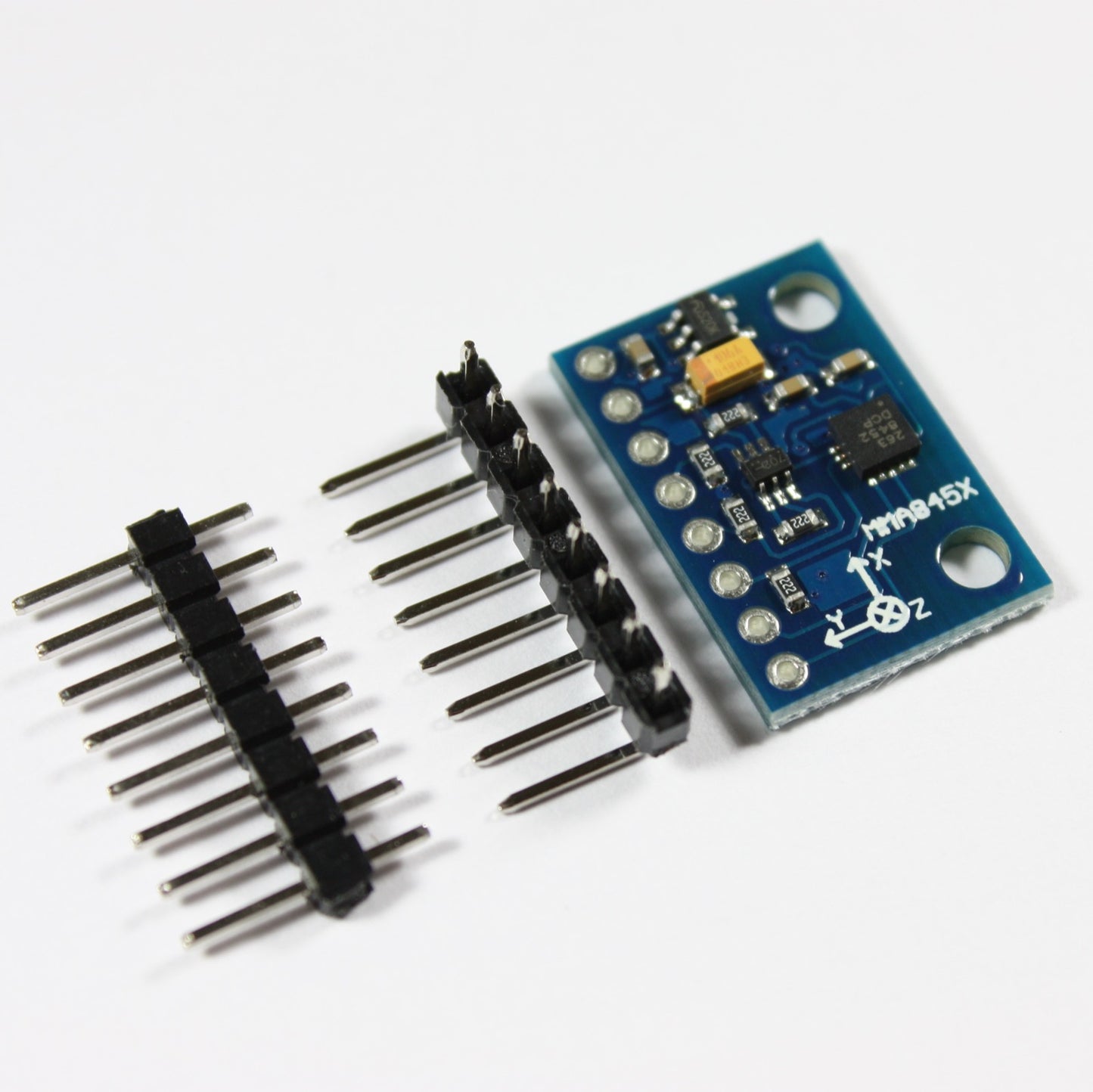

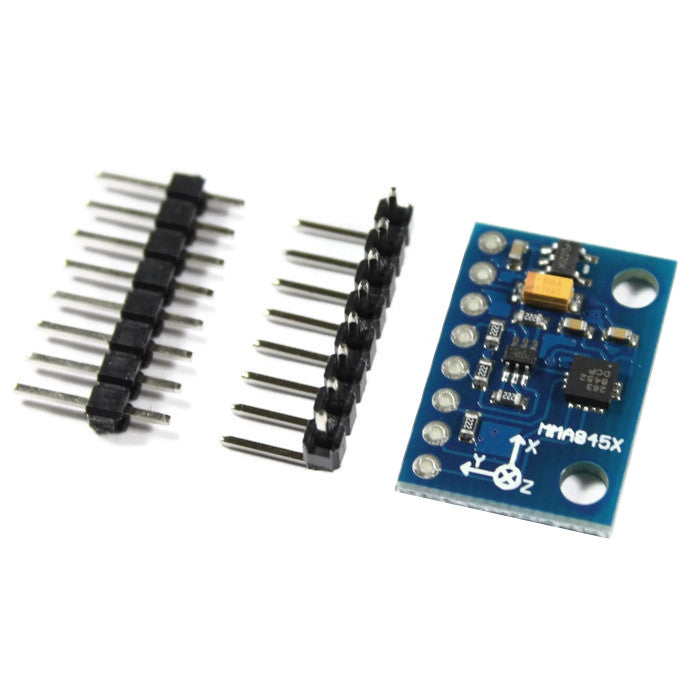

This sensor module is equipped with a high precision 3-axis accelerometer. It can easily be accessed using an Arduino or Raspberry Pi via I2C and offers two programmable interrupt pins.
Specification:
Input Voltage: | 3 - 5 V |
Range of the Accelerometer: | ± 2, 4, 8 g |
Resolution: | 14-bit |
Output Data Rates: | from 1.56 Hz to 800 Hz |
I2C 7-bit Address | 0x1C (SA0 = 0), 0x1D (SA0 = 1) |
Connection: | I2C |
