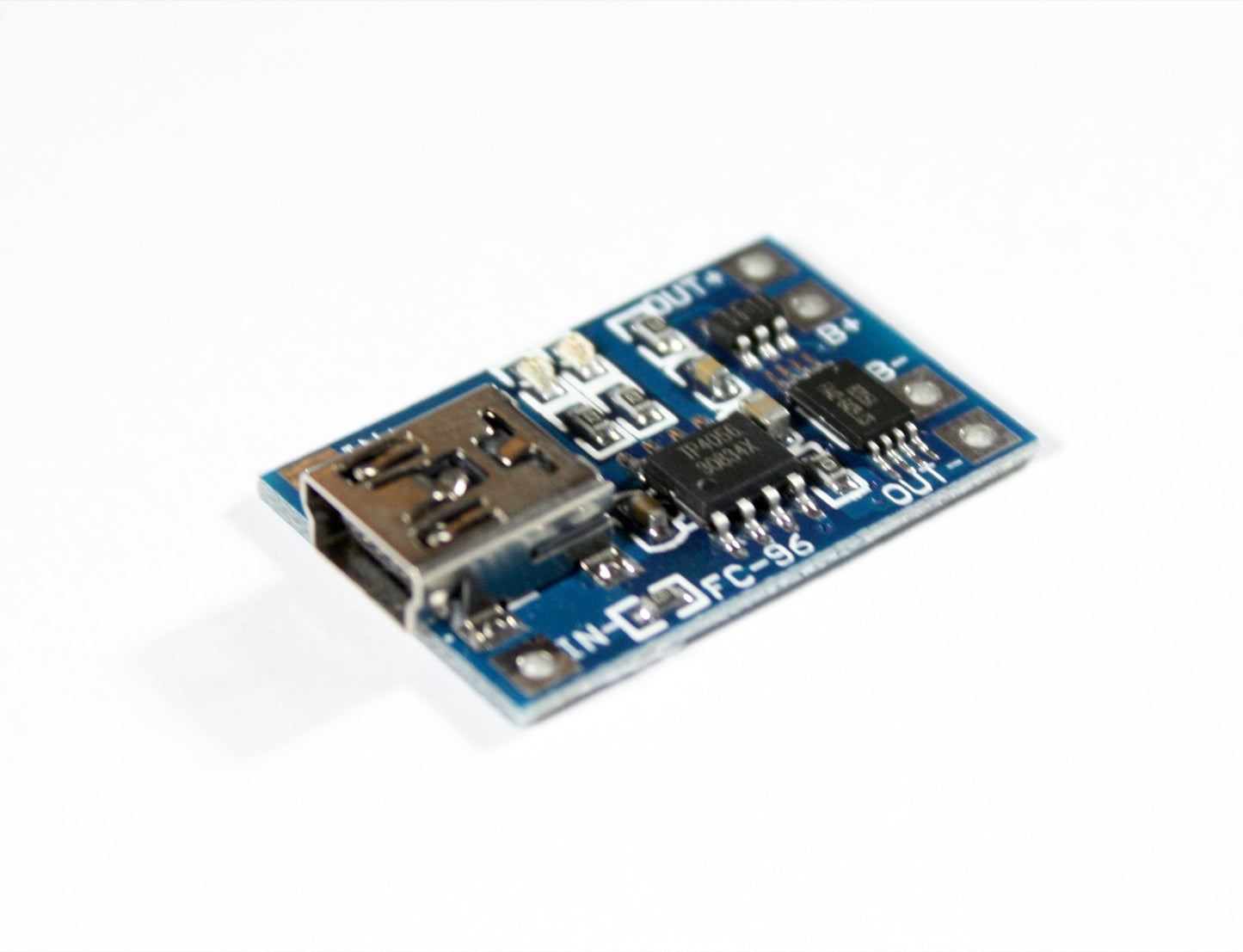

Li-Ion Charging Module TP4056 with Battery Protection, 1A, Mini-USB

Li-Ion Charging Module TP4056 with Battery Protection, 1A, Mini-USB

Regular price $5.00 USD
Regular price Sale price $5.00 USD
Sale Sold out
Shipping calculated at checkout.

This charger is made for single cell Li-ion batteries which are charged with 4.2 V. The TP4056 chipset is a constant-voltage/constant-current charger.
The on-board DW01 battery protection IC disconnects the battery on overcurrent, overcharge and on overdischarge.
A full charge is detected as soon as the current drops below 100 mA. The charging is automatically terminated by the TP4056.

Specification:

Input Voltage:up to 8 V max.
Charging Current:ca. 1 A
Display:2 LEDs
Connection:Connection Pads for Input/Output Voltages and Battery, Mini-USB
Dimensions:26.3 mm x 17.1 mm x 5.6 mm
