Kittenbot Meowbit, Card-sized Graphical Retro Game Computer, micro:bit compatible

Kittenbot Meowbit, Card-sized Graphical Retro Game Computer, micro:bit compatible

$45.00 USD
$45.00 USD
Sale Sold out
Shipping calculated at checkout.

Meowbit is a card-sized graphical retro game computer with allows you coding with Makecode arcade and Python. In other words, it combines game programming with hardware devices.

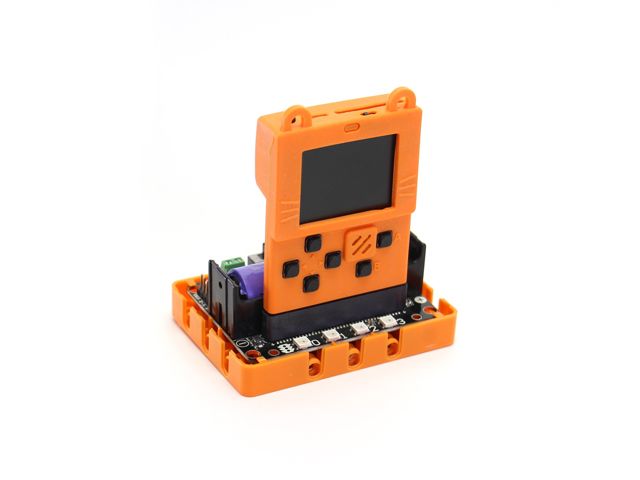

Meowbit is a card-sized graphical programming video game console designed for teenagers. It contains 1.8' full-color screen, 6 x programmable buttons ,1 x buzzer, built-in light sensor, temperature sensor, SD card slot (For external storage), multiplayer connector and edge connector. Especially the edge connector could access most micro:bit expansion boards. We recommend using Robot:bit for Mewobit, it can help you create a robot quickly.

meowbit features

Features:

  • 160 x 128 full-color TFT LCD provides a more vivid interactive interface
  • Easy to use graphical programming, learning while playing experience through game programming
  • Cross-cutting functions including hardware and software
  • Abundant hardware resources made infinite possibility possible
  • Support multi-platform including Makecode arcade, Kittenblock, scratch3.0, MicroPython; support multi-language
  • Support diagraming, showing the data changing of the sensors more intuitive



Hardware:

meowbit hardware

1Charging/work indicator11Button A/B
2Light sensor12Compatible with micro:bit's 40 pins Goldfinger
3Power switch13USB program download port / charging port
42x Programmable LED14SD card slot (Use for store programs or extend wireless modules)
5Reset15Multiplayer Connector
6DFU mode button16MPU-6050 gyroscope
7160 x 128 TFT color screen173.7V lithium battery package interface
8Temperature sensor18STM32F401RET6, 32-bit ARM Cortex M4 core MCU
94x Direction button192MByte SPI-flash (default download Unicode character table)
10Buzzer20Signature area



Programming mode:

Makecode Arcade graphical programming mode
MicroPython programming mode

arcade.makecode

Parameters:

  • MCU: STM32F401RET6, 32-bit ARM Cortex M4 core
  • Operating voltage: 3.3V
  • Supply voltage: USB(5V), Lithium battery pack(3.7~4.2V)
  • Output current: 500mA(max)
  • Dimensions: 52 mm x 76 mm x 12 mm
  • MacOS, Windows 7 and above

what meowbit can be

Part List:

  • Meowbit
  • Silicone Sleeve for Meowbit
