Genuino Uno Rev3 Development Board, ATmega328

Genuino Uno Rev3 Development Board, ATmega328

Regular price $23.00 USD
Regular price Sale price $23.00 USD
Sale Sold out
Shipping calculated at checkout.

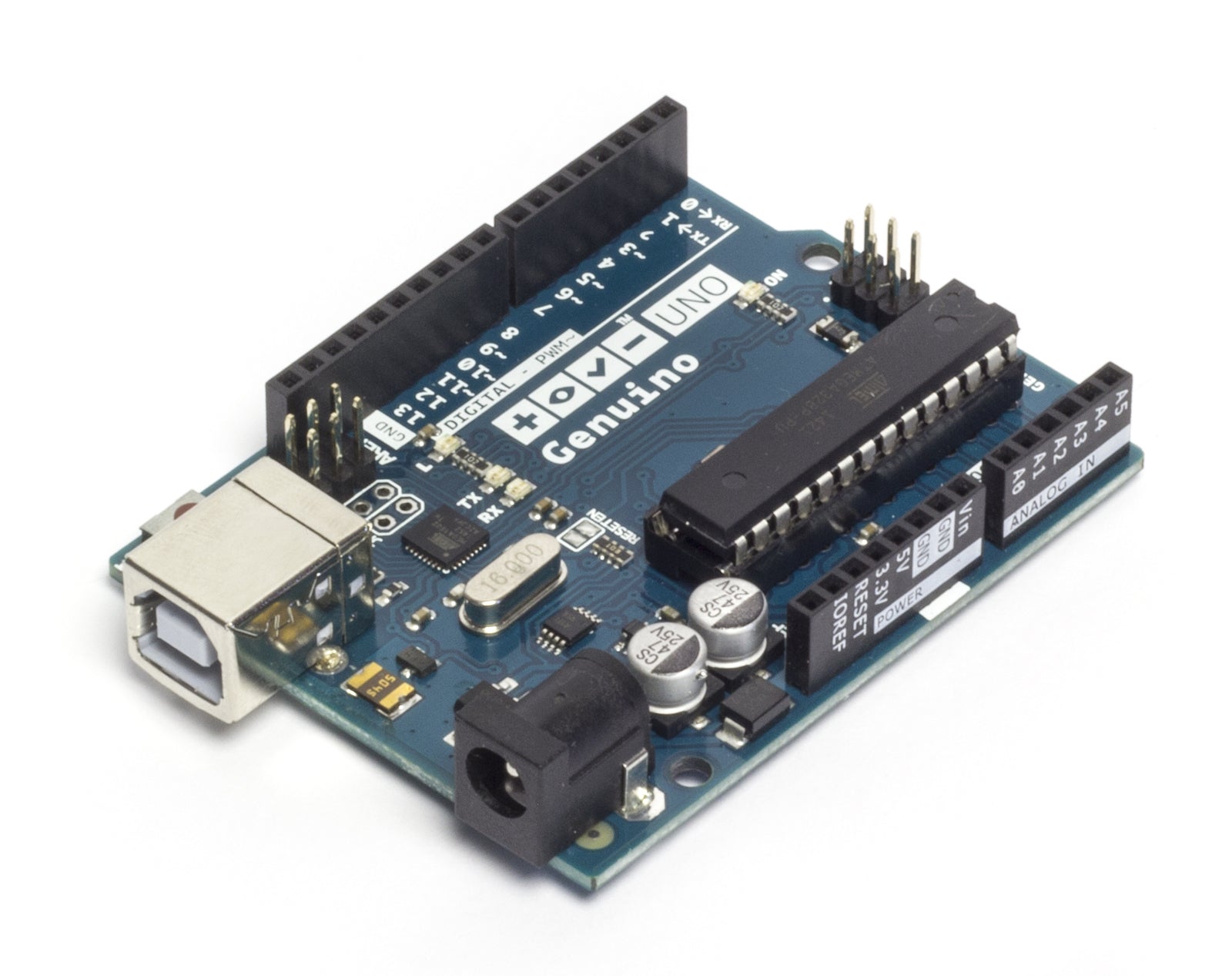

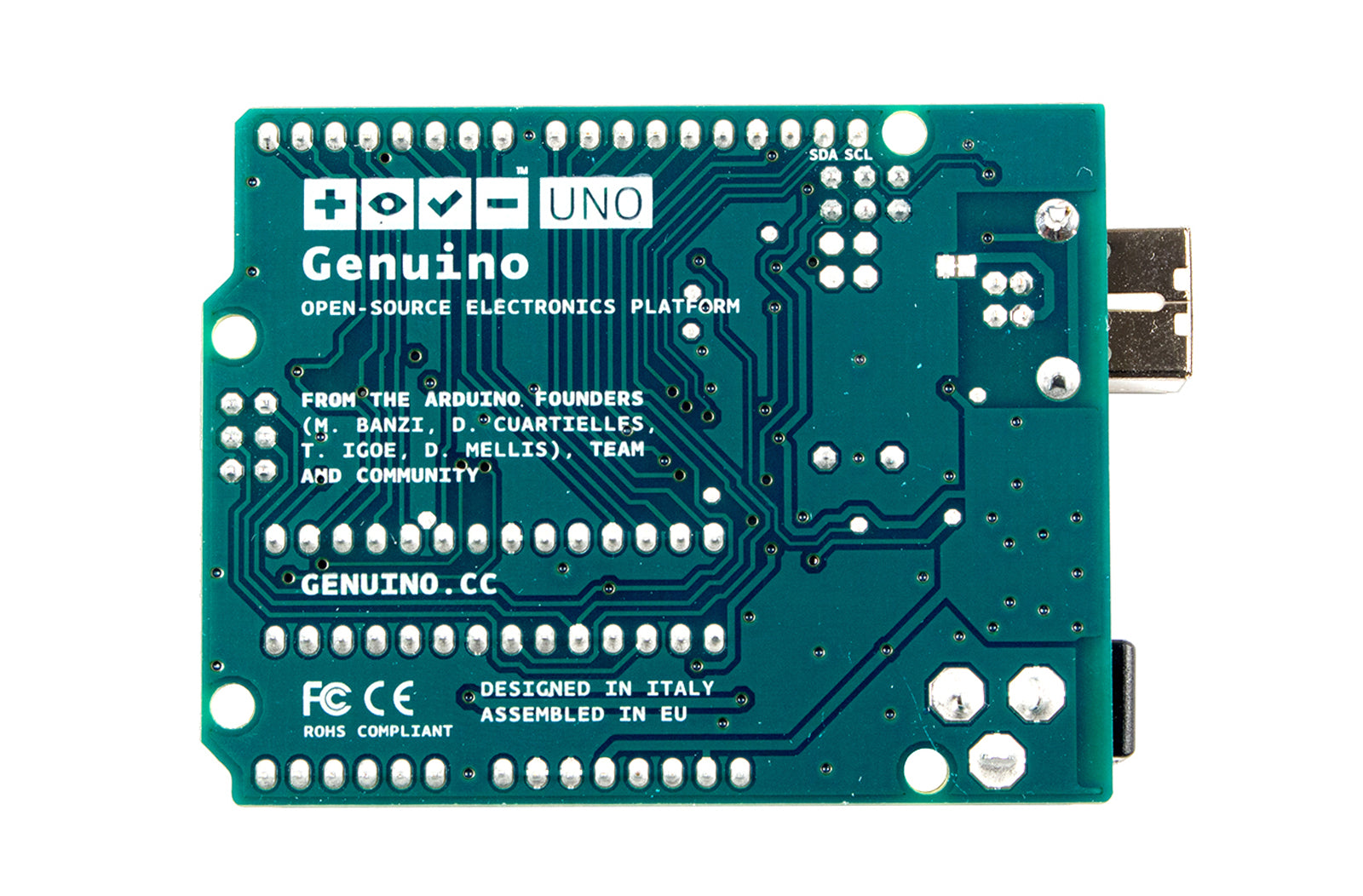

The Genuino UNO R3 is a microcontroller board based on the ATmega328. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable (not included) or power it with a AC-to-DC adapter or battery to get started. The UNO differs from all preceding boards because it does not use the FTDI USB-to-serial driver chip.

Specification

MicrocontrollerATmega328
Operating Voltage5 V
Input Voltage (recommended)7 - 12 V
Input Voltage (limit)6 - 20 V
Digital I/O Pins14
PWM Digital I/O Pins6
Analog Input Pins6
DC Current per I/O Pin40 mA
DC Current for 3.3V Pin50 mA
Flash Memory32 KB
Flash Memory for Bootloader0.5 KB
SRAM2 KB
EEPROM1 KB
Clock Speed16 MHz
