Genuino

Genuino Micro Development Board, ATmega32U4

Genuino Micro Development Board, ATmega32U4

Regular price €17,97 EUR
Regular price Sale price €17,97 EUR
Sale Sold out
Shipping calculated at checkout.

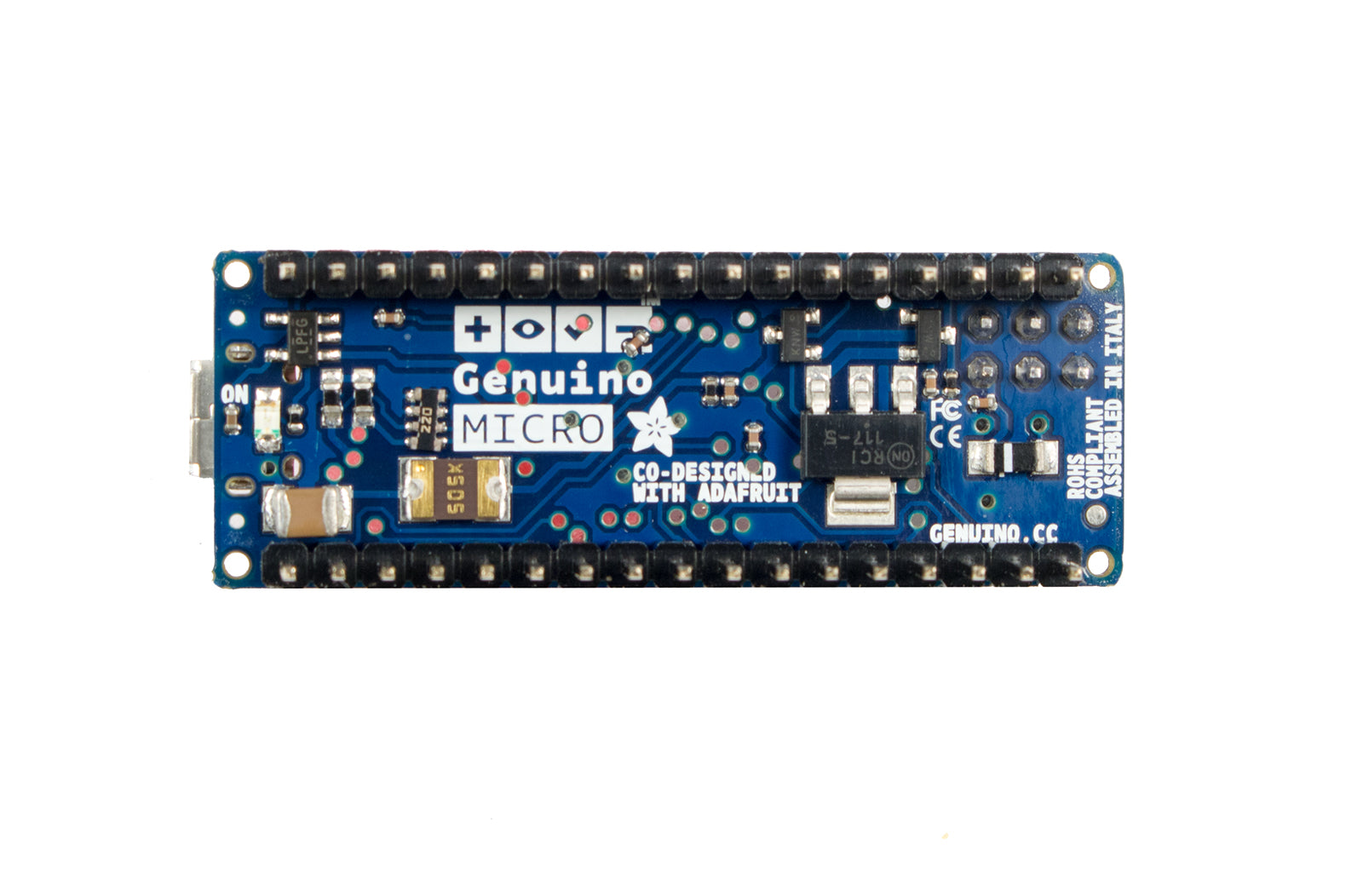

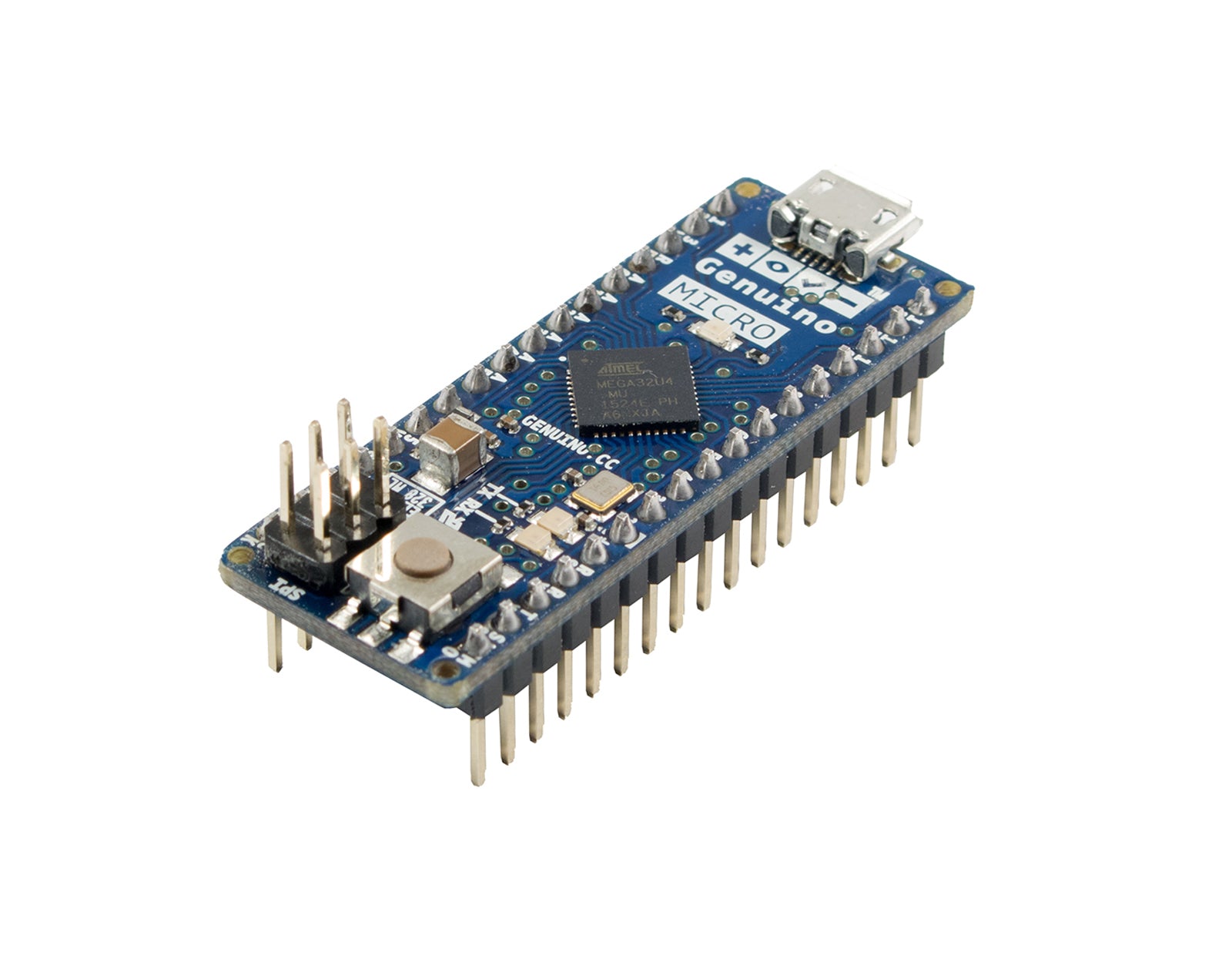

Genuino Micro is a microcontroller board based on the ATmega32u4, developed in conjunction with Adafruit. It has 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs), a 16 MHz crystal oscillator, a micro USB connection, an ICSP header and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a micro USB cable to get started. It has a form factor that enables it to be easily placed on a breadboard.
The Micro is similar to the Leonardo in that the ATmega32u4 has built-in USB communication, eliminating the need for a secondary processor. This allows the Micro to appear to a connected computer as a mouse and keyboard, in addition to a virtual (CDC) serial / COM port.

Specification

MicrocontrollerATmega32U4
Operating Voltage5 V
Input Voltage (recommended)7 - 12 V
Input Voltage (limit)6 - 20 V
Digital I/O Pins20
PWM Digital I/O Pins7
Analog Input Pins12
DC Current per I/O Pin40 mA
DC Current for 3.3V Pin50 mA
Flash Memory32 KB
Flash Memory for Bootloader4 KB
SRAM2.5 KB
EEPROM1 KB
Clock Speed16 MHz
