Genuino
Genuino Mega 2560 Rev3 Development Board
Genuino Mega 2560 Rev3 Development Board
Regular price
$40.00 USD
Regular price
Sale price
$40.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

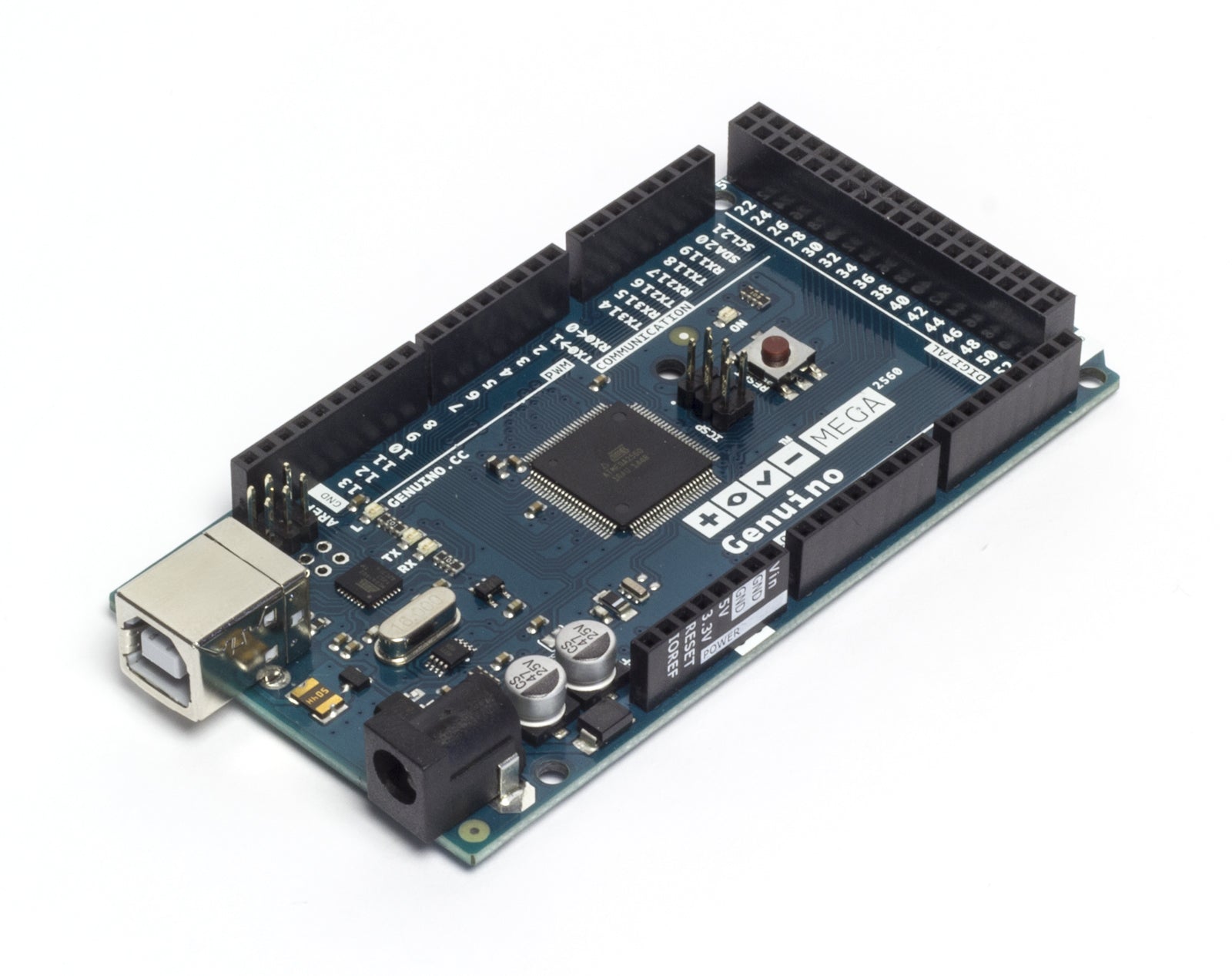

The Genuino Mega 2560 is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 14 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Mega is compatible with most shields designed for the Uno, Duemilanove or Diecimila.
Additional features coming with the R3 version are:
- ATmega16U2 instead 8U2 as USB-to-Serial converter
- 1.0 pinout: added SDA and SCL pins for TWI communication placed near to the AREF pin and two other new pins placed near to the RESET pin, the IOREF that allow the shields to adapt to the voltage provided from the board and the second one is a not connected pin, that is reserved for future purposes
- stronger RESET circuit
Specification
Microcontroller | ATmega2560 |
Operating Voltage | 5 V |
Input Voltage (recommended) | 7 - 12V |
Input Voltage (limit) | 6 - 20V |
Digital I/O Pins | 54 |
PWM Digital I/O Pins | 14 |
Analog Input Pins | 16 |
DC Current per I/O Pin | 40 mA |
DC Current for 3.3V Pin | 50 mA |
Flash Memory | 256 KB |
Flash Memory for Bootloader | 8 KB |
SRAM | 8 KB |
EEPROM | 4 KB |
Clock Speed | 16 MHz |
