Genuino 101 Development Board, Intel Curie / Quark
Genuino 101 Development Board, Intel Curie / Quark
Regular price
$40.00 USD
Regular price
Sale price
$40.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

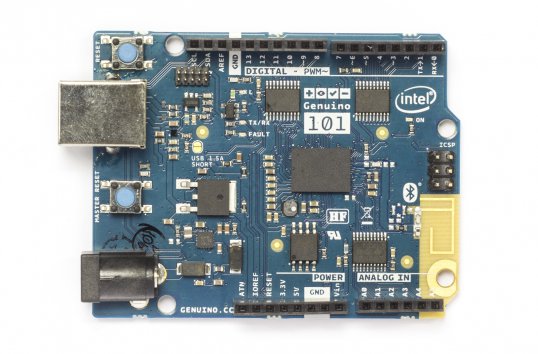

The Genuino 101 Development Board has been developed by Arduino and Intel and is the successor of the Arduino Uno. It offers two cores, an x86 (Quark) and a 32-bit ARC architecture core, both clocked at 32MHz, and is equipped with an Bluetooth LE module and a 6-axis accelerometer/gyro.
Specification
| Microcontroller: | Intel Curie |
| Operating Voltage: | 3.3 V (5 V tolerant I/O) |
| Input Voltage (recommended): | 7 - 12 V |
| Input Voltage (limit): | 7 - 20 V |
| Digital I/O Pins: | 14 (of which 4 provide PWM output) |
| PWM Digital I/O Pins: | 4 |
| Analog Input Pins: | 6 |
| DC Current per I/O Pin: | 20 mA |
| Flash Memory for Bootloader: | 196 kB |
| SRAM: | 24 kB |
| Clock Speed: | 32MHz |
| Features: | Bluetooth LE, 6-axis accelerometer/gyro |
| Dimensions: | 68.6 mm x 53.4 mm |
