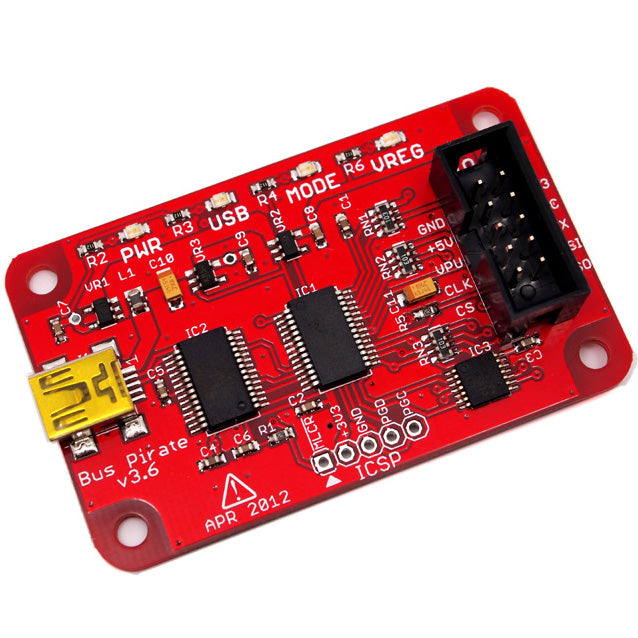

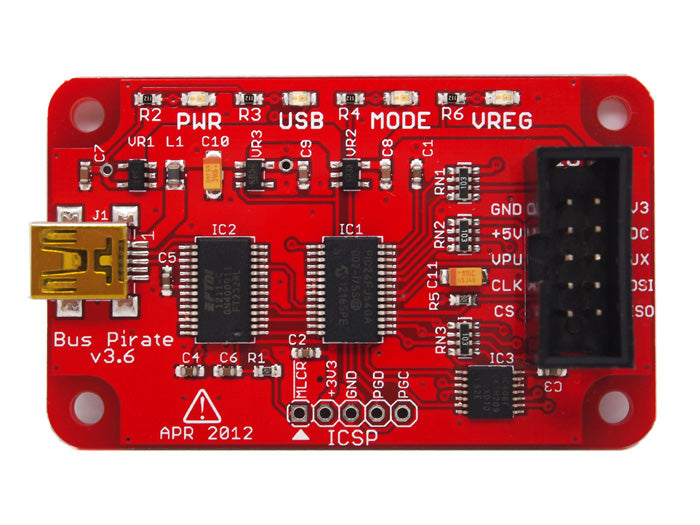

Bus Pirate v3.6 Universal Serial Interface

Bus Pirate v3 is a universal bus interface that talks to electronics from a PC serial terminal. Get to know a chip without writing code. Eliminates a ton of early prototyping effort with new or unknown chips.

This  board  provides  1-Wire, I2C, SPI, JTAG, asynchronous serial (UART), MIDI, PC keyboard, HD44780 LCDs, and generic 2- and 3-wire libraries for custom protocols.

Features

• USB interface, USB powered
• 5-volt tolerant pins-0-6volt measurement probe
• 1Hz-40MHz frequency measurement
• 1kHz-4MHz pulse-width modulator, frequency generator
• On-board multi-voltage pull-up resistors
• On-board 3.3volt and 5volt power supply with software reset
• Macros for common operations
• Bus traffic sniffers (SPI, I2C)
• Transparent USB to serial bridge mode
• 10Hz-1MHz low-speed logic analyzer
• Custom support in AVRDUDE,Flashrom,OpenOCD
• AVR STK500 v2 programmer clone
• Scriptable from Perl, Python, etc.
• A bootloader for easy USB firmware updates
• Uses DP6037 standard PCB layout
• Open source (CC 0/Public Domain)
