Breadboard Dock for Omega2 and Omega2 Plus

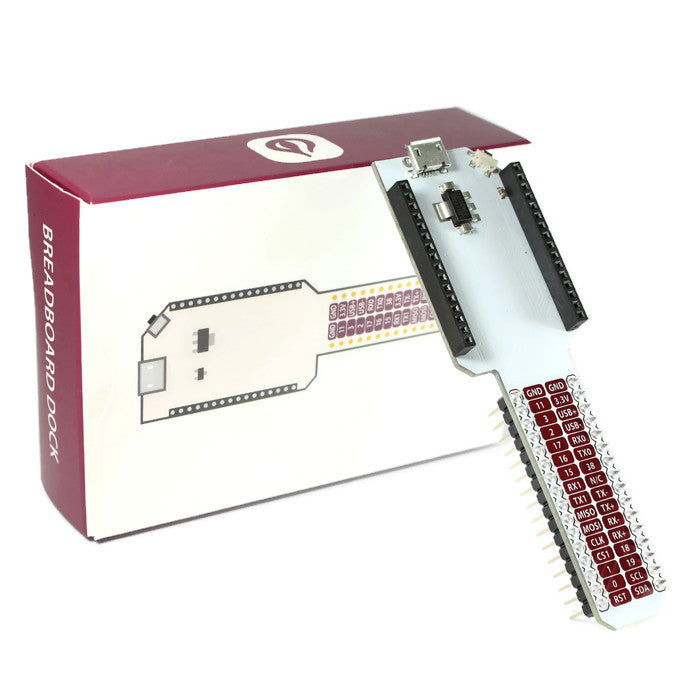

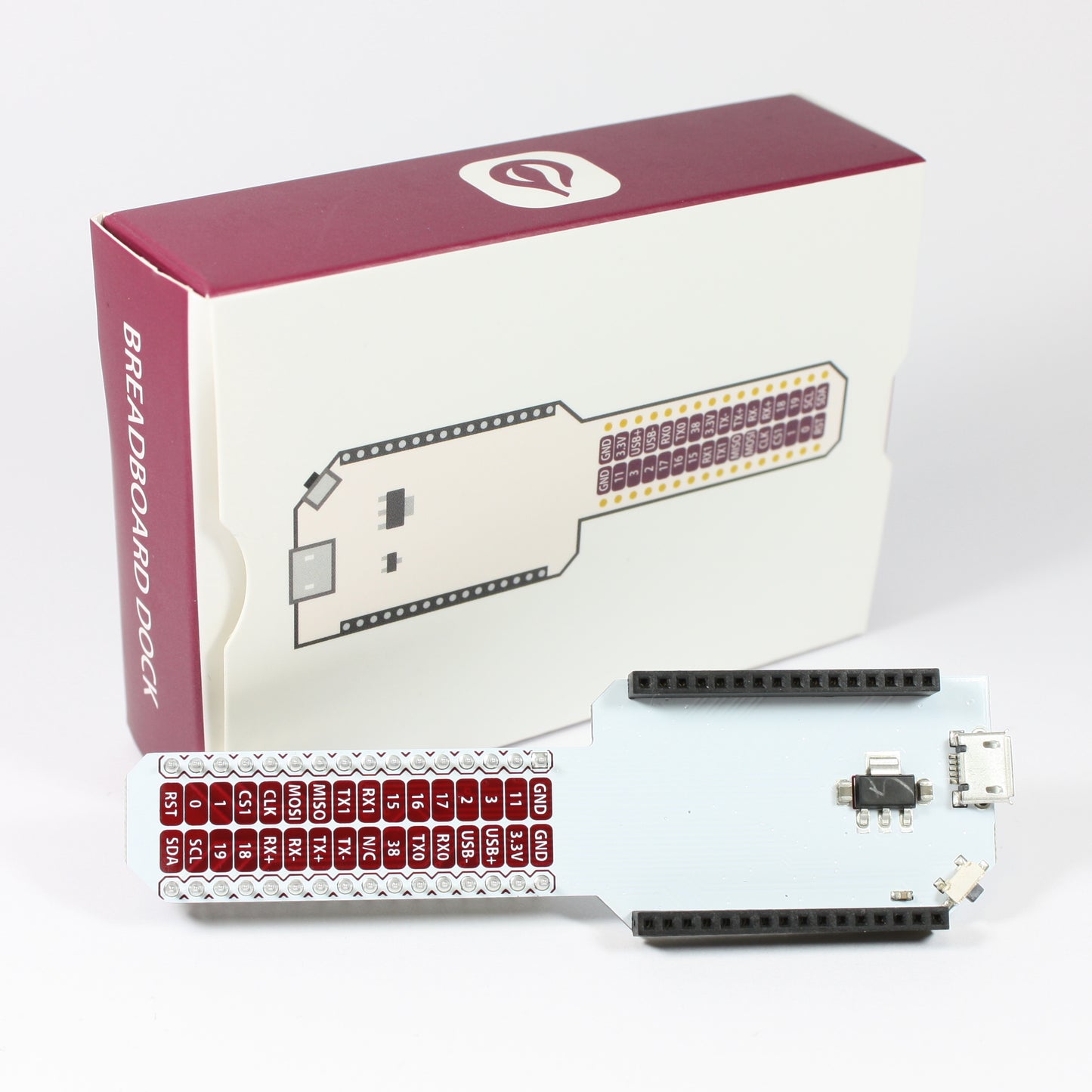

The Breadboard Dock is the perfect solution for building breadboard circuits with the Omega. This Dock can be plugged into a breadboard, and the pins of the dock are mapped 1-to-1 as on the Omega.

The Breadboard Dock provides power to the Omega via a Micro-USB port that takes in 5V. This voltage is stepped down to the 3.3V required to power the Omega. All of the Omega’s pins are broken out via a breadboard header. You can use this Dock with your own circuits, custom embedded applications, or just for hacking!

The Micro-USB Port is used to supply power to the Dock, which in turn supplies power to the Omega. There is no USB-to-Serial Chip on the Dock. This means that you will not be able to connect to the Omega serially over the Micro-USB port. You can still connect to your Omega’s terminal with SSH, you can learn how to do that in this guide to connecting to the Omega.
