Motion Detection Module with Infrared Sensor

Motion Detection Module with Infrared Sensor

Regular price $4.00 USD
Regular price Sale price $4.00 USD
Sale Sold out
Shipping calculated at checkout.

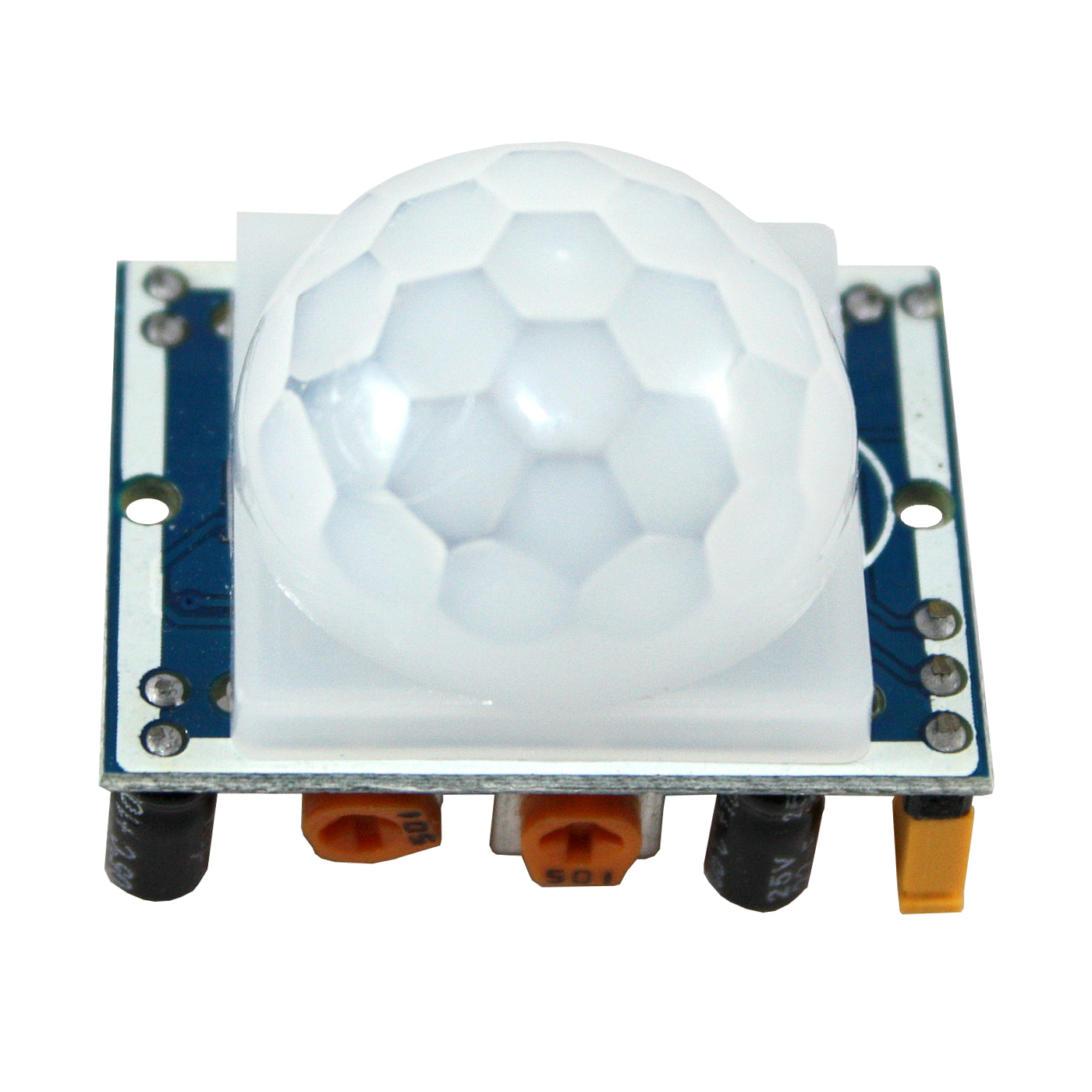

The HC-SR501 module is equipped with an IR sensor and a diffusor for improved detection. The switching time and the sensor range are selectable via potentiometers. The module is very energy-efficient and is ideally suited for mobile or battery-powered motion detection applications.


Input Voltage: 5 - 20 V
DC Current:< 65 µA
Selectable Switching Time:5 - 200 s
Selectable Sensor Range:3 - 7 m
Sensor Angle:140°
PCB Dimension:32 mm x 24 mm
