Arduino

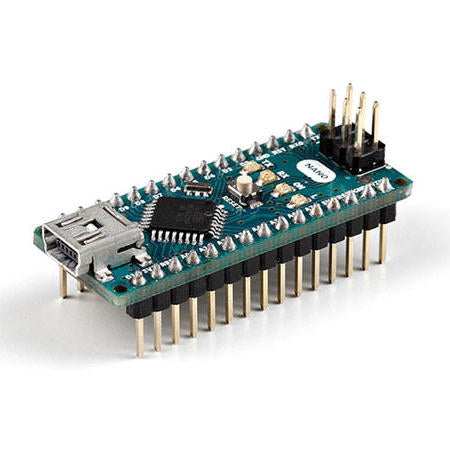

Arduino Nano

Arduino Nano

Regular price $28.00 USD
Regular price Sale price $28.00 USD
Sale Sold out
Shipping calculated at checkout.

The Arduino Nano is a small version of the Arduino UNO with a breadboard-friendly form factor. The board was originally designed by Gravitech.

The Arduino Nano is a small, complete, and breadboard-friendly board based on the ATmega328 (Arduino Nano 3.x). It has more or less the same functionality of the Arduino Duemilanove, but in a different package. It lacks only a DC power jack, and works with a Mini-B USB cable instead of a standard one.

Specifications:

Microcontroller:ATmega328
Architecture:AVR
Operating Voltage:5 V
Input Voltage:7 - 12 V
Digital I/O Pins:22 (of which 6 provide PWM output)
Analog Input Pins:8
DC Current per I/O Pin:40 mA
Flash Memory:32 KB (of which 2 KB used by bootloader)
SRAM:2 KB
EEPROM:1 KB
Clock Speed:16 MHz
Power Consumption:19 mA
PCB Size:18 mm x 45 mm
Weight:7 g
Product Code:A000005
