Arduino MKR2UNO Adapter

Arduino MKR2UNO Adapter

Regular price $16.00 USD
Regular price Sale price $16.00 USD
Sale Sold out
Shipping calculated at checkout.

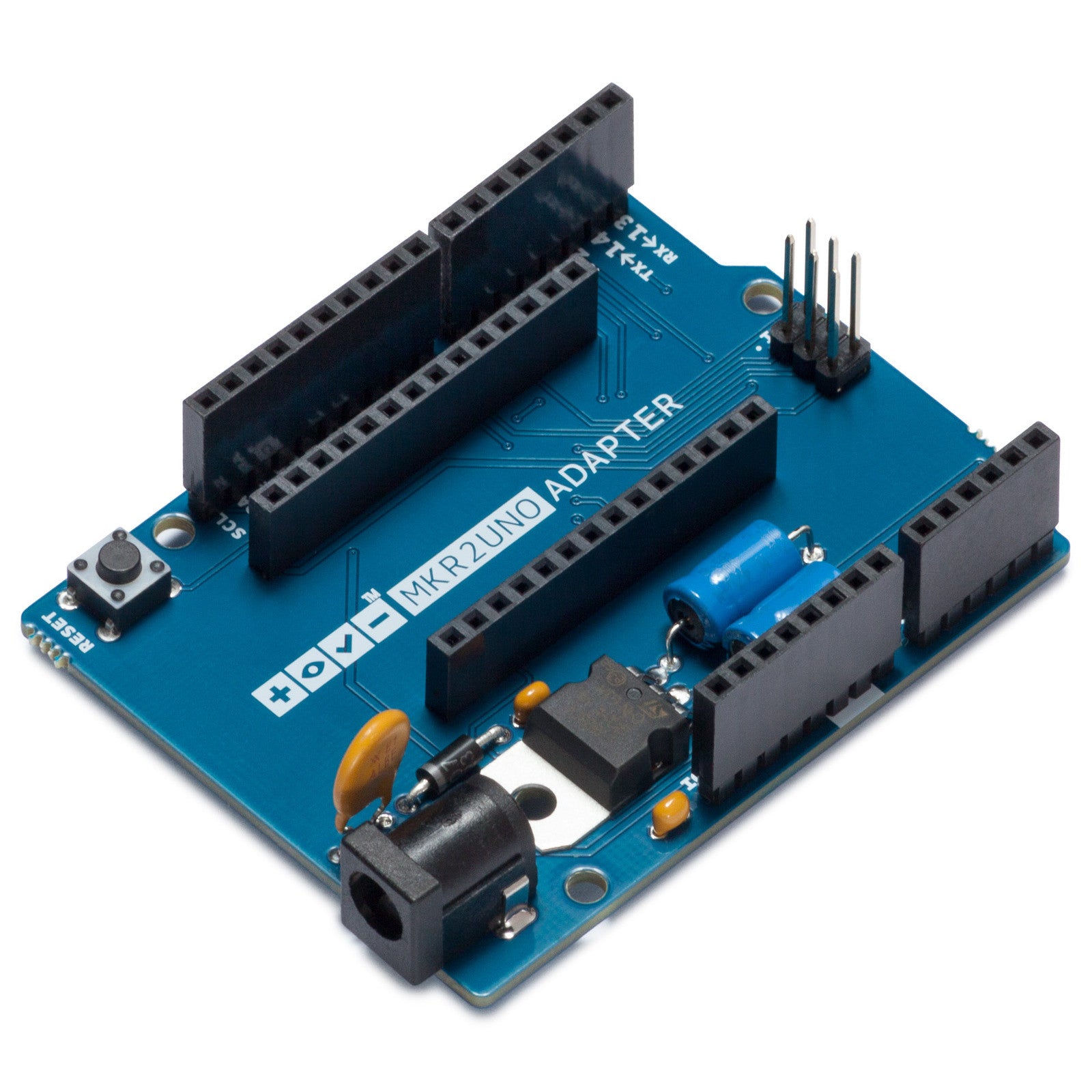

The MKR2UNO Adapter allows you to turn your Arduino UNO form factor based project into a MKR based one without too much effort! You can so upgrade your project with a powerful board with integrated LiPo battery charger.

Please keep in mind that the MKR2UNO is just a form factor adapter and so is NOT present any voltage translation. Be careful before connecting a shield since shield without IOREF level shifting capability may not work properly.

Like in many others Arduino boards this adapter allows to power your MKR board using a barrel jack with center positive polarity or the VIN pin on the headers.

Unlike the Arduino UNO, the MKR2UNO Adapter do NOT have I2C signals on A4 and A5 and SPI on pins 11, 12 and 13. All the pins on the MKR2UNO Adapter are wired one to one from the MKR to the UNO form factor with some exception:

MKR form factor pinUNO form factor pin
013
110
130
141

Specifications:

Operating Voltage3.3V
Input Voltage (recommended)7-12V
Input Voltage (limit)6-16V
Analog Input Pins6
Analog Output Pins1
Digital I/O Pins14
DC Current for 3.3V Pin700 mA
DC Current for 5V Pin700 mA
Length68.6 mm
Width53.4 mm
Weight24 g
