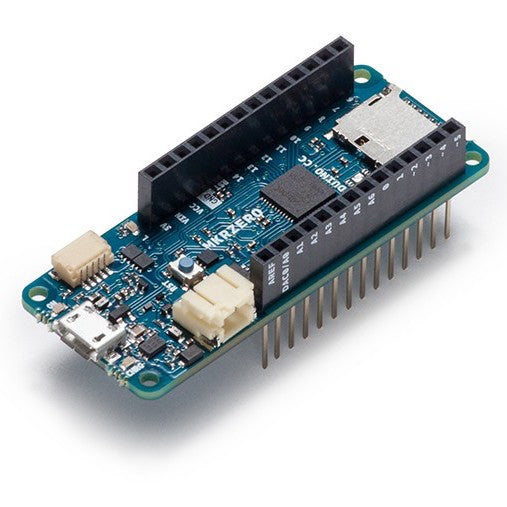

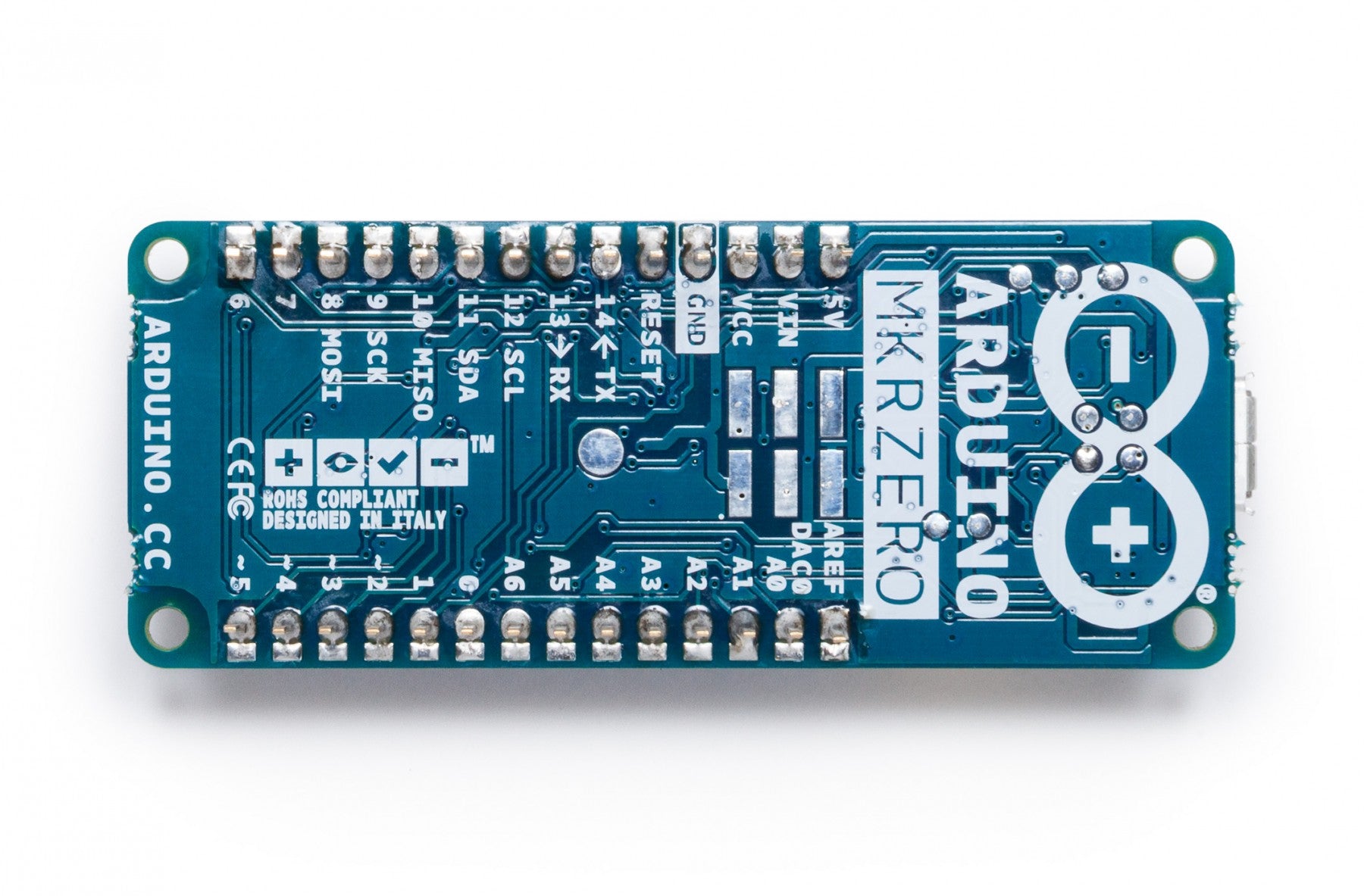

Arduino MKR ZERO

Arduino MKR ZERO

Regular price $35.00 USD
Regular price Sale price $35.00 USD
Sale Sold out
Shipping calculated at checkout.

MKR ZERO has an on-board SD connector with dedicated SPI interfaces (SPI1) that allows you to play with MUSIC files with no extra hardware!

Watch out music makers, we’ve got some news for you! We have released two libraries for your enjoyment:

Arduino Sound library – a simple way to play and analyze audio data using Arduino on SAM D21-based boards.

I2S library – to use the I2S protocol on SAMD21-based boards. For those who don’t know, I2S (Inter-IC Sound) is an electrical serial bus interface standard for connecting digital audio devices.

The MKR ZERO brings you the power of a Zero in the smaller format established by the MKR form factor. The MKR ZERO board acts as a great educational tool for learning about 32-bit application development. It has an on-board SD connector with dedicated SPI interfaces (SPI1) that allows you to play with MUSIC files with no extra hardware!  The board is powered by Atmel’s SAMD21 MCU, which features a 32-bit ARM Cortex® M0+ core.

Warning: Unlike most Arduino & Genuino boards, the MKRZero runs at 3.3V. The maximum voltage that the I/O pins can tolerate is 3.3V. Applying voltages higher than 3.3V to any I/O pin could damage the board.

The board contains everything needed to support the microcontroller; simply connect it to a computer with a micro-USB cable or power it by a LiPo battery. The battery voltage can also be monitored since a connection between the battery and the analog converter of the board exists.

Specifications

MicrocontrollerSAMD21 Cortex-M0+ 32bit low power ARM MCU
Board Power Supply (USB/VIN)5V
Supported Battery(*)Li-Po single cell, 3.7V, 700mAh minimum
DC Current for 3.3V Pin600mA
DC Current for 5V Pin600mA
Circuit Operating Voltage3.3V
Digital I/O Pins22
PWM Pins12 (0, 1, 2, 3, 4, 5, 6, 7, 8, 10, A3 - or 18 -, A4 -or 19)
UART1
SPI1
I2C1
Analog Input Pins7 (ADC 8/10/12 bit)
Analog Output Pins1 (DAC 10 bit)
External Interrupts8 (0, 1, 4, 5, 6, 7, 8, A1 -or 16-, A2 - or 17)
DC Current per I/O Pin7 mA
Flash Memory256 KB
Flash Memory for Bootloader8 KB
SRAM32 KB
EEPROMno
Clock Speed32.768 kHz (RTC), 48 MHz
LED_BUILTIN32
Full-Speed USB Device and embedded Host
