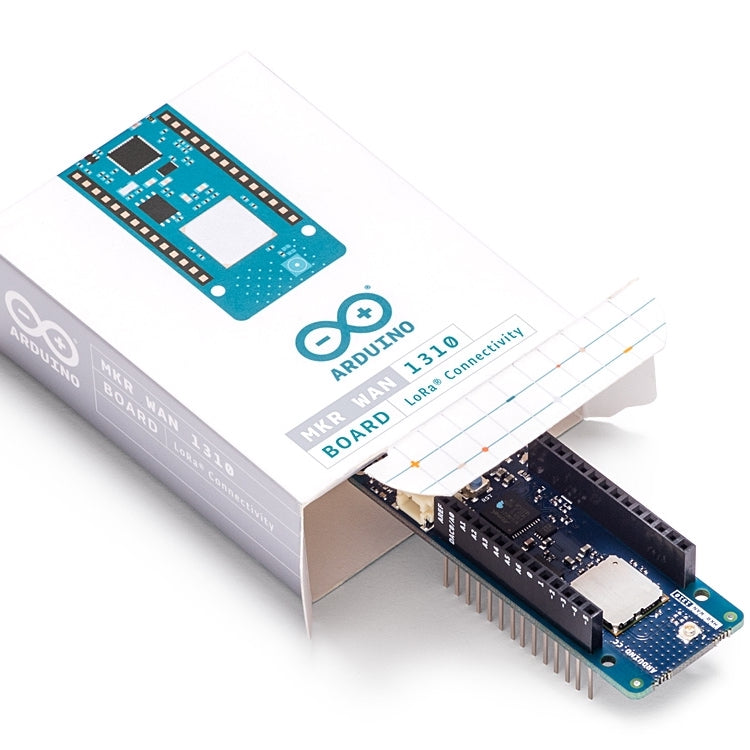

Arduino MKR WAN 1310 w/o Antenna

Arduino MKR WAN 1310 w/o Antenna

Regular price $45.00 USD
Regular price Sale price $45.00 USD
Sale Sold out
Shipping calculated at checkout.

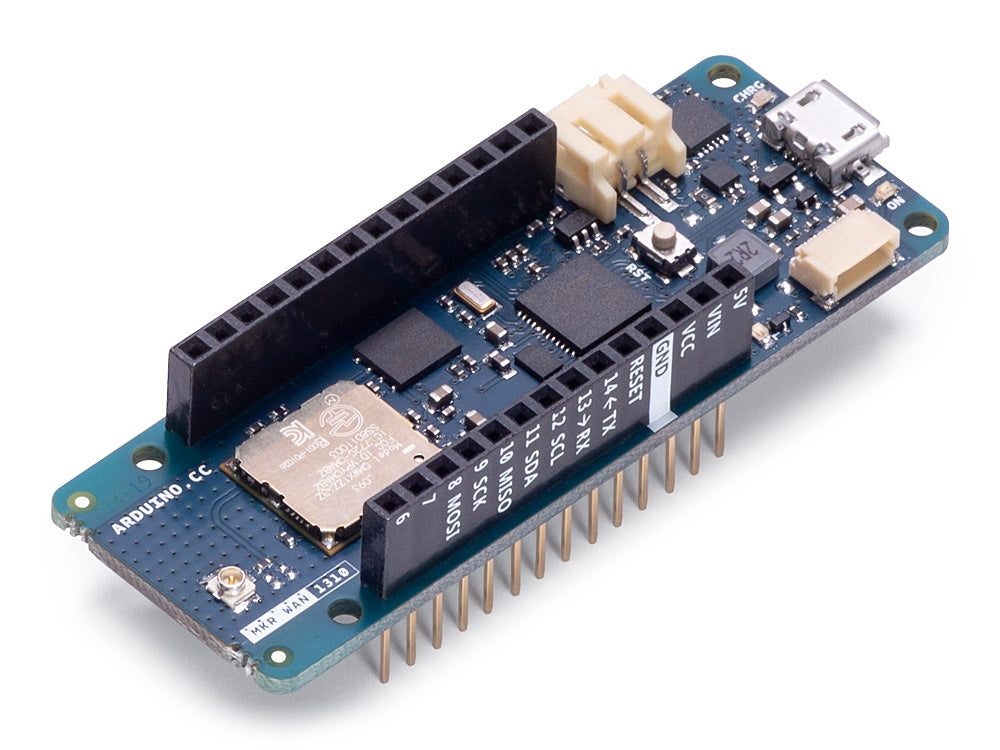

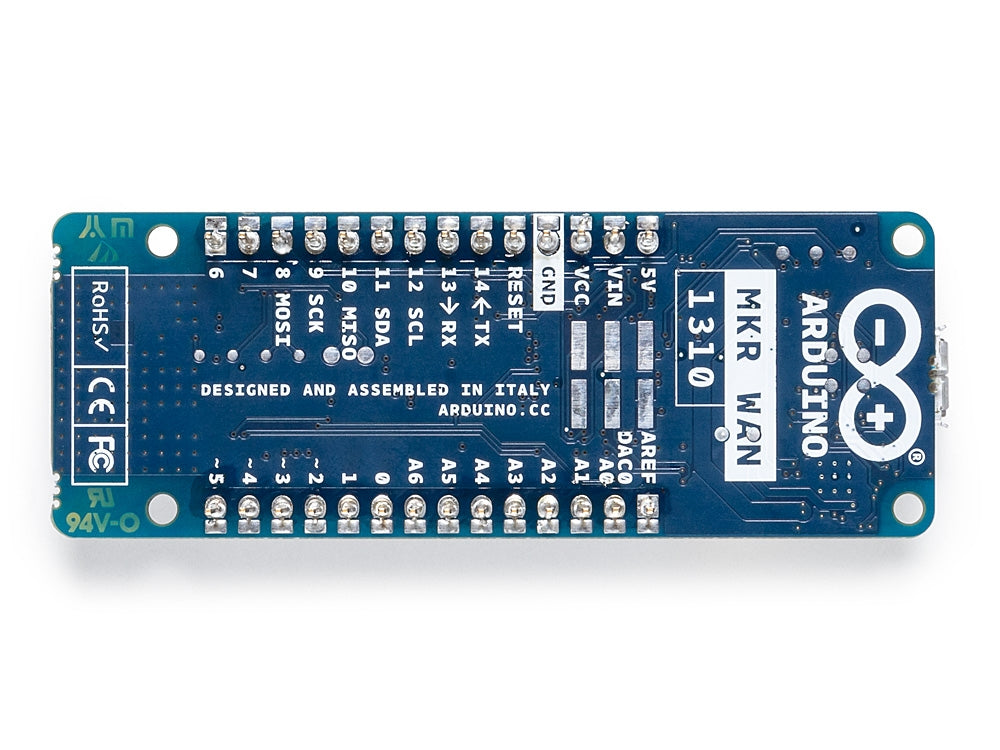

The Arduino MKR WAN 1310 board provides a practical and cost effective solution to add LoRa® connectivity to projects  requiring low power. This open source board can be connected to: Arduino Create, to your own LoRa® network using the Arduino Pro Gateway for LoRa®, to existing LoRaWAN™ infrastructure like The Things Network, or even to other boards using the direct connectivity mode.

The MKR WAN 1310, brings in a series of improvements when compared to its predecessor, the MKR WAN 1300. While still based on the Atmel SAMD21 low power processor, the Murata CMWX1ZZABZ LoRa® module, and the MKR family’s characteristic crypto chip (the ECC508), the MKR WAN 1310 includes a new battery charger, a 2MByte SPI Flash, and improved control of the board’s power consumption.

The latest low power architecture has considerably improved the battery life on the MKR WAN 1310. When properly configured, the power consumption is now as low as 104uA! It is also possible to use the USB port to supply power (5V) to the board; run the board with or without batteries - the choice is yours.

Data logging and other OTA (Over The Air) functions are now possible since the inclusion of the on board 2MByte Flash. This new exciting feature will let you transfer configuration files from the infrastructure onto the board, create your own scripting commands, or simply store data locally to send it whenever the connectivity is best. Whilst the MKR WAN 1310’s crypto chip adds further security by storing credentials & certificates in the embedded secure element.

These features make it the perfect IoT node and building block for low power wide area IoT devices.

Specifications

MicrocontrollerSAMD21 Cortex-M0+ 32bit low power ARM MCU
Board Power Supply (USB/VIN)5V
Supported Battery(*)Li-Ion, Li-Po
Circuit Operating Voltage3.3V
Digital I/O Pins8
PWM Pins12 (0, 1, 2, 3, 4, 5, 6, 7, 8, 10, A3 - or 18 -, A4 -or 19)
UART1
SPI1
I2C1
Analog Input Pins7 (ADC 8/10/12 bit)
Analog Output Pins1 (DAC 10 bit)
External Interrupts8 (0, 1, 4, 5, 6, 7, 8, A1 -or 16-, A2 - or 17)
DC Current per I/O Pin7 mA
Flash Memory256 KB (internal)
Flash Memory2 MB (external)
Flash Memory for Bootloader8 KB
SRAM32 KB
EEPROMno
Clock Speed32.768 kHz (RTC), 48 MHz
LED_BUILTIN6
Full-Speed USB Device and embedded Host
Antenna Power2 dB
Carrier Frequency433/868/915 MHz
Working RegionEU/US
Length67.64 mm
Width25 mm
Weight32 gr.
