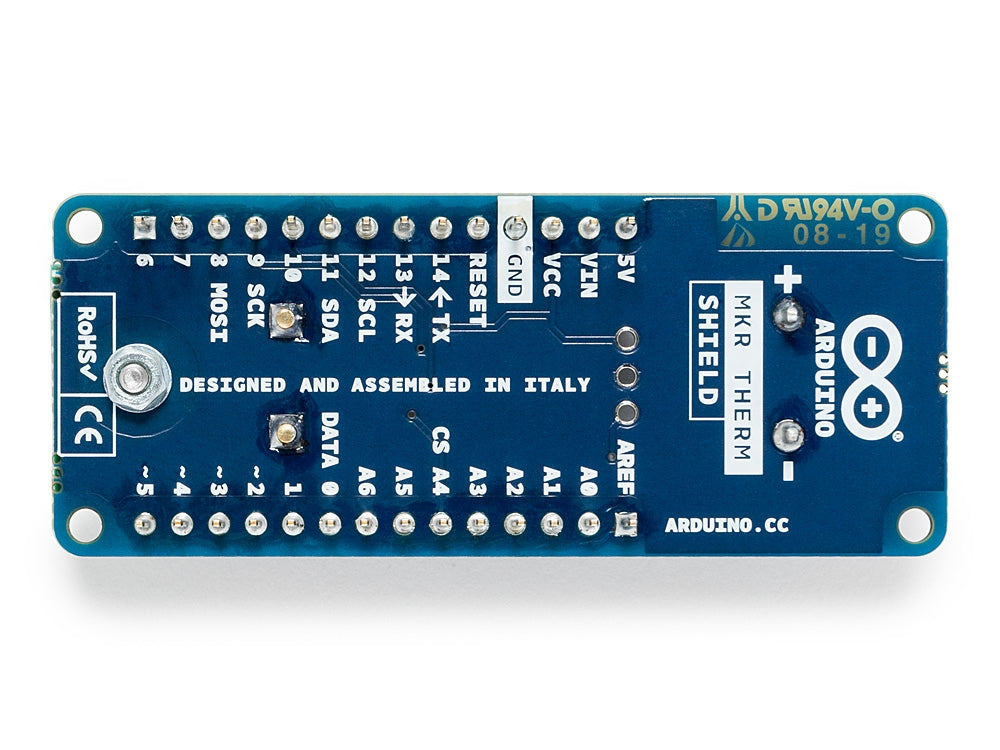

Arduino MKR Therm Shield

Arduino MKR Therm Shield

Regular price $49.00 USD
Regular price Sale price $49.00 USD
Sale Sold out
Shipping calculated at checkout.

The MKR THERM Shield allows a board of the MKR family to acquire temperatures from a thermocouple of type K and a DS18Bxx digital one wire sensor. The Thermocouple is a kind of temperature sensor that offers high accuracy and a wide range of measured temperatures. Its analog nature requires specific interfacing and this shield relies on the MAX31855 thermocouple digital interface.

The two connectors of the MKR THERM Shield allow the usage of Type K thermocouples with or without a plug attached to the metal wires.

The MKR THERM Shield has its own library to read the temperature measured by the thermocouple. You may find further details and a usage example in our Getting Started page.

Specifications

Connectors

K TYPE

DALLAS DS18S20  (to solder)

Screw terminal block

Input Voltage3.3V
Operating Voltage3.3V
Operating Temperature-200°C + 700°C
CommunicationSPI/1Wire
ICMAX31855
Length61 mm
Width25 mm
Weight32 gr.
