Arduino MKR ENV Shield R2

Arduino MKR ENV Shield R2

Regular price $45.00 USD
Regular price Sale price $45.00 USD
Sale Sold out
Shipping calculated at checkout.

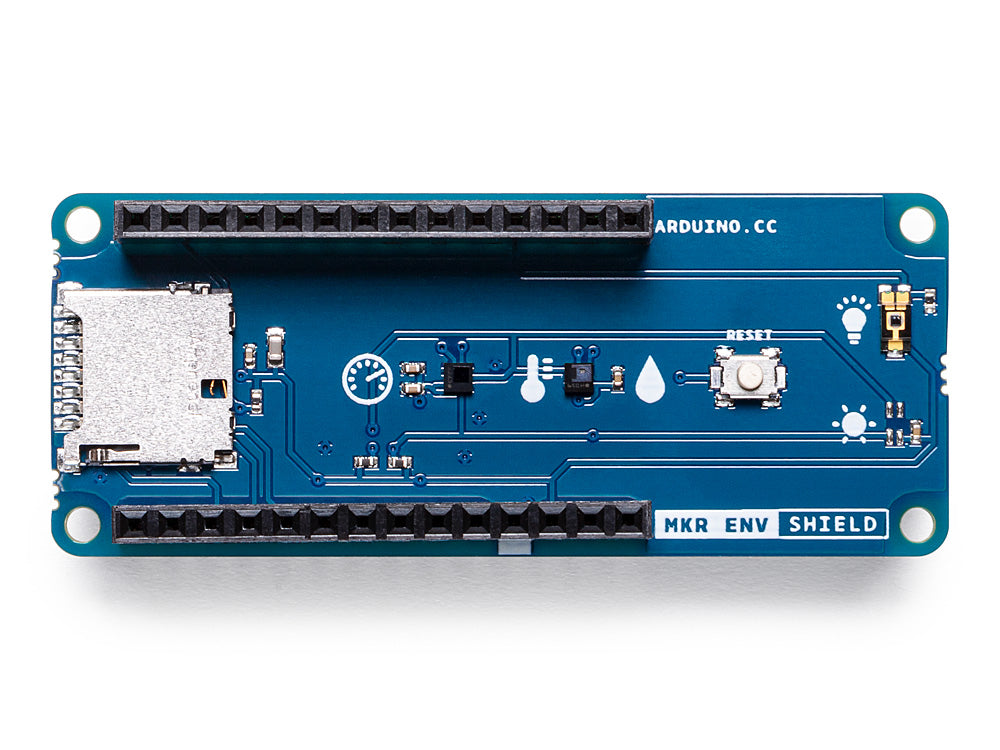

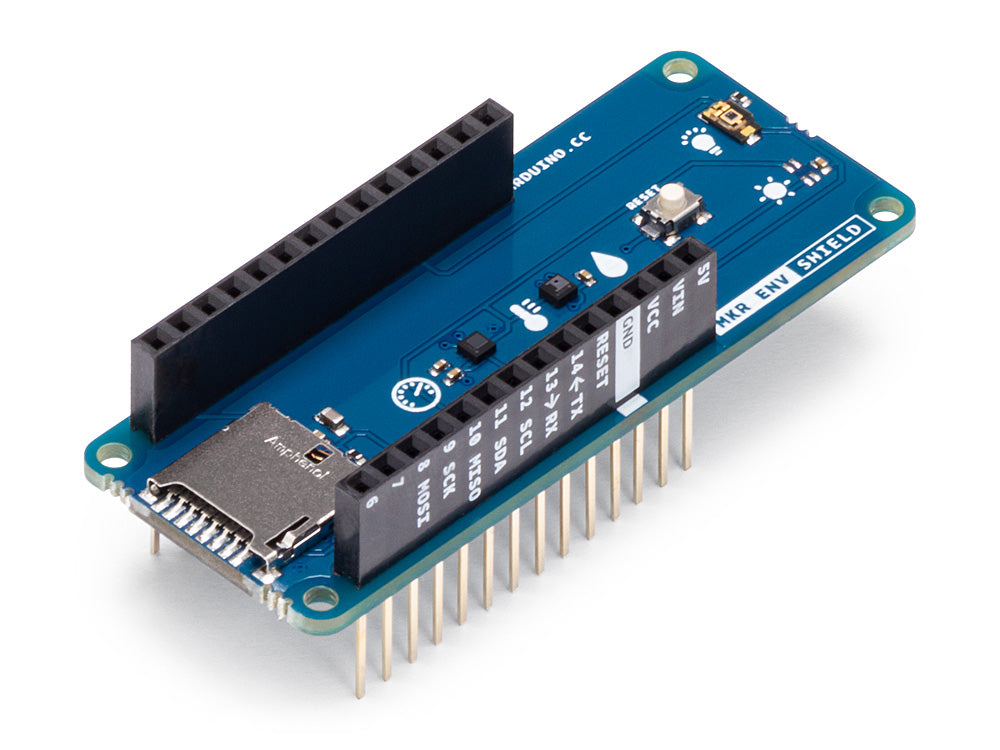

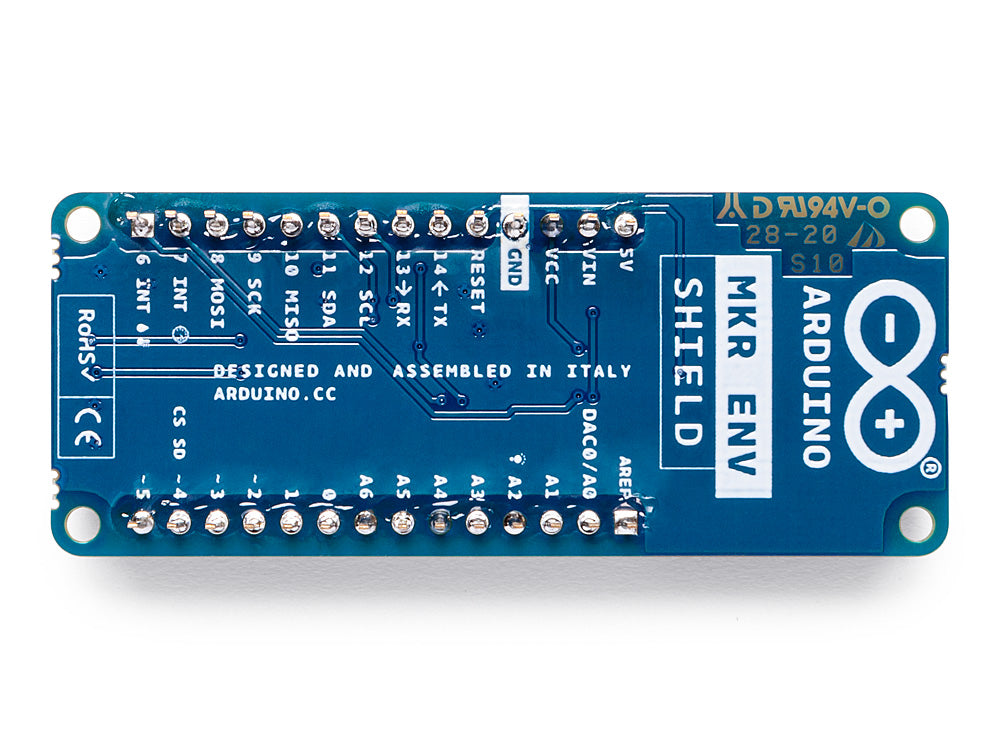

The MKR ENV Shield allows a MKR board to acquire environmental data collected by an array of sensors.
These sensors are of the latest generation and measure:

  • Atmospheric pressure
  • Temperature and humidity
  • Ultraviolet UVA intensity Ultraviolet UVB intensity,

To help you build projects and store the data collected locally, this shield has a slot for a microSD card (not provided).
There is a ready to use library with examples and methods to read values from the different sensors, that provides an easy and smooth integration path.
Sensors used :

  • ST LPS22HB:  atmospheric pressure
  • ST HTS221: temperature and humidity
  • VISHAY TEMT6000: Lux of the ambient.




Input Voltage 3.3V
Operating Voltage 3.3V

Pressure: 260 to 1260 hPa
rH sensitivity: 0.004% rH/LSB
Humidity accuracy: ± 3.5% rH, 20 to +80% rH
0 to 650 Lux

Communication I2C/Analog
Length 61 mm
Width 25 mm
Weight 32 gr.
