Arduino

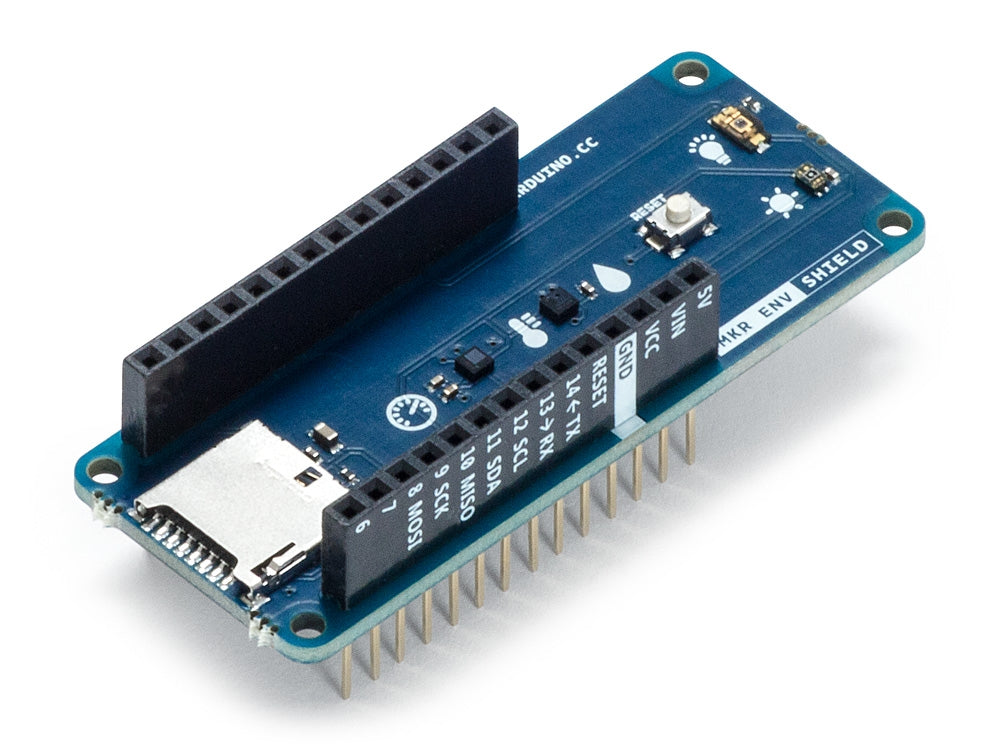

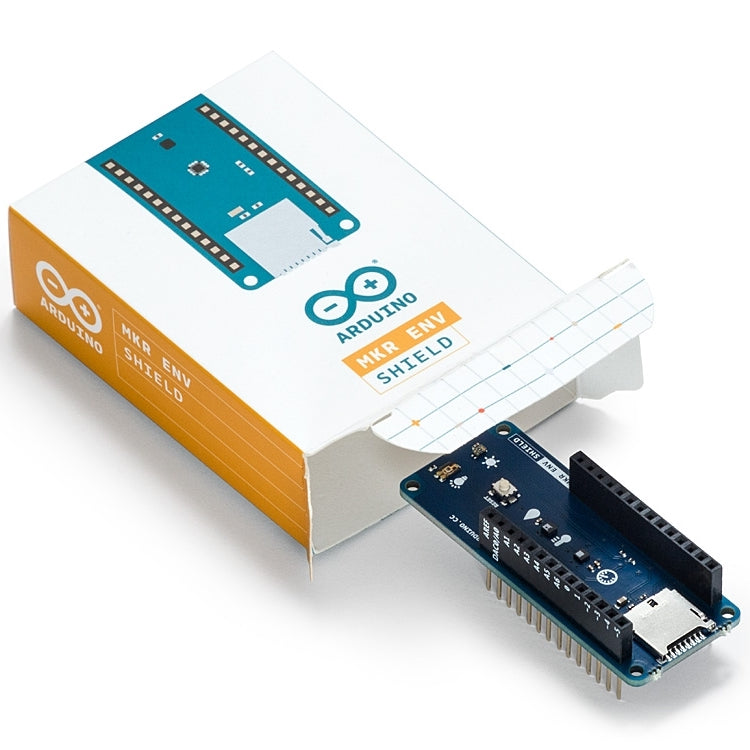

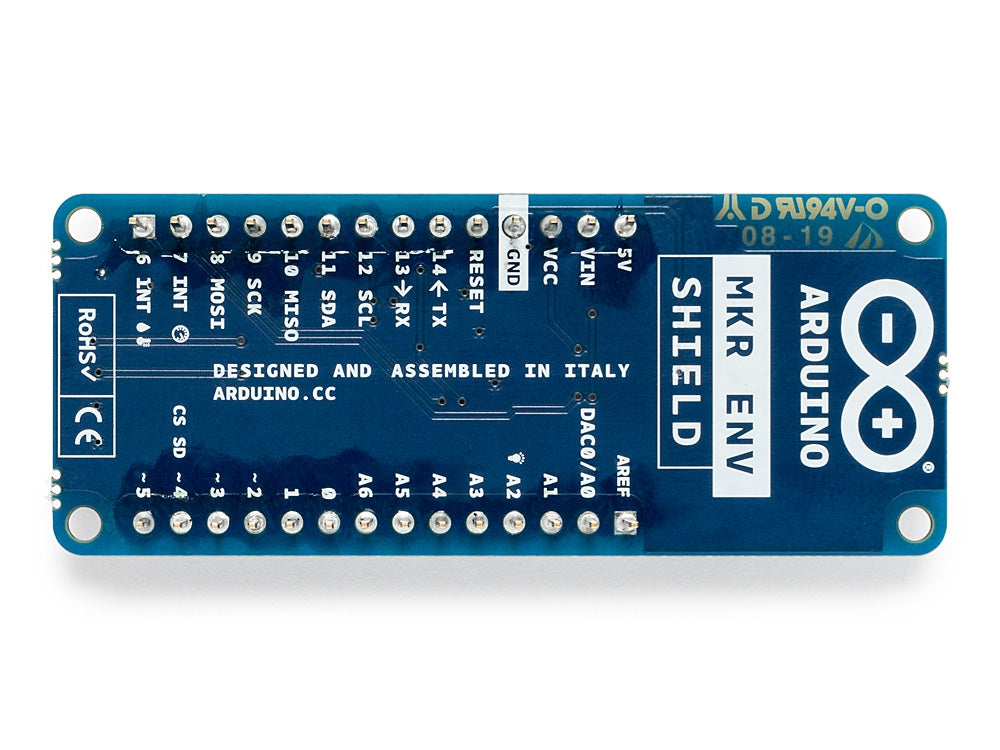

Arduino MKR ENV Shield

Arduino MKR ENV Shield

Regular price $42.00 USD
Regular price Sale price $42.00 USD
Sale Sold out
Shipping calculated at checkout.

The MKR ENV Shield allows a MKR board to acquire environmental data collected by an array of sensors.
These sensors are of the latest generation and measure:

  • Atmospheric pressure
  • Temperature and humidity
  • Ultraviolet UVA intensity Ultraviolet UVB intensity,
  • UV Index (calculated)
  • Light intensity (in LUX)

To help you build projects and store the data collected locally, this shield has a slot for a microSD card (not provided).
There is a ready to use library with examples and methods to read values from the different sensors, that provides an easy and smooth integration path.
Sensors used :

  • ST LPS22HB:  atmospheric pressure
  • ST HTS221: temperature and humidity
  • VISHAY TEMT6000: Lux of the ambient.
  • VISHAY VEML6075: UltraViolet wavelengths  A / B



Specifications

ICs

LPS22HB
TEMT6000
VEML6075

Input Voltage3.3V
Operating Voltage3.3V
Ranges

Pressure: 260 to 1260 hPa
rH sensitivity: 0.004% rH/LSB
Humidity accuracy: ± 3.5% rH, 20 to +80% rH
UVA, UVB and UVBI measurment

CommunicationI2C/Analog
Length61 mm
Width25 mm
Weight32 gr.
