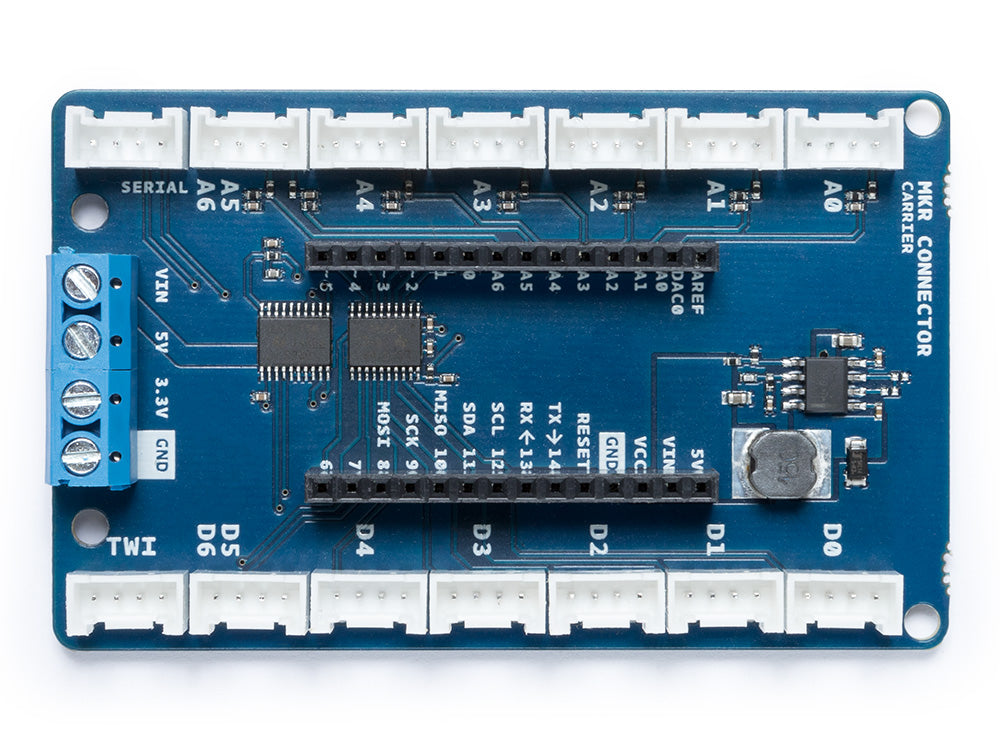

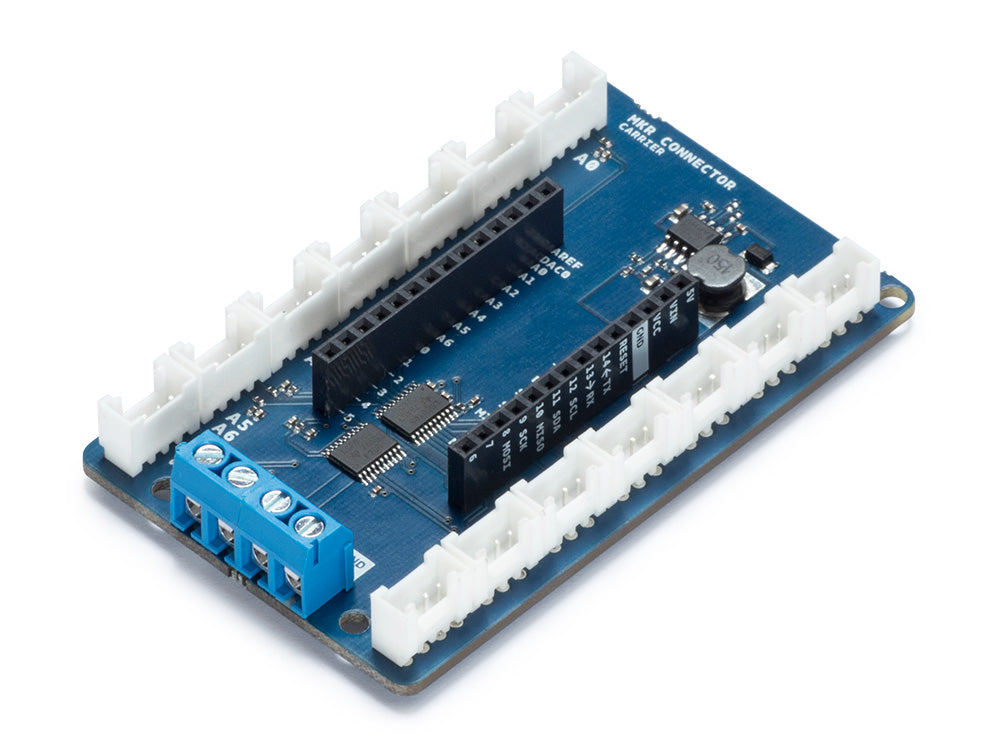

Arduino MKR Connector Carrier, Grove compatible

Arduino MKR Connector Carrier, Grove compatible

Regular price $23.00 USD
Regular price Sale price $23.00 USD
Sale Sold out
Shipping calculated at checkout.

D5,D6 double grove I/OWant to connect several Seeed Studio Grove modules to your Arduino board? The Arduino MKR CONNECTOR CARRIER is the perfect companion for Arduino MKR boards and a Grove ecosystem.

Do you have several components to connect to your project and would rather use connectors instead of soldering? The Arduino MKR CONNECTOR CARRIER provides Seeed Studio's Grove connectors to your MKR board. The MKR CONNECTOR CARRIER shield is an essential tool for rapidly prototyping activity. It allows you to connect easily and quickly sensors with Grove connectors. This shield can allow you to build applications with different IoT connectivities by simply changing the MKR board and with almost no changes to the code.


  • A0, A1, A2, A3, A4: 5V Single Grove Analog Input
  • A5, A6: 5V Double Grove Analog Input
  • D0, D1, D2, D3, D4: 5V Single Grove I/O
  • D5, D6: 5V Double Grove I/O
  • One 5V I2C
  • One 5V UART
  • Input Voltage: 7V - 16V
  • Operating Voltage: 3.3V
