Arduino

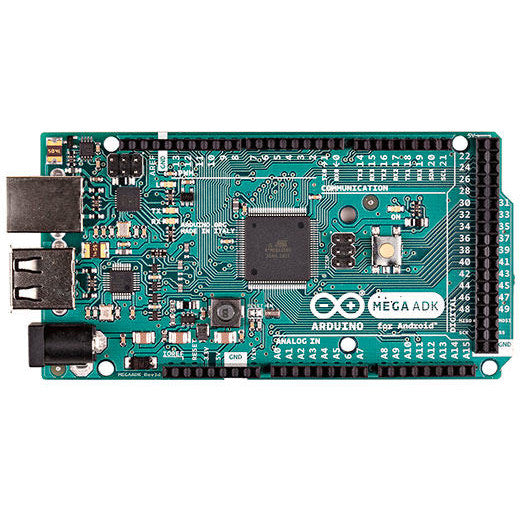

Arduino Mega ADK

Arduino Mega ADK

Regular price $51.00 USD
Regular price Sale price $51.00 USD
Sale Sold out
Shipping calculated at checkout.

The  Arduino Mega ADK (Android Development Kit) is like the Mega with a USB host interface to connect with Android based phones. You can easily create your own Android App to control the Arduino world.

The Arduino Mega ADK is a microcontroller board based on the ATmega2560 (datasheet). It has a USB host interface to connect with Android based phones, based on the MAX3421e IC. It has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button.

The MEGA ADK is based on the Mega 2560. Similar to the Mega 2560 and Uno, it features an ATmega16U2 programmed as a USB-to-serial converter.

The Arduino USB Host Shield can be used with the "USB Host Library for Arduino" hosted by Oleg Mazurov and Alexei Glushchenko from circuits@home, Kristian Lauszus and Andrew Kroll on GitHub (download).

Specifications:

Microcontroller:ATmega2560
Architecture:AVR
Operating Voltage:5 V
Input Voltage:5 - 12 V
Digital I/O Pins:54 (of which 15 provide PWM output)
Analog Input Pins:16
DC Current per I/O Pin:40 mA
Flash Memory:256 KB (of which 8 KB used by bootloader)
SRAM:8 KB
EEPROM:4 KB
Clock Speed:16 MHz
Power Consumption:55 mA
PCB Size:53.3 mm x 101.52 mm
Weight:36 g
Product Code:A000069
