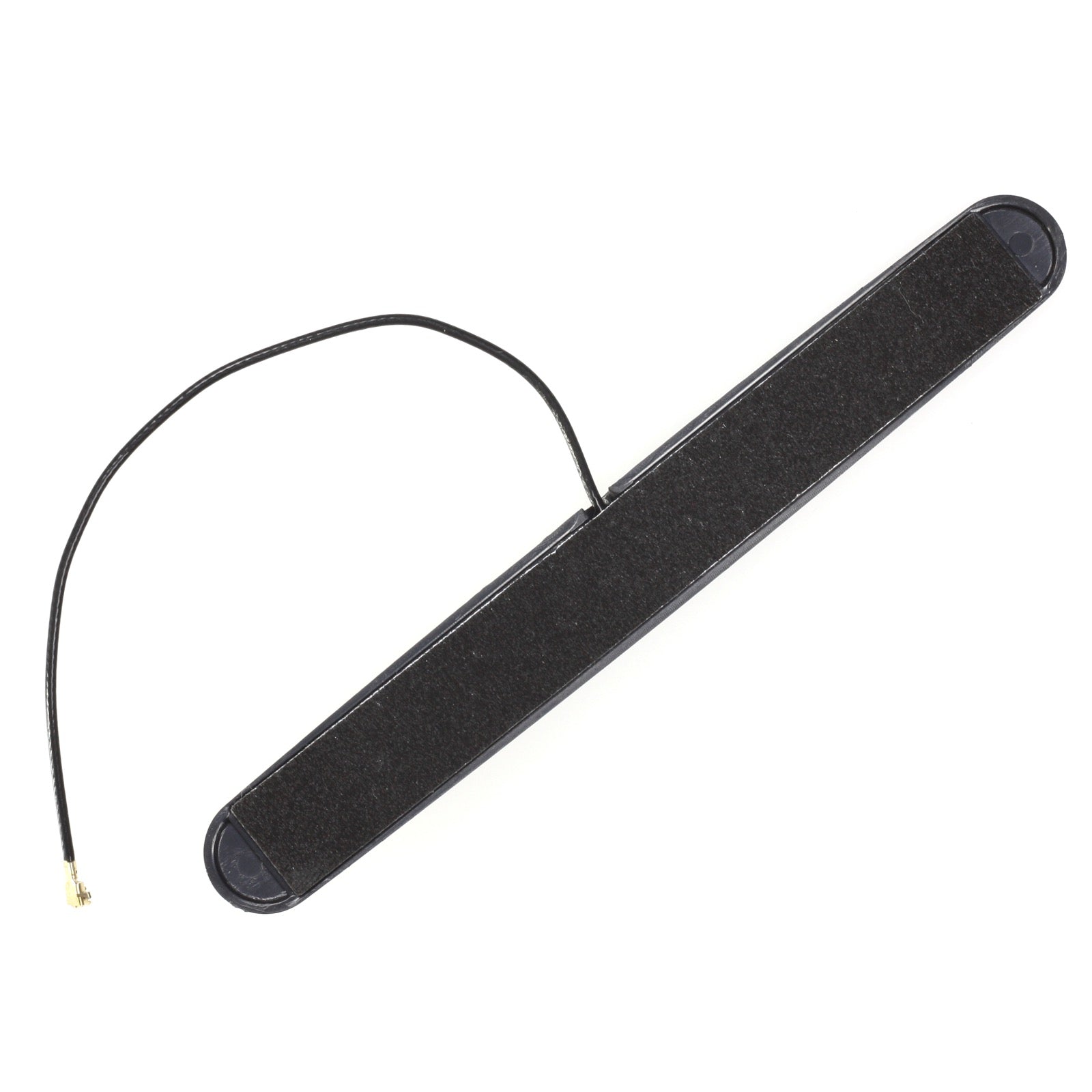

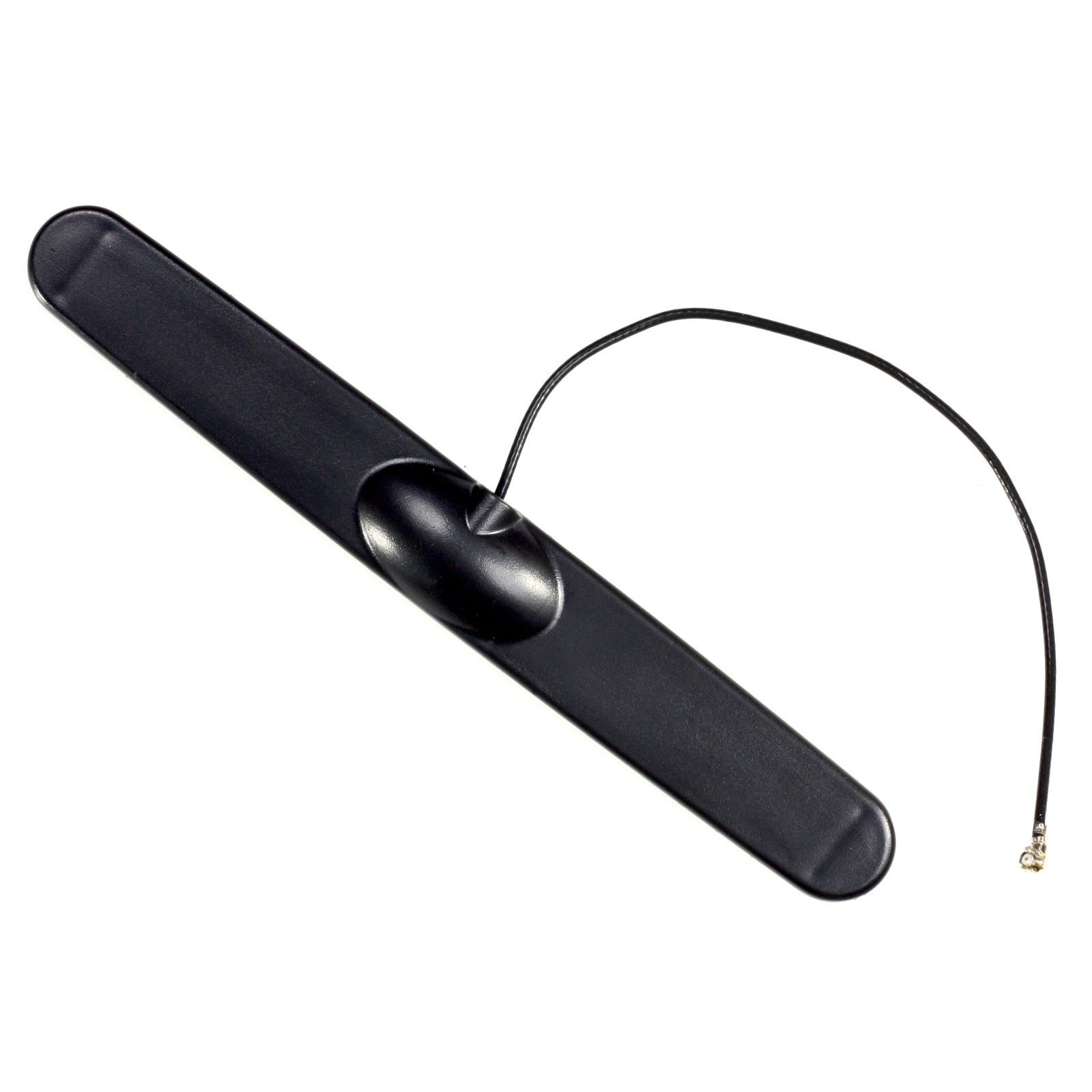

Arduino GSM Dipole Antenna

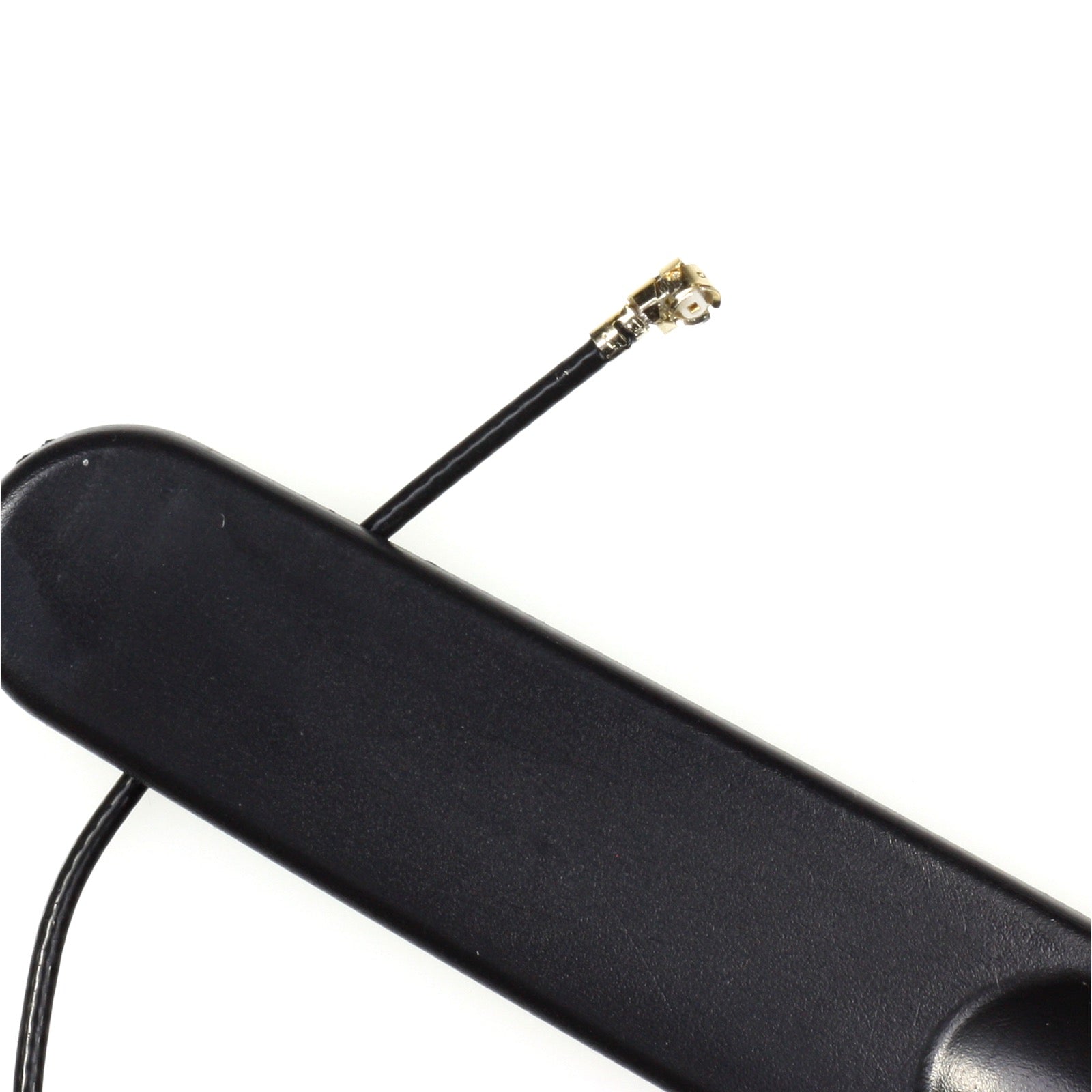

GSM antenna (850/900/1800/1900 MHz) that can be attached to the board with the u.FL connector.

Suitable for MKRFOX1200, MKR WAN and MKR GSM.

Please note: for best result, do not attach the antenna to a metallic surface like car chassis, etc.

Specifications

GSM 850 (824-894 MHZ)

Gain <0 dBi
VSWR <2
Impedance 50 OHM
Polarization linear

GSM 900 (890-960 MHZ)

Gain <1 dBi
VSWR <2
Impedance 50 OHM
Polarization linear

GSM 1800 (1710-1880 MHZ)

Gain <1 dBi
VSWR <2
Impedance 50 OHM
Polarization linear

GSM 1900 (1850-1990 MHZ)

Gain <0 dBi
VSWR <2,2
Impedance 50 OHM
Polarization linear

UMTS (1900-2200 MHz)

Gain <0 dBi
VSWR <2,5
Impedance 50 OHM
Polarisation linear

Dimensions & Al. Dimensions

130x16x5 mm
