Adafruit NeoPixel 1/4 60 Ring, 15 x 5050 RGB LED with Integrated Drivers

Adafruit NeoPixel 1/4 60 Ring, 15 x 5050 RGB LED with Integrated Drivers

Regular price $12.00 USD
Regular price Sale price $12.00 USD
Sale Sold out
Shipping calculated at checkout.

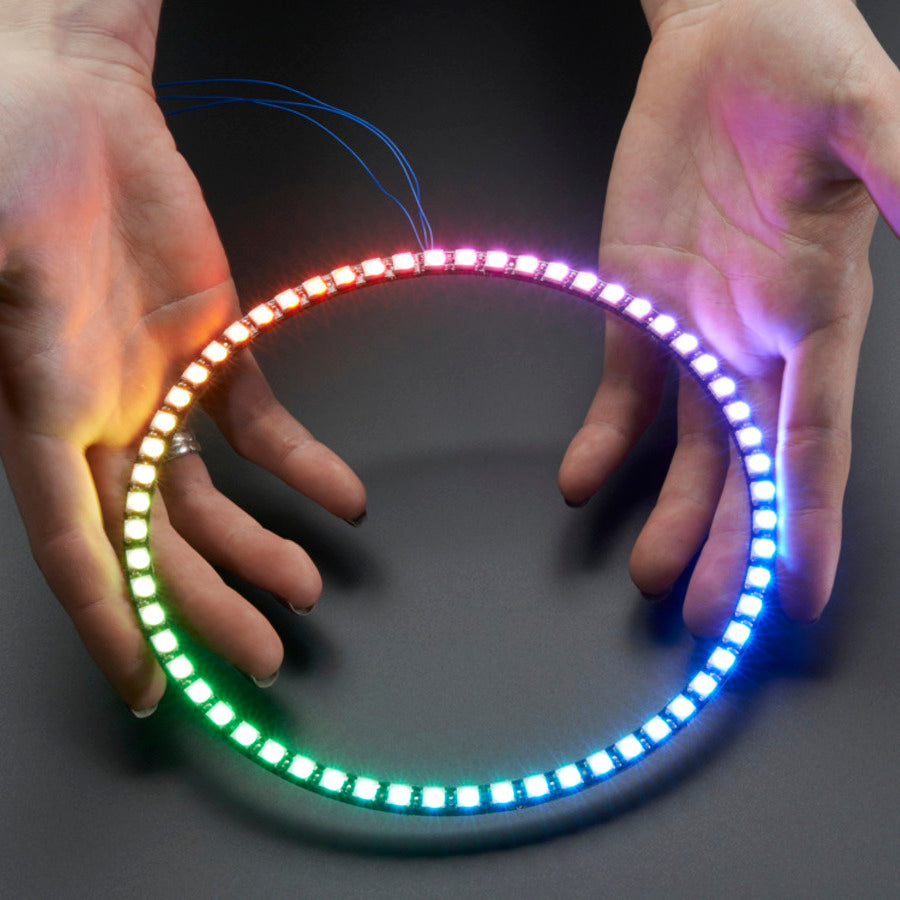

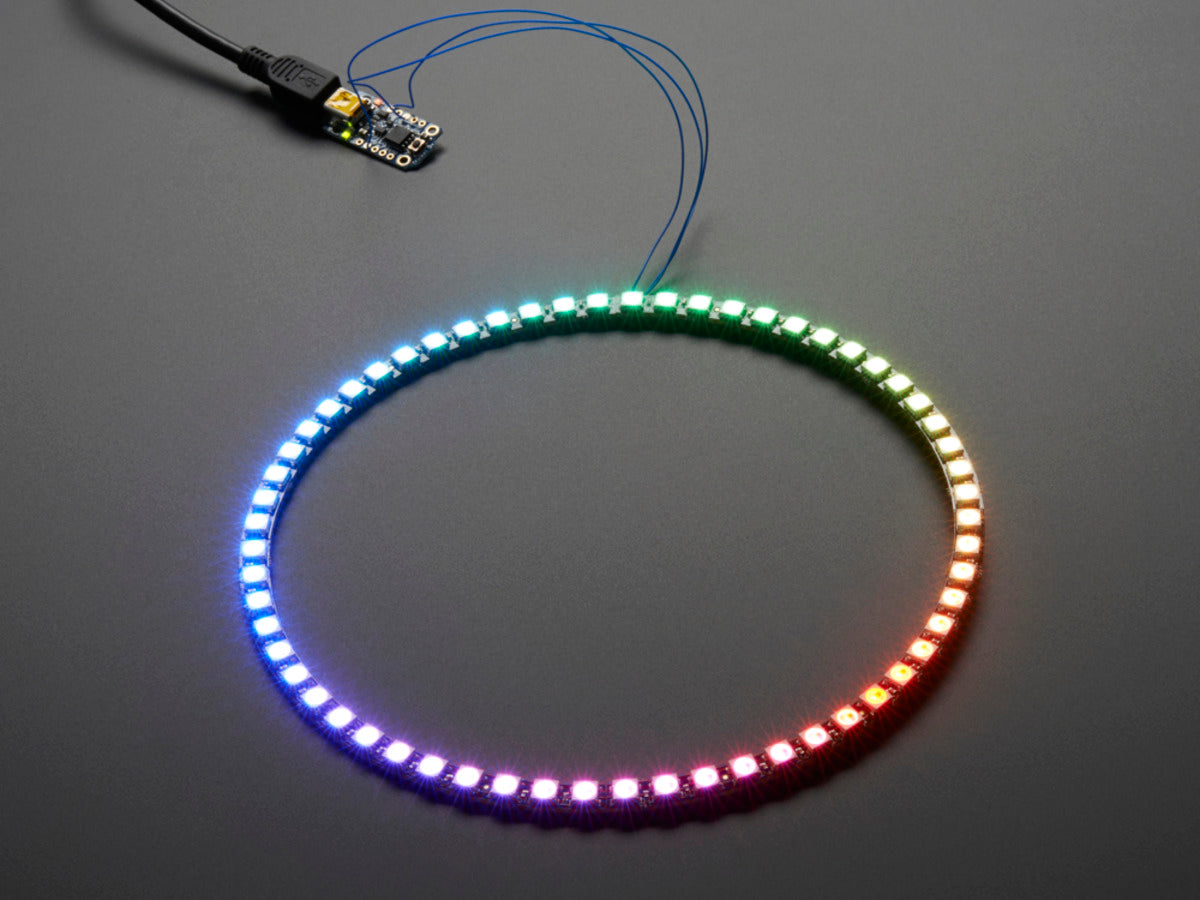

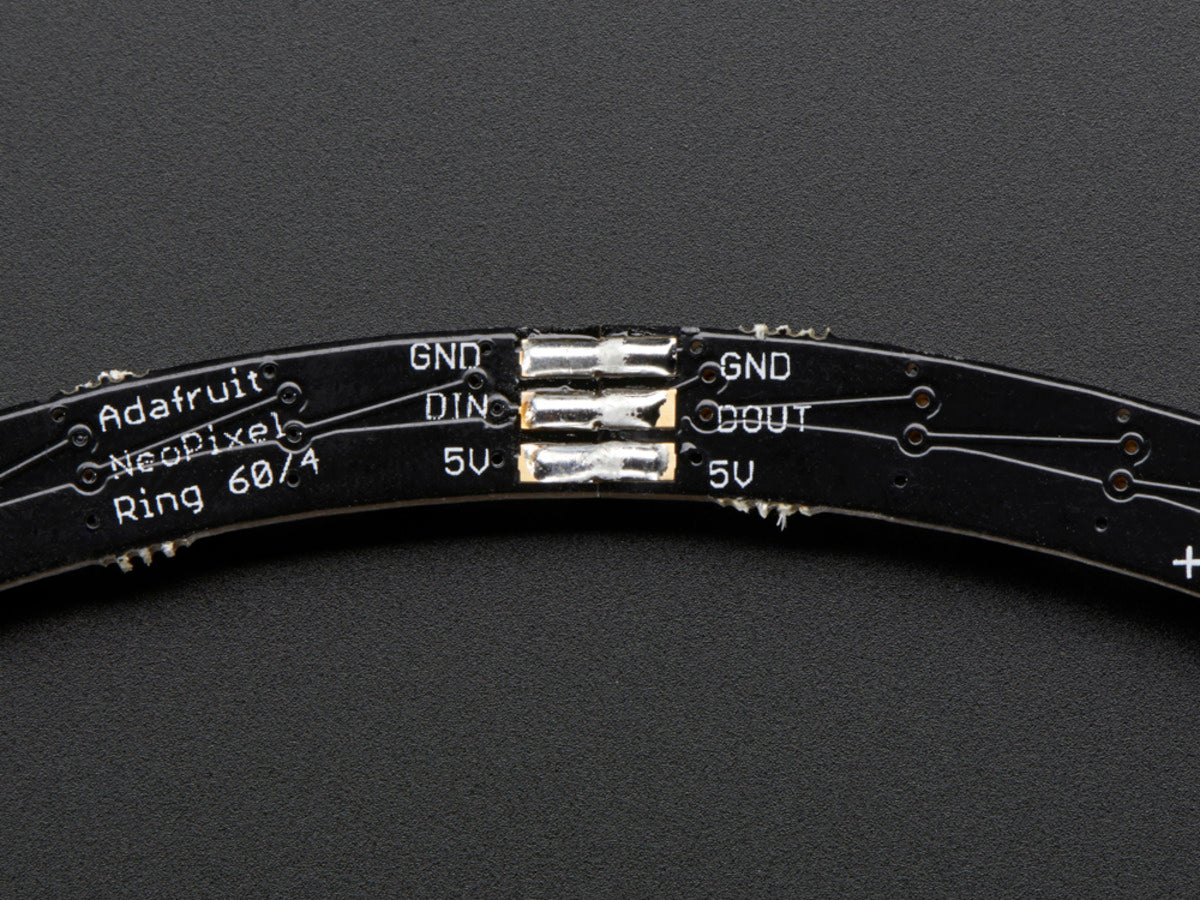

The biggest NeoPixel Ring yet! With four of these you can make a huge ring with 60 ultra bright smart LED NeoPixels are arranged in a circle with a 6.2" diameter. Each order comes with just the quarter ring. Four of this item are required to make a large ring. You will have to solder them together as well, so for the full ring of 60 LEDs, buy four and solder them together! Also, you'll need to give these mechanical backing, the solder joints are only for electrical signal, not strong enough to hold it together

The rings are 'chainable' - connect the output pin of one to the input pin of another. Use only one microcontroller pin to control as many as you can chain together! Each LED is addressable as the driver chip is inside the LED. Each one has ~18mA constant current drive so the color will be very consistent even if the voltage varies, and no external choke resistors are required making the design slim. Power the whole thing with 5VDC and you're ready to rock.

There is a single data line with a very timing-specific protocol. Since the protocol is very sensitive to timing, it requires a real-time microcontroller such as an AVR, Arduino, PIC, mbed, etc. It cannot be used with a Linux-based microcomputer or interpreted microcontroller such as the netduino or Basic Stamp. Our wonderfully-written Neopixel library for Arduino supports these pixels! As it requires hand-tuned assembly it is only for AVR cores but others may have ported this chip driver code so please google around. An 8MHz or faster processor is required.

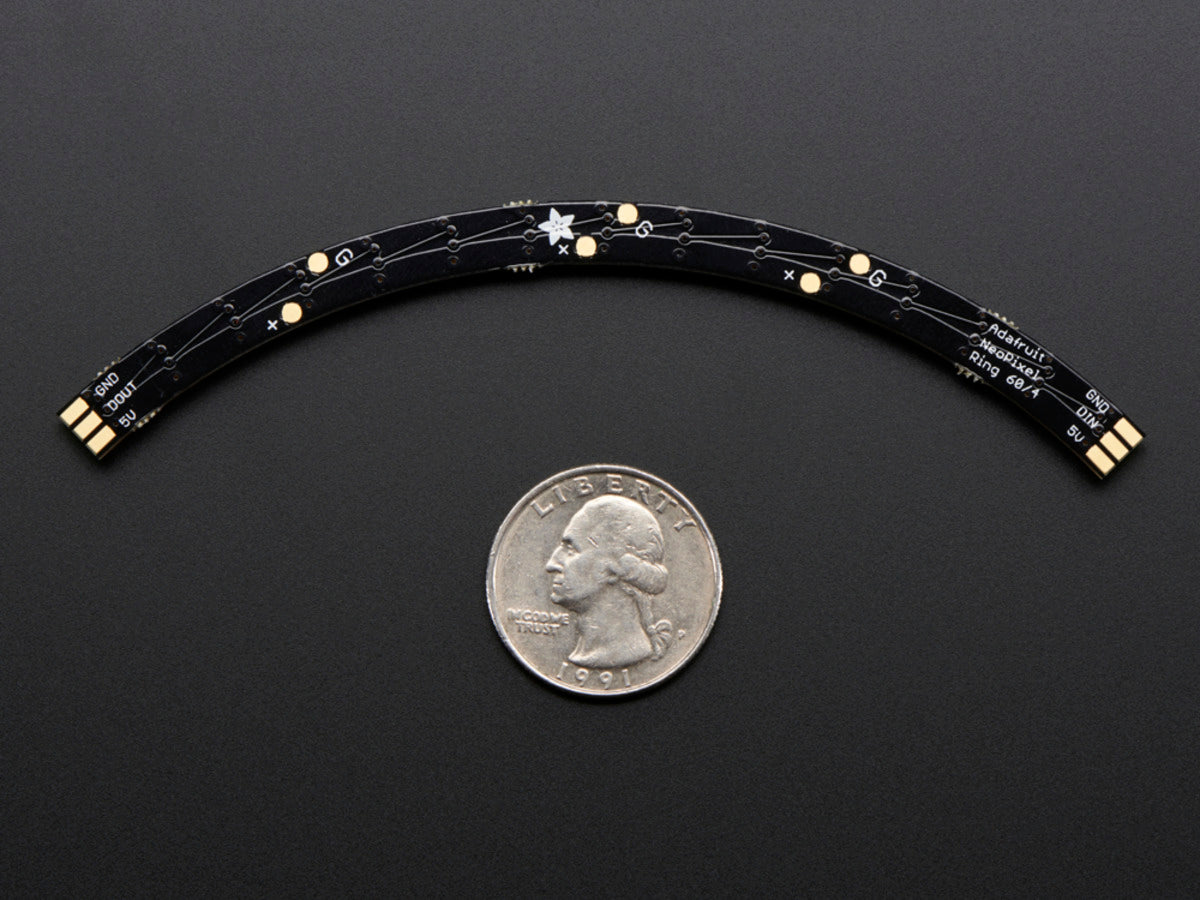

Comes with one quarter ring of 15 x individually addressable RGB LEDs assembled and tested. We recommend you buy four to build the full circle as this is just the 1/4 of the circle.
