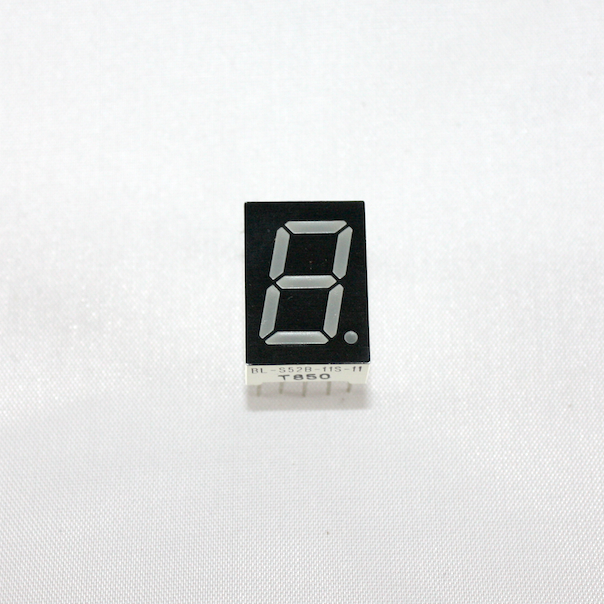

7-Segment-Display, Green LEDs, Common Anode
7-Segment-Display, Green LEDs, Common Anode
Regular price
$1.00 USD
Regular price
Sale price
$1.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Specification:
Input Voltage: | typ. 2.2 V, max. 2.5 V |
DC Current: | typ. 20 mA, max. 30 mA |
Wavelength: | 570 nm |
Operation Temperature: | -40˚C bis +80˚C |
Light Intensity: | typ. 25 mcd |
Material: | GaP / GaP |
Surface: | black |
Lens: | diffuse |

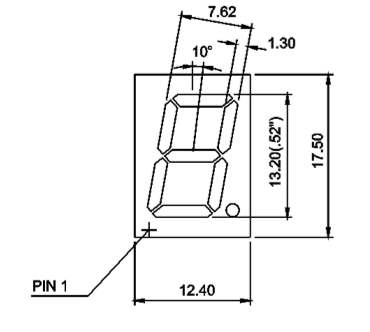

Dimensions without Pins: | 17.5 mm x 12.4 mm x 7.0 mm |
