3.5" TFT Touchscreen, SPI Display for Raspberry Pi

3.5" TFT Touchscreen, SPI Display for Raspberry Pi

Regular price $17.00 USD
Regular price Sale price $17.00 USD
Sale Sold out
Shipping calculated at checkout.

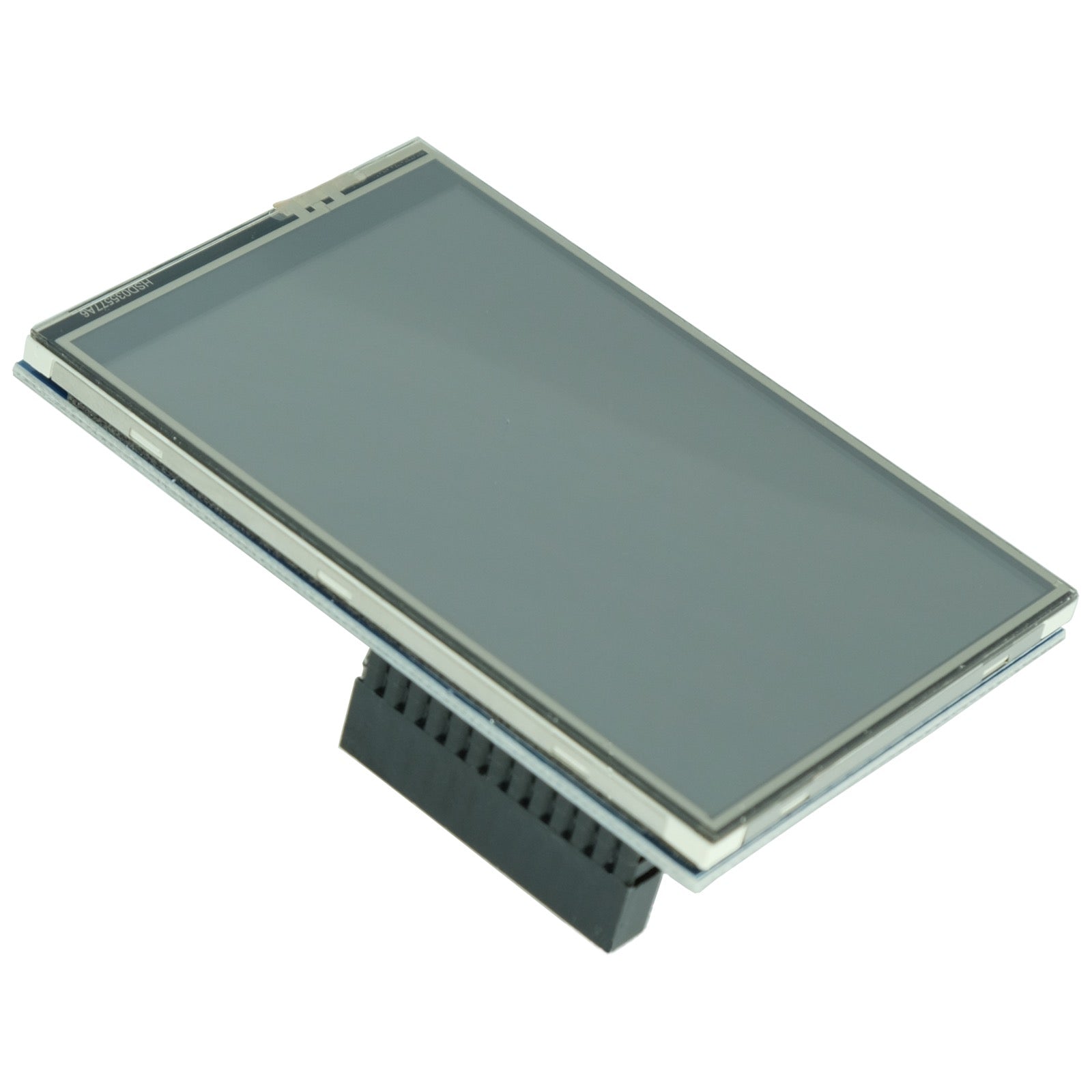

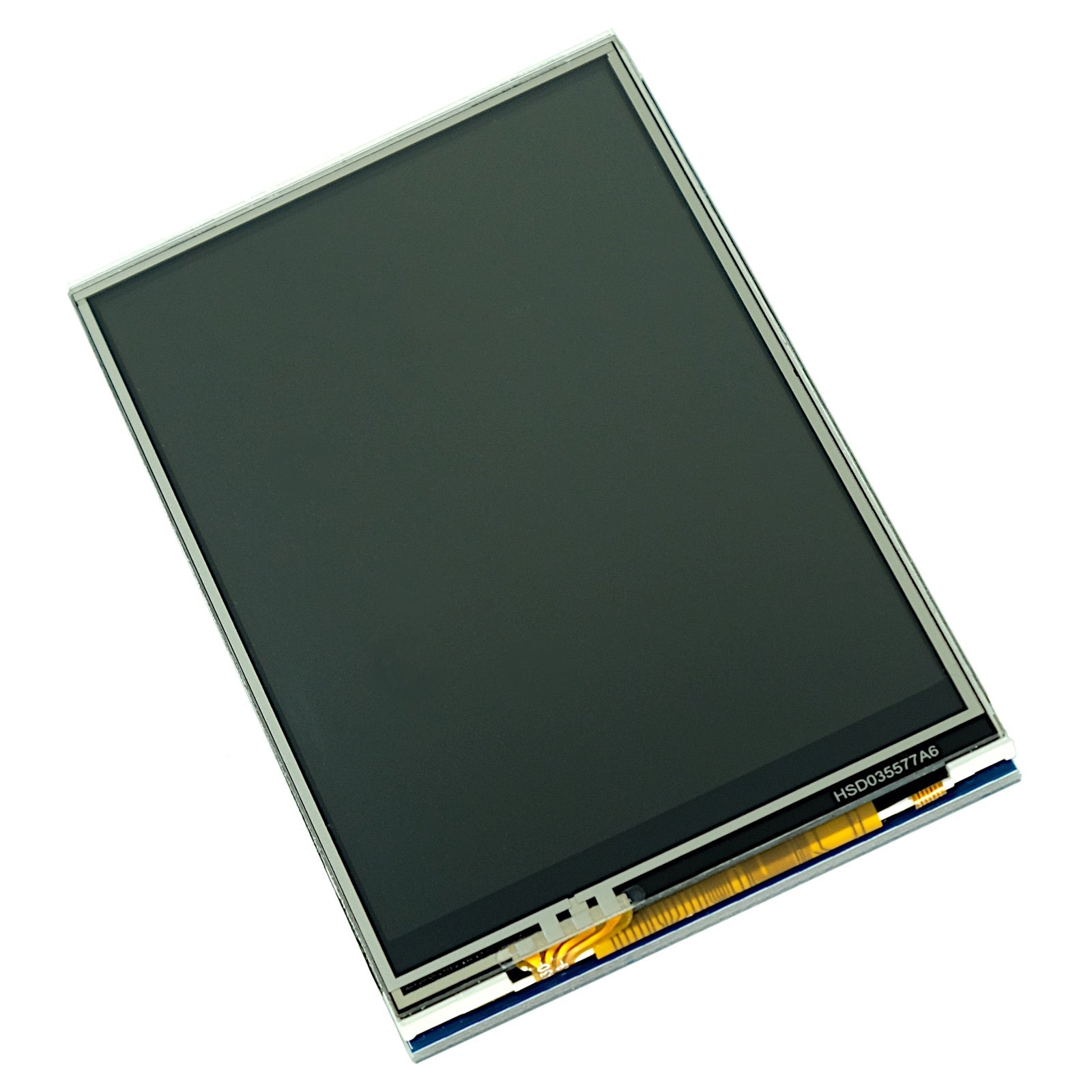

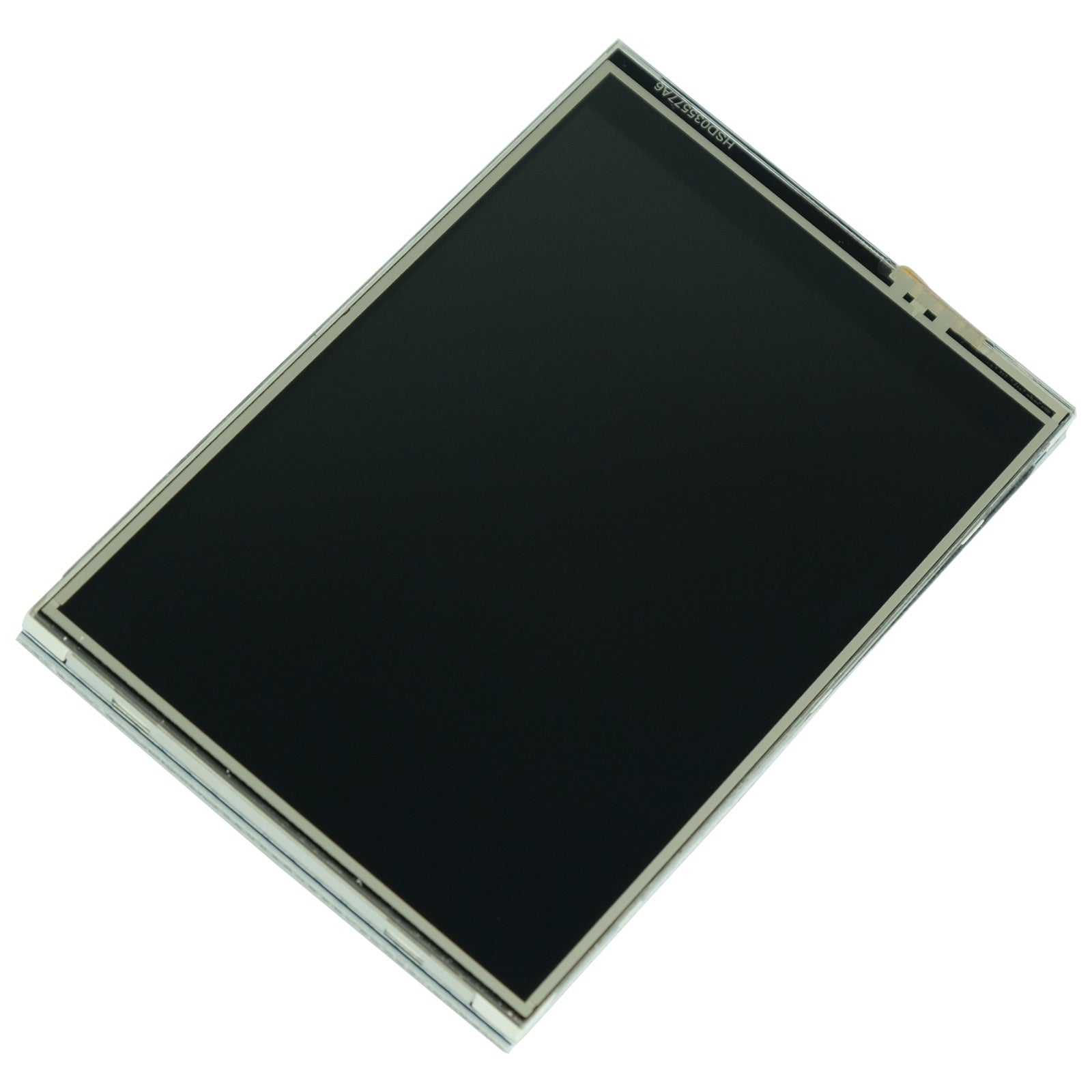

This TFT Touchscreen is the ideal companion for your Raspberry Pi. It has a 3.5" TFT Display with a resolution of 480x320 pixels and a resistive touchpanel attached to it.

It has a 2x13-pin connector and suits all Raspberry Pi Boards: new ones like Pi 2/3/4 or Pi Zero with 2x20-pin connector and also older one like the original first Raspberry Pi. Display and touch are connected to the SPI port of the Raspberry Pi. Touchscreen inputs are possible per finger or with the stylus that is included in the delivery.

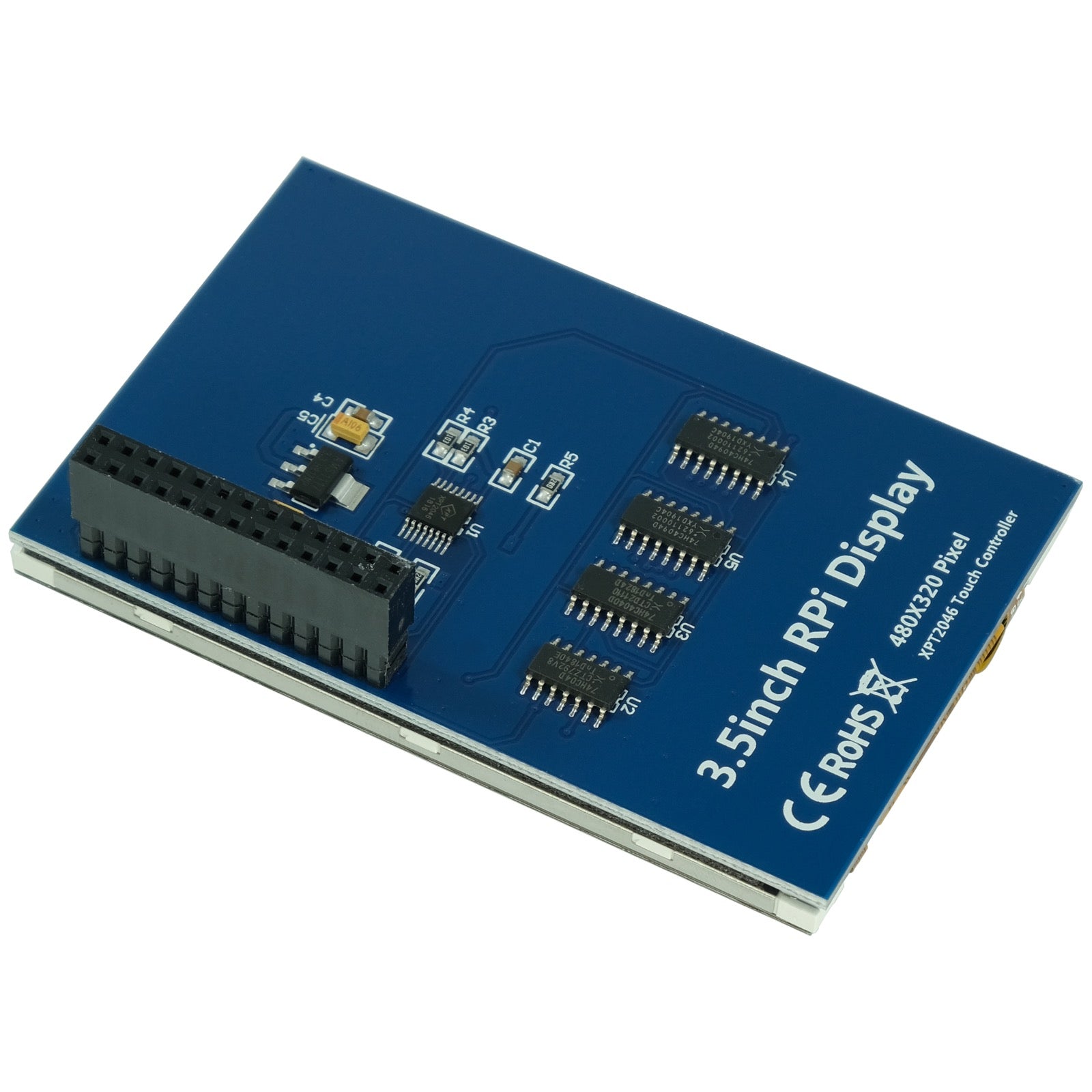

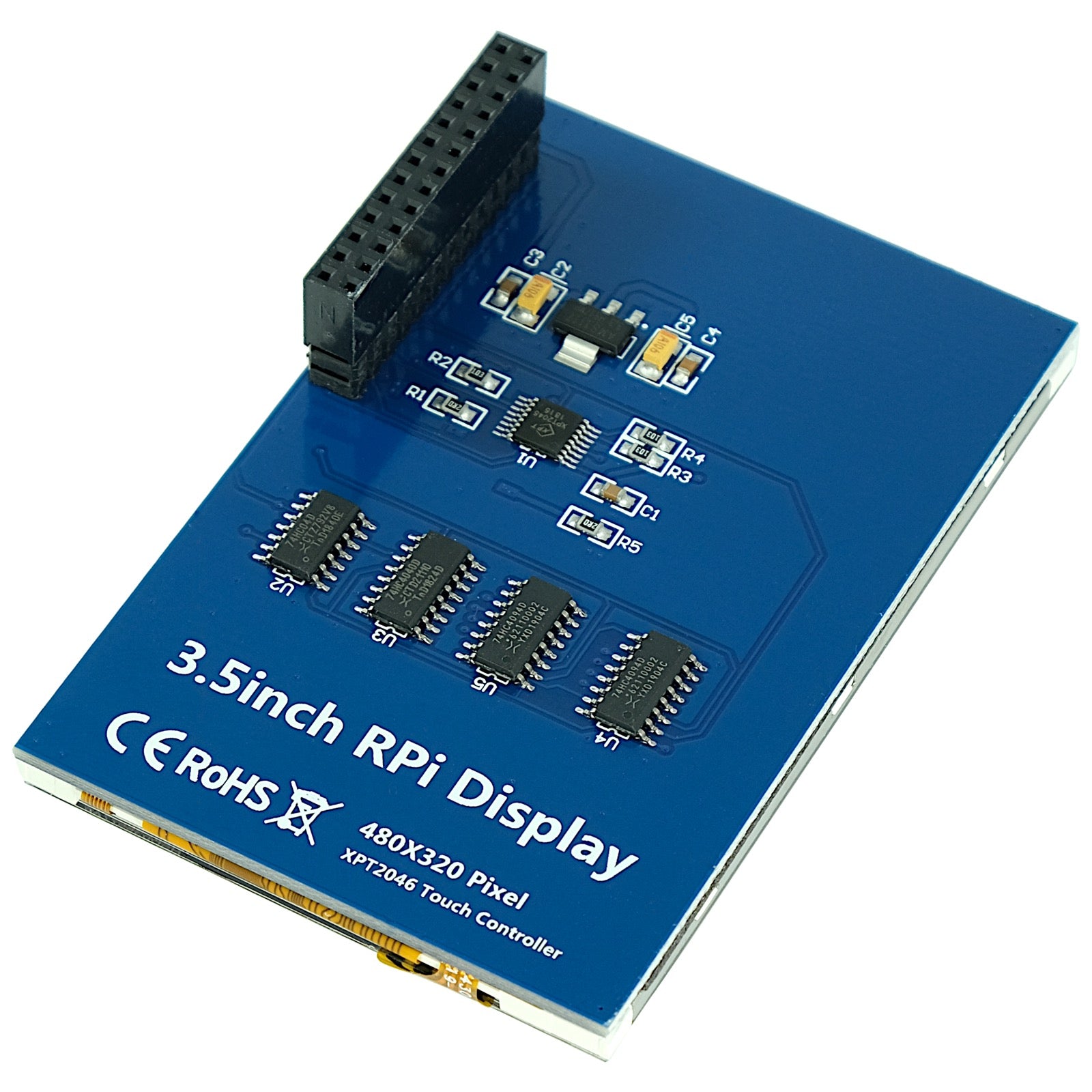

The display module measures ca. 86 mm x 56 mm x 9 mm without header and 86 mm x 56 mm x 20 mm including header. It has an on-board ILI9486 driver chip.

The case for Raspberry Pi 1/2/3 can be bought here.
