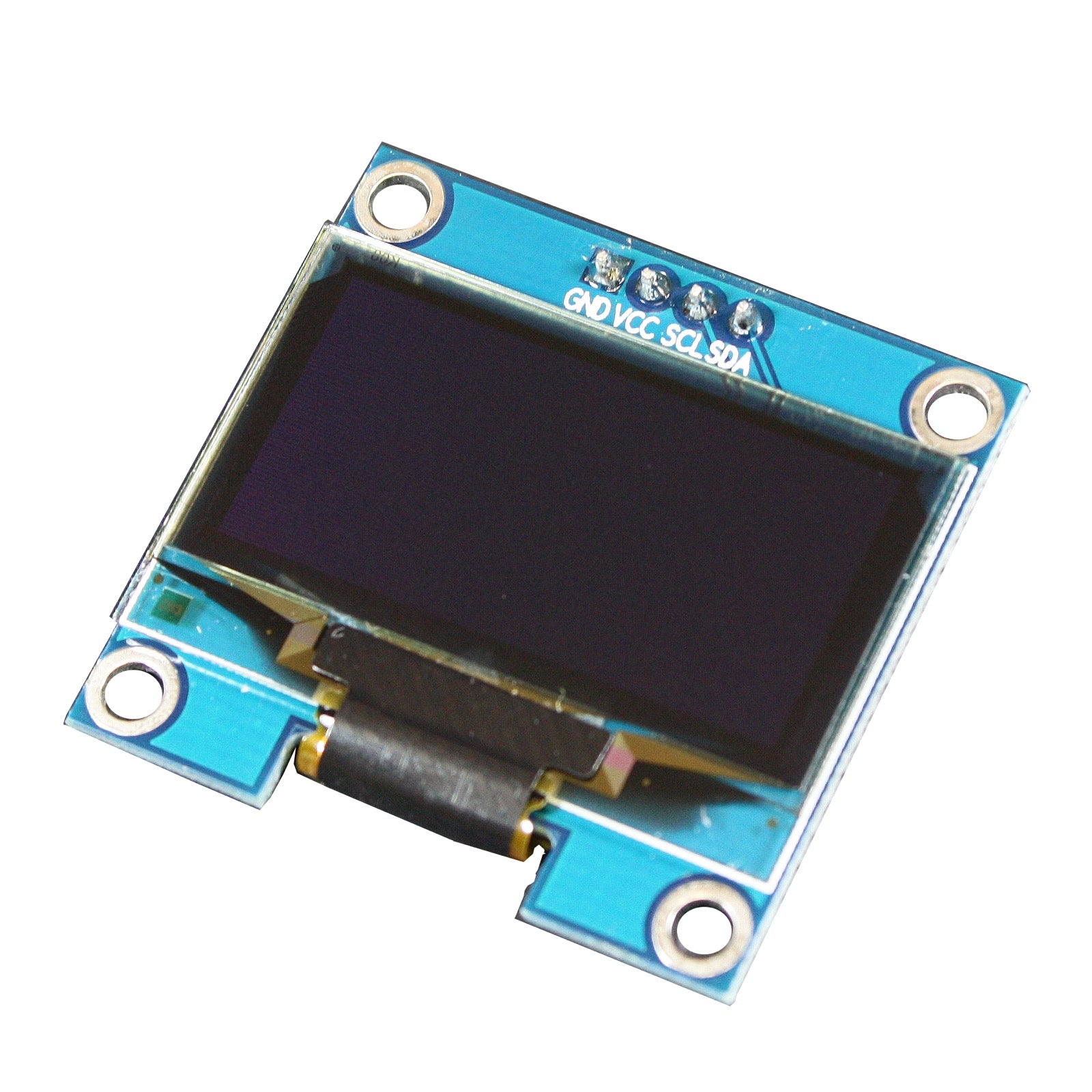

1.3" OLED Display with 128x64 Pixel, I2C, white
1.3" OLED Display with 128x64 Pixel, I2C, white
Regular price
$10.00 USD
Regular price
Sale price
$10.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
The OLED Display can be used to show sensor values, simple graphics and text messages. The display itself is built out of 128x64 white OLEDs - so no additional backlight is needed! This reduces the power consumption and also leads to the high contrast of these displays. The display module is equipped with a SH1106 chipset used for controlling the OLEDs and I2C communication.
You can drive this display with any 3.3V powered microcontroller. Only two I2C pins are needed - perfect for Arduino and Raspberry Pi.
Specification:
| Input Voltage: | 3.3 V |
| Type: | Monochrome |
| Resolution: | 128x64 pixels |
| Interface: | I2C |
| Integrated Controller: | SH1106 |
| Dimensions of the PCB: | ca. 36 mm x 34 mm |
